Product Description

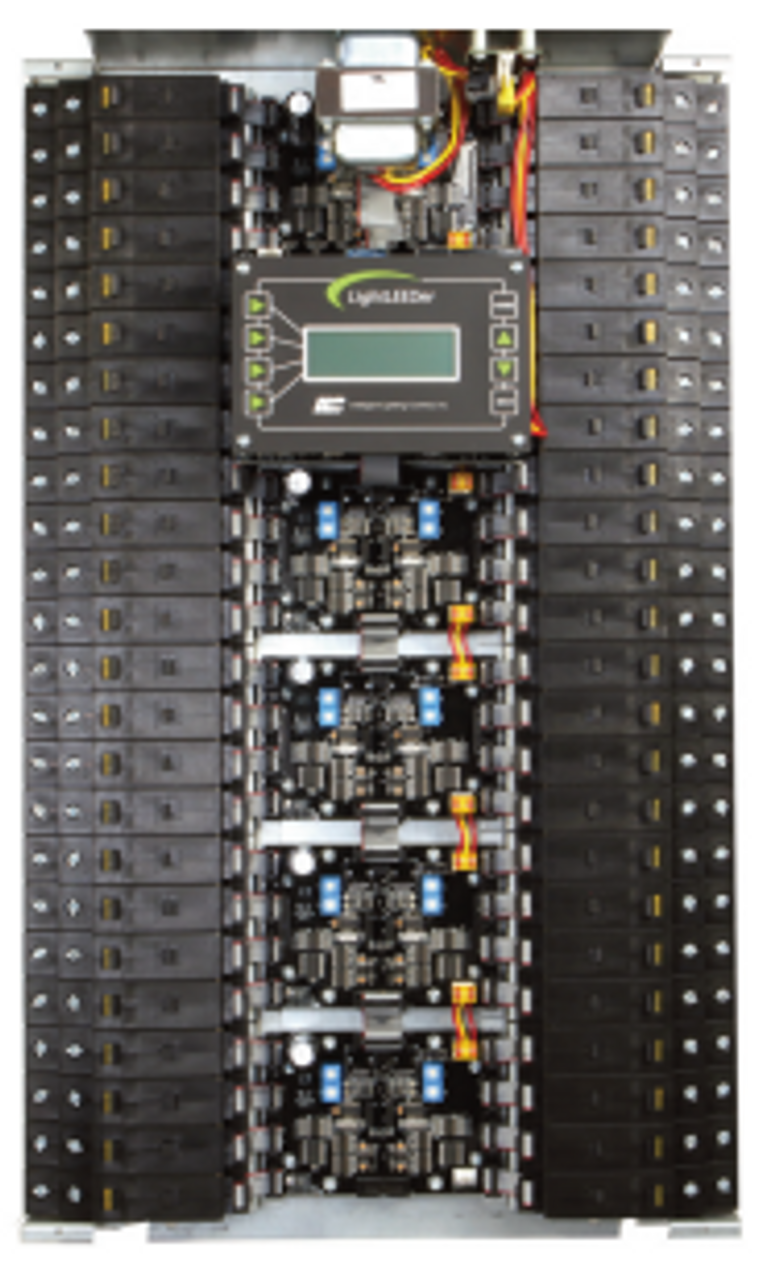

ILC LLDRI-24-347 LightLEEDer Douglas Retrofit Insert - Capacity for 24 R40-1 Relays - 120/347VAC (Includes Door)
Overview
A LightLEEDer Douglas Retrofit Insert can take your present outdated or failing Douglas lighting control system and get it up to today's standards. All of the enhanced features of the LightLEEDer system will be available with this retrofit system from LightSync switches to BAS control. Upgrades are as simple as removing the existing hardware and replacing it with the LightLEEDer hardware provided on a single back plate insert. Reuse existing enclosure, conduit, and high voltage wiring. The LightLEEDer programmable lighting controller retrofit insert provides a dependable, flexible, and energy savings controller featuring the robust Reliant40 relay.
Features
- Made in the USA
- Digital CAT-5 Ready
- Capacity of up to 64 relays
- Relays are the superior Reliant40 design
- Electronics, Relays & Transformer all on one insert
- Installs directly in an existing Douglas enclosure
- Door Included for the enclosure (Except LLDRI-08)
- Conduit and line voltage wiring can be reused
* Existing Douglas 2-wire data line switches and devices cannot be reused
Specifications
Safeguards:
- Power surge and spike suppression up to 123 volts on the 24VAC power input
- Data line surge and spike suppression up to 8kV direct and 15kV thru air
- Memory retention for firmware and programming up to 200 years and electrostatic discharge to 4kV
- Real-Time-Clock time retention 45 days or greater without power
- Internal memory backup and restore
Physical:
- 8 Relay Insert: 17.49" H x 11.89" W x 3.75" D (Use existing cover)
- 24 Relay Insert: 24.19"H x 15.05" W x 3.75" D (Door Incl.: 27"H x 20" W)
- 40 Relay Insert: 31.86"H x 15.05"W x 3.75"D (Door Incl.: 33"H x 20"W)
- 48 Relay Insert: 34.86"H x 15.05" W x 3.75" D (Door Incl.: 39"H x 20" W)
- 64 Relay Insert: 42.87"H x 15.05"W x 3.75"D (Door Incl.: 54"H x 20" W)
- Provided with pre-drilled mounting holes
- High voltage barriers separate Normal/Emergency/Class2 wiring
Electrical:
- 120/277 VAC @ 1 amps or optional 347 VAC
Capacities:
- Up to 64 single pole relays
- 1 to 4 add-on modules
Operating Environment:
- Location: Interior space
- Operating Temperature: 0° to 50° C
- Humidity: 10% - 90% Non-condensing
- Atmosphere: Non-explosive/corrosive
- Vibration: Stationary
