Product Description

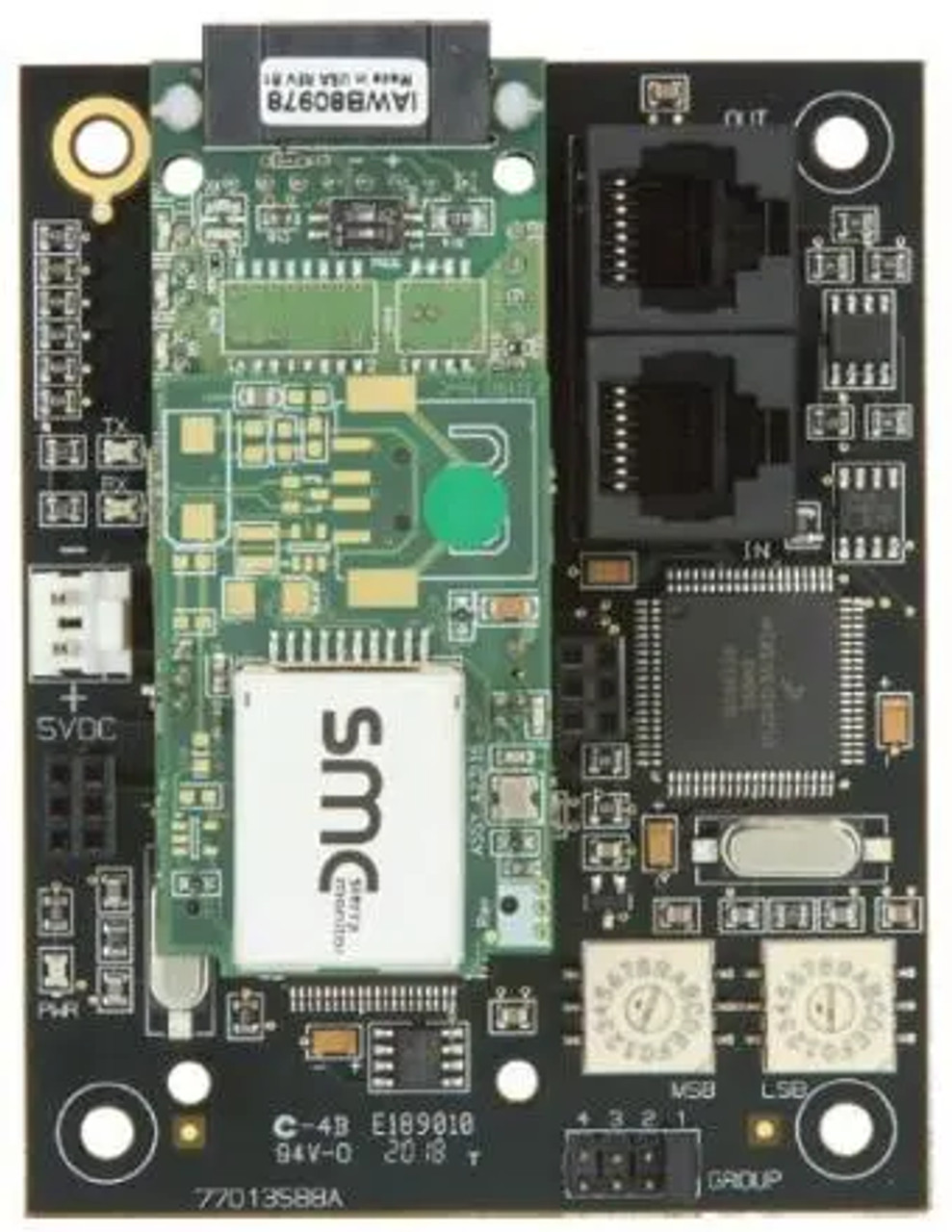

ILC LLABG-1-P LightLEEDer Advanced BACnet-IP Gateway - Group 1 (Node 01 to 40) - Panel Mount
Overview
The LightLEEDer Advanced BACnet-IP Gateway Module (LL-ABG) can be added to any LightLEEDer network to provide output control and input status for a building automation system using BACnet-IP protocol. The Advanced Gateway is an excellent interface option for Integration of LightLEEDer panels and EVO panels with a BAS system. The BAS system will be able to scan for relay status, dimmer output status, scene status, group or preset status and change relay or dimmer state, group state, and trigger a preset or set a dimming scene. The panel scenes can also be set using as a global operation. The BAS can scan the panels LightSync inputs status for closures or see the changes in a LightSync photosensor, dimmer switch or Variable Dimmer Input (VDI) in a register. This interface will provide control for 64 LightLEEDer panels per module and allows up to 4 modules in a LL-Network for larger systems.
Specifications
Physical LL-ABG-P Panel Mount:
- Device Dimensions: 2.75” Wide x 3.5” High
- RJ45 connectors for ILC panel network and BACnet-IP connections
- Backplate’s for installing LL-ABG-P & power converter in LL-ANC or panel interior
- Standard LightSync input device mounting form factor
Electrical:
- 120VAC/5VDC power supply for remote mount
- 24VAC/5VDC power converter for panel mount
Operating Environment:
- Location: Interior space
- Operating Temp.: 0° to 50° C
- Humidity: 10% - 90% Non-condensing
- Atmosphere: Non-explosive/corrosive
- Vibration: Stationary
Certifications and Approvals:
- UL CUL
- Web Server with HTTPS trusted TLS certification.
- BTL Certified by MSA Safety
