Product Description

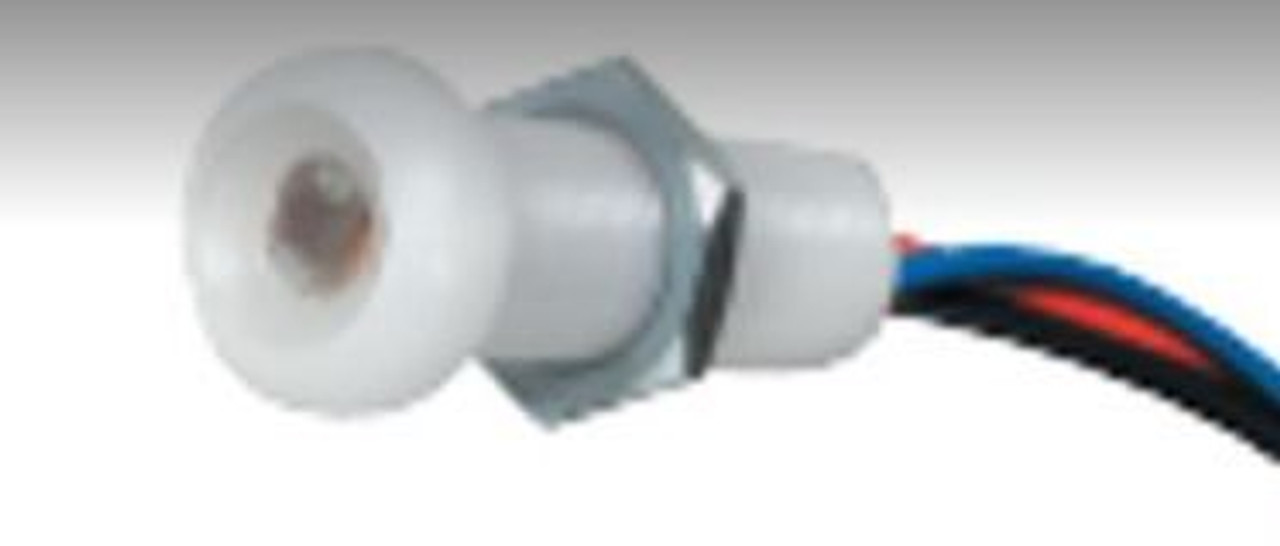

ILC LightSync Digital Photo Sensor Photocell Head, indoor (PC-IND).  Sensor only, no controller, low profile.

The LightSync Photocell Head monitors the light levels and transmits the data to the Photo Sensor Controller. The photocell head is available in 3 styles designed for indoor or outdoor light monitoring. The indoor heads include a standard low profile straight head or a 45 degree head designed for natural daylight monitoring. Both heads can be mounted directly in the ceiling tile, sheet rock or lighting fixture. The outdoor head is provided with a watertight housing that mounts directly to an LB fitting or electrical box. It is designed to handle the harsh outdoor conditions, which include rain, snow, and UV rays.

Features:

• Made in the USA

• Digital CAT-5 Ready

• Light levels monitored indoors or outdoors to 1800 foot candles

• Analog to digital photocell heads

• Photocell heads prewired and color-coded for easy installation

• Available in 3 photocell head styles

• Indoor photocells are low profile and mounts in a ceiling tile, sheet rock, or directly in lighting fixture

• Outdoor photocell mounts with a standard ½” conduit thread

Head Types:

Head types: Indoor: Designed to measure light levels straight in and mounts in a ceiling tile, sheet rock, or directly in a lighting fixture.

Indoor 45 Degree: Designed to measure daylight levels at a 45 degree angle towards windows and mounts in a ceiling tile, sheet rock, or other surfaces.

Outdoor: Weatherproof, UV resistant designed for outdoor locations. Mounts on a standard ½” LB or junction box. It is provided with an integrated hood.

Warranty:  Six year limited warranty offered by ILC, the manufacturer.

Ordering Information:

PC - IND, photo cell head, indoor

PC - IND45, photo cell head indoor 45 degree

PC - OUT, photo cell head outdoor

Specifications by type:

Indoor Photocell Head: • .75” x .25”, ½”-20 x 1.5”threaded mount • White PVC material • 6”wire leads, 22AWG • UV resistant

Indoor 45 Degree Photocell Head: • 1.25” x .65”, ½”-20 x 1.5”threaded mount • White PVC material • 6”wire leads, 22AWG • UV resistant

Outdoor Photocell Head: • 1.30” x 1.18, ½”conduit thread x .75”mount • Encased photocell head protects sensor from the elements • White PVC material • 6”wire leads, 22AWG • UV resistant

Electrical: • Powered from the Photo Sensor Controller

Controller Operating Environment: • Location: Indoor Head: Interior space Outdoor head: Exterior space • Operating Temp.: -35° to 50° C • Humidity: 10% to 100% condensing • Atmosphere: Non-explosive/corrosive • Vibration: Stationary

Certifications: • UL CUL
