Product Description

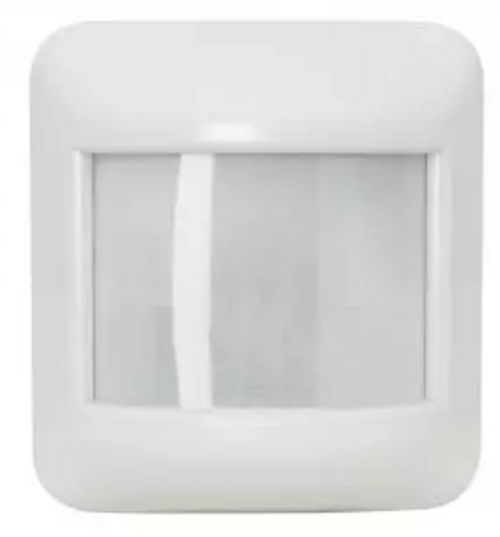

ILC ILC-SWX-421-1-AR Wide View Sensor - Low Voltage - Dual Tech - 120° - 12-24VDC - with Isolated Relay 1A/30VDC
The Intelligent Lighting Controls wide view occupancy sensor enables mounting to a wall, corner, junction box, or conduit. This flexibility reduces contractor installation time and provides a secure and clean finished appearance. ILC products utilize the latest passive infrared technology and digital signal processing techniques to provide unmatched detection performance. Additionally these ILC units are available with an integrated microphone to provide overlapping passive acoustic occupancy detection for rooms with obstructions or where occupant motion will be limited.
FEATURES
- Digital Passive Infrared (PIR) Detection
- Passive Acoustic Detection (Optional)
- 120° Coverage Pattern
- Compact Size and Matte Finish
- Five Contractor Friendly Mounting Methods
- Mounting Nipple Attachment with Integrated Hole Saw
- Convenient Test Mode and Adjustable Time Delays
SPECS
Electrical:
- Operating voltage: 12-24 VAC/VDC
- Current draw: 4mA
- Output: Logic High VDC (Occupied Mode)
- Recommended power packs: ILC-SWX-900
Environmental:
- Operating temp: -10°F to 122°F (14°C to 50°C)
- Relative humidity: 0-95% Non-Condensing, Indoor Use Only
- ROHS Compliant
Physical:
- Size: 2.875” H x 2.75” W x 3.25”D (7.30 x 6.98 x 8.25 cm)
- Weight: 4.75 oz.
- Color: White
Operation:
- Time delays: 30 sec. to 30 min., 10 Minute Default
- Test mode: 5 sec.
Listings:
- Meets ASHRAE Standard 90.1 & CEC Title 24 Requirements
* Dual Tech detection options not available for units with the Hallway coverage option
