Product Description

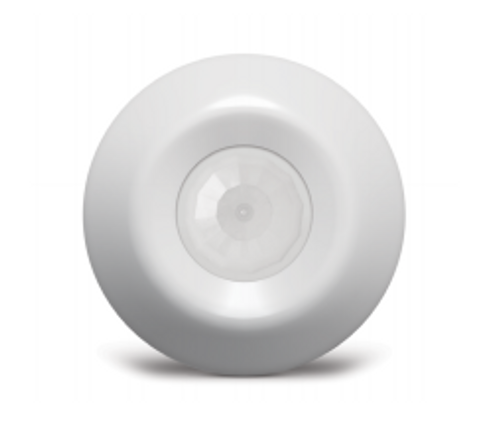

ILC ILC-SWX-211-B Ceiling Sensor - PIR and Photocell - (500 Sq Ft) - Battery Powered Wireless
The Intelligent Lighting Controls family of line voltage ceiling mount occupancy sensors provides a compact control solution capable of switching lighting loads without requiring a powerpack. ILC products utilize the latest passive infrared technology and digital signal processing techniques to provide unmatched detection performance. Additionally ILC units are available with an integrated microphone to provide overlapping passive acoustic occupancy detection for rooms with obstructions.
Sensors detect movement in the infrared energy that radiates from occupants as they move within the devices field-of-view. Once occupancy is identified, the sensor’s internal relay switches power on to the connected lighting. If equipped with passive acoustic detection, the unit’s microphone is then also enabled to further enhance detection while the lights are on. An internal timer is set to keep lights on during brief periods of inactivity, and is reset every time occupancy is signaled by either the passive infrared or acoustic detection technologies. Additionally, optional daylight detection is available that will turn off controlled lighting whenever there is sufficient ambient light in the space.
Applications
- Private Restrooms
- Copy Rooms
- Vestibules
- Small Offices
- Conference Rooms
- Break Rooms
- Walk-In Closets
Features
- Digital Passive Infrared (PIR) Detection
- Passive Acoustic Detection (optional)
- 360° Coverage Pattern
- Field Changeable Lens
- Compact Size and Matte Finish
- Convenient Test Mode and Adjustable Time Delays
- Electronically Timed Switching Designed for LED Fixture Control
- Optional Ambient Light Override (Photocell)
