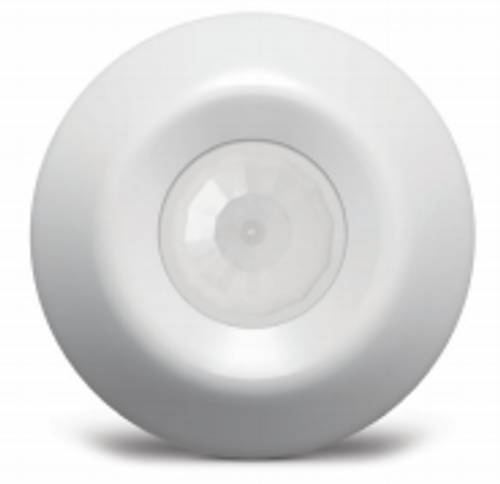

ILC ILC-SWX-202-1-HE Ceiling Mount Occupancy Sensor - Humid Environment
The Intelligent Lighting Controls family of ceiling mount occupancy sensors provides a range of control solutions for spaces with finished ceilings (e.g., tiles, sheetrock, and plaster). Preferred by contractors for their simple, yet flexible, mounting methods, ILC sensors reduce installation time and fuss. ILC products utilize the latest passive infrared technology and digital signal processing techniques to provide unmatched detection performance. Additionally, ILC units are available with an integrated microphone to provide overlapping passive acoustic occupancy detection for rooms with obstructions or where occupant motion will be limited. Enhanced options for this sensor family include a photocell that will override lights off if sufficient ambient light is present and an isolated relay for interfacing external systems (e.g., HVAC/BAS).
Sensors detect movement in the infrared energy that radiates from occupants as they move within the devices field-of-view. Once occupancy is identified, the sensor signals a connected power/relay pack to switch on the connected lighting. If equipped with passive dual technology (PIR/Acoustic), the unit’s microphone is then also enabled to further enhance detection while the lights are on. An internal timer is set to keep lights on during brief periods of inactivity, and is reset every time occupancy is signaled by either the passive infrared or acoustic detection technologies.
Features
- Digital Passive Infrared (PIR) Detection
- Passive Acoustic Detection (Optional)
- 360° Coverage Patterns
- Compact Size and Matte Finish
- Four Contractor Friendly Mounting Methods
- Mounting Nipple Attachment with Integrated Hole Saw
- Convenient Test Mode and Adjustable Time Delays
- Optional Photocell & Isolated Relay
Specs
ELECTRICAL
- OPERATING VOLTAGE
- 12-24 VAC/VDC
- CURRENT DRAW
- 2mA (PIR models) 10mA (Dual Tech. models)
- OUTPUT
- Logic High VDC (Occupied Mode)
- RECOMMENDED POWER PACK
- ILC-SWX-900 Series
- ISOLATED RELAY RATING
- 1A @ 30 VDC/VAC
PHYSICAL
- SIZE
- 4.00” Diameter x 1.25” H (10.16 x 3.17 cm)
- WEIGHT
- 4.75 oz COLOR
ENVIRONMENTAL
- OPERATING TEMP
- 32°F to 122°F (0°C to 50°C)
RELATIVE HUMIDITY
- 0-95% Non-Condensing, Indoor Use Only
OPERATION
- TIME DELAYS
- 30 sec to 30 min 10 Minute Default
- TEST MODE
- 5 sec
CODE COMPLIANCE
- Sensors can be used to meet ASHRAE 90.1, IECC, & Title 24 energy code requirements
