Product Description

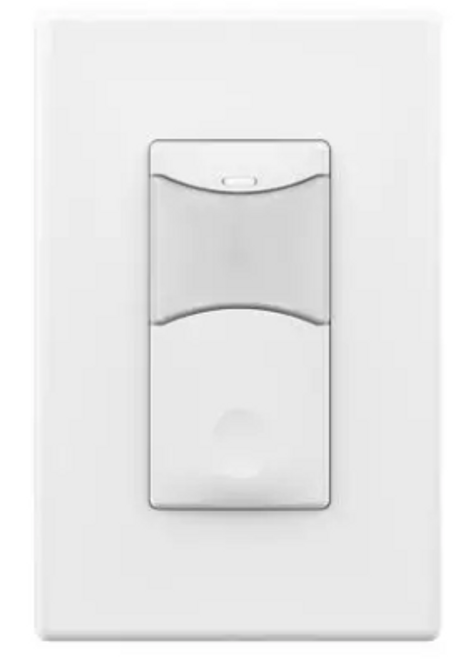

ILC ILC-SWX-123-XX Wall Switch Sensor - Line Voltage - Dual Tech - Manual On
The Intelligent Lighting Controls family of wall switch occupancy sensors provides a simple yet cost effective lighting control solution for many retrofit applications. Designed with contractors in mind, the ILC wall switch sensor is significantly shallower than typical sensors, resulting in less crowed wall boxes. Additionally, versatile wiring enables usage with or without a neutral and allows reversal of line and load connections. ILC products utilize the latest passive infrared technology and digital signal processing techniques to provide unmatched motion detection performance. These units are also available with an integrated microphone to provide overlapping passive acoustic occupancy detection for rooms with obstructions or where occupant motion is limited.
FEATURES
Electrical features:
- Interchangeable Line & Load Wires - Impossible to Wire Backwards
- Accommodates Neutral (3-Wire) and No-Neutral (2-Wire) Installation
- Electronically Timed Switching Ensures Long Relay Life
- Compatible with LED, Fluorescent and Incandescent Lighting
- Meets NEC Guidelines Regarding Current Leakage
Physical features:
- Enclosure is 25-40% Shallower than other Sensors (< 1” Depth into Wallbox)
- Unique Bat-Wing Shaped Lens Provides Enhanced Peripheral Detection
- Self-Grounding Mounting Strap
- Modern Look and Intuitive Easy-Tap Button
- Rugged Vandal Resistant Lens
- Settings are Adjustable Without Removing Cover Plate
Operational features:
- Wall-To-Wall Passive Infrared Small Motion Detection
- Passive Acoustic Detection (Optional) - Prevents False Offs when No Motion is Present
- 100% Passive Detection Methods - No Interference Potential from External Devices
- Ambient Daylight Override Mode Increases Energy Savings (Optional)
- Configurable Time Delays and Operating Modes
- Blue Locator LED when Lights are Off
SPECS
Electrical:
- Operating voltage: 120/277 VAC, 50/60 Hz
- Load ratings: MAX: 800W @ 120VAC, 1200W @ 277VAC, MIN: None
- Load types: LED Driver/Lamps, CFL, Electronic/Magnetic Ballasts (Fluorescent), Tungsten (Incandescent)
Environmental:
- Operating temp: 32°F to 122°F (0°C to 50°C)
- Relative humidity: 0-95% Non-Condensing, Indoor Use Only
Physical*:
- Size: 2.74”H x 1.68”W x 1.39”D (6.96 x 4.27 x 3.53 cm), Not Including Mounting Strap
- Weight: 4.5 oz
- Mounting: Single Gang Switch Box, *2-pole solution includes two units (e.g., 2x size, weight, mounting)
