  • ILC ILC-SWX-121-1-XX

    • ILC ILC-SWX-121-1-XX Wall Switch Sensor - Low Voltage - Dual Tech - Auto On - 12-24V

    $117.00
    SKU:
    ILC-SWX-121-1-XX
    Condition:
    New
    Availability:
    Typically ships in 8-10 weeks.
    Shipping:
    Calculated at Checkout
    Adding to cart… category.add_cart_announcement

    Product Description

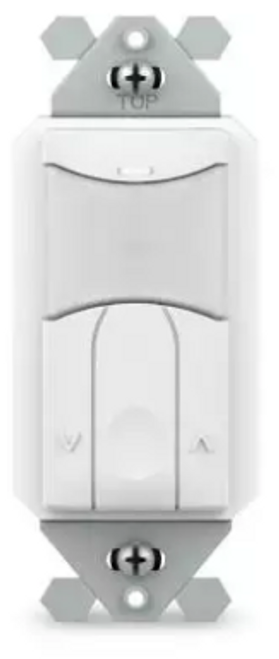

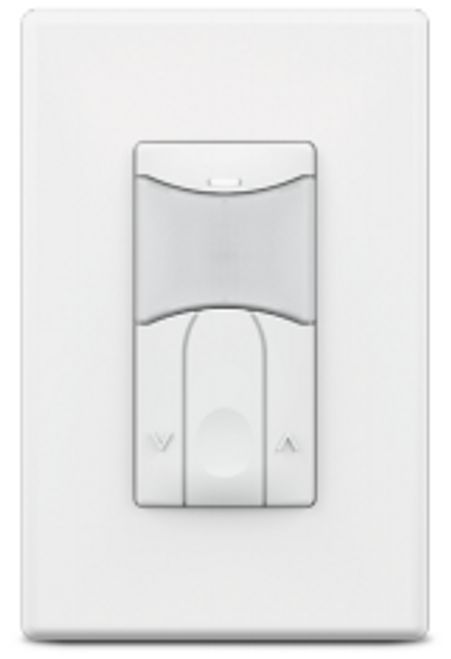

    ILC ILC-SWX-121-1-XX Wall Switch Sensor - Low Voltage - Dual Tech - Auto On - 12-24V

    The Intelligent Lighting Controls family of wall switch occupancy/vacancy sensors provides a simple yet cost effective lighting control solution for many retrofit applications. Designed with contractors in mind, the ILC 0-10V dimming wall switch sensor is significantly shallower than typical dimmers and sensors, resulting in less crowed wall boxes. Additionally, versatile wiring enables usage with or without a neutral and allows reversal of line and load connections. ILC products utilize the latest passive infrared technology and digital signal processing techniques to provide unmatched motion detection performance. These units are also available with an integrated microphone to provide overlapping passive acoustic occupancy detection for rooms with obstructions or where occupant motion is limited.

    Sensors detect movement in the infrared energy that radiates from occupants as they move within the devices field-of-view. Once occupancy is identified, the sensor’s internal relay switches power on to the connected lighting. All units can also be configured to operate in Vacancy Mode (e.g., require lights be manually switched on). Once lights are on and if equipped with passive dual technology (PIR/Acoustic), the unit’s microphone is enabled to further enhance detection. An internal timer is set to keep lights on during brief periods of inactivity, and is reset every time occupancy is signaled by either the passive infrared or acoustic detection technologies. Ambient daylight detection can also be enabled in equipped units so that lights are held off in rooms with sufficient light contribution from windows or skylights.

    FEATURES

    Electrical

    • Interchangeable Line & Load Wires - Impossible to Wire Backwards
    • Accommodates Neutral (3-Wire) and No-Neutral (2-Wire) Installation
    • Electronically Timed Switching Ensures Long Relay Life
    • Compatible with 0-10V Dimmable LED, and Fluorescent Lighting
    • Meets NEC Guidelines Regarding Current Leakage

    Physical

    • Enclosure is 25-40% Shallower than Other Sensors (< 1” Depth into Wallbox)
    • Unique Bat-Wing Shaped Lens Provides Enhanced Peripheral Detection
    • Self-Grounding Mounting Strap
    • Modern Look and Intuitive Easy-Tap Buttons for On/Off, Raise, & Lower
    • Rugged Vandal Resistant Lens
    • Settings are Adjustable Without Removing Cover Plate

    Operational

    • Wall-To-Wall Passive Infrared Small Motion Detection
    • Passive Acoustic Detection (Optional) - Prevents False Offs when No Motion is Present
    • 100% Passive Detection Methods - No Interference Potential from External Devices
    • Configurable Sensor Settings Including Time Delays and Occupancy/Vacancy Operating Modes
    • Configurable Dimming Parameters including High/Low Trims, Turn on Levels, and Curve Types
    • Blue Locator LED when Lights are Off
    SPECS

    Electrical

    OPERATING VOLTAGE

    • 120/277 VAC, 50/60 Hz
    • LOAD RATINGS MAX: 800W @ 120VAC; 1200W @ 277VAC

    Load Types

    • LED Driver/Lamps
    • CFL, Electronic/Magnetic Ballasts (Fluorescent)
    • Tungsten (Incandescent)

    Environmental

    OPERATING TEMP

    • 32°F to 122°F (0°C to 50°C) R

    RELATIVE HUMIDITY

    • 0-95% Non-Condensing, Indoor Use Only

    Physical

    • SIZE 2.74”H x 1.68”W x 1.39”D (6.96 x 4.27 x 3.53 cm)
    • Not Including Mounting Strap

    WEIGHT

    • 4.5 oz

    MOUNTING

    • Single Gang Switch Box

    COVERAGE PATTERNS

    • 30” to 48” (0.76 - 1.22 m) recommended mounting height
    • Wall to wall (~180 degree) coverage à Small motion (e.g., hand movement) detection up to 20 ft (6.10 m), ~625 ft^2
    • Large motion (e.g., walking) detection greater than 36 ft (10.97 m), ~ 2025 ft^2
    • Overlapping acoustic detection of occupants over entire coverage area
    • Advanced signal processing filters out nuisance noises while not effecting overall sensitivity

    Operation Settings

    TIME DELAY

    • Test mode, 30 sec, 5-30 minutes
    • 5 sec test mode expires after 10 minutes

    HIGH-END & LOW-END TRIM

    • High-end trim enables energy saving task tuning by setting a maximum level (100%-50%) that which users are allowed to raise lights
    • Low-end trim enables minimum user level of dimmer to be raise

    FADE ON/FADE OFF TIMES

    • Adjustable time for level to ramp up to turn-on level (0.75 sec, 1.5 sec, 3 sec, 5 sec, or 15 sec)
    • Adjustable time interval for level to ramp down to off (0.75 sec, 1.5 sec, 3 sec, 5 sec, or 15 sec)

    AMBIENT LIGHT (DAYLIGHT) DETECTION

    • Sensor holds lights off when ambient light is present
    • Manual threshold levels or auto-selection of threshold level
    • Disabled when in Vacancy (Manual On) mode

    TURN-ON SENSITIVITY

    • When enabled, this setting reduces the sensor’s PIR sensitivity for initial turn-ons in order to eliminate false on caused by reflective surfaces like windows
    • Unit returns to full sensitivity after initial turn-on

    LED FUNCTIONALITY

    • White LED blinks upon occupancy detection
    • Blue LED serves as a switch locator when lights are off
    • LED functionality can be disabled


    Other Details

    Intelligent Lighting Controls (which will be referred to as ILC in this document) shall comply with the terms and provisions of the customer’s purchase order, unless ILC’s terms and conditions differ from the customer’s, then ILC’s will apply. Any variation to the ILC standard terms and conditions that we accept will be set forth on the face of the acknowledgement and invoice. Condition of Sale Minimum order of $75.00 at net billing price, excluding freight charges. Cancellations of orders after factory engineering or order acknowledgement are subject to an engineering fee of up to 50% of the entire purchase order amount. Any custom material orders cancelled after order acknowledgement may be subject to a cancelation fee. When orders are not shipped because of specific instructions dictated by the customer, the price of the equipment, as stated on the Company’s order acknowledgement, is valid from the date of the ILC order acknowledgement. ILC reserves the right to re-price any order 90 days after the date of order acknowledgement if a shipping date is not provided and agreed upon by ILC. Delivery- Estimated shipping dates are approximate and are based upon information supplied by vendors. ILC shall not be liable for delays in delivery or failure to manufacture or deliver (1) due to acts of God, acts of civil or military authority, priorities, fires, strikes, floods, epidemics, war, riot, delays in transportation, or (2) due to causes beyond its reasonable control, or (3) inability due to causes beyond its reasonable control to obtain necessary material, labor, components or manufacturing facilities. Terms- Net 30 days. Any changes from our terms must be the decision of an officer of ILC, conveyed in writing to or in conjunction with our acceptance of the order. Prices are subject to increase by the amount of any present or future taxes or increase in taxes upon the manufacture, sale, use or transportation the herein products imposed by the Federal, State, Municipal or other public authorities which the seller may be required to pay. Shipments- All shipments are F.O.B., ILC. ILC’s responsibility ceases upon delivery to the carrier. Freight claims for damaged or lost shipments are to be filed to ILC within ten (10) days of receipt. ILC reserves the right to route all shipments. Shipments will be made by alternate route or carrier if expressly requested by the customer. Charges for such shipments will be billed to the customer. Freight Charges- Freight charges are prepaid and allowed on orders with a total net invoice value of $5,000.00 or more, to be shipped to any continental United States destination. For Alaska, Hawaii and Puerto Rico, freight allowance will be made to the nearest port of embarkation in the continental U.S. All other orders will be shipped prepaid and charged. ILC will replace or repair, at its option, any material found to be defective from workmanship within the warranty period listed below unless otherwise noted in quotation/submittal documentation. Warranty periods, for Apprentice, begin at the date of shipment. Warranty periods, for LightLEEDer systems begin at the date of Startup. Extended warranty periods can be purchased at additional cost. This warranty is exclusive to parts manufactured by ILC. Any product that is supplied as resale will be subject to that manufacturer’s standard warranty. ILC is not responsible for damage due to improper installation, physical damage, poor operating practice, or other matters outside of ILC’s control such as lightning, flood, tornado, earthquake or hurricane.   Charges will be invoiced to the distributor if ILC is called upon to make a system functional because of incorrect field assembly of products. ILC shall not be liable for consequential damage in case of any failure to meet the conditions of any warranty of Shipping Schedule, nor will claims of labor, loss of profits, repairs or other expenses incidental to replacement be allowed. No representative, person, agent or dealer is authorized to give any warranties on behalf of ILC, or to assume for ILC any other ruling in connection with any of its products unless made in writing and signed by an officer of ILC. The above warranty applies only to products purchased directly from ILC and for which payment has been received in full accordance with the terms and conditions stated herein.
