ILC Apprentice 3 1-Pole Mechanically Latching Relay - 20Amp 120/277/347V (AP3-1PR)

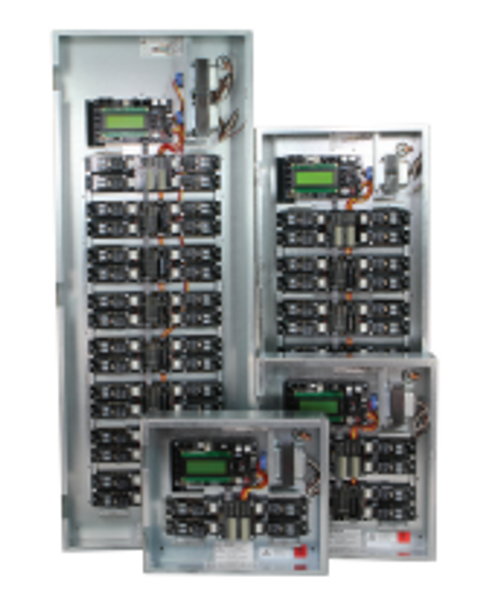

The 1 Pole Relay (AP3-1PR) Board mounts directly in Apprentice 3 lighting control panels and is designed to control up to 277 VAC loads.

The relays are a latching type, and can be mixed in the lighting controller with 1PR relay boards. These relay boards are easily mounted in the Apprentice 3 panel with a push-on connector interface and a single screw.

Features • Made in the USA • UL Listed • Mounts in the panel with a push-on connector and a single screw.

High Voltage Characteristics • Contacts are a latching type SPST • Screw type terminals handle #10AWG solid or stranded copper wire • 16 amp lighting load rated • Plug-load compatible

Warranty One year limited warranty, offered by ILC, the original manufacturer

Specifications:

Physical: • 3.75”W x 1.5”H x 1.3”D • Plug-in module designed for mounting directly to Apprentice 3 I/O board(s)

Electrical: • 16 amp electronic ballast • 16 amp ballast • 16 amp resistive • 50 to 60 Hz • Up to 277 VAC circuits • Plug-load compatible • Maximum inrush current 500A/2mS

Operating Environment: • Location Interior space • Operating 0° to 40° C Temperature • Relative 10% to 90% Humidity Non-condensing • Atmosphere Non-explosive, Non-corrosive • Vibration Stationary application NEMA Level A

Certifications: • UL CUL • FCC approval for commercial and residential use

PLEASE NOTE- ILC Apprentice 3 relays will NOT work in Apprentice II relay panels.
