Product Description

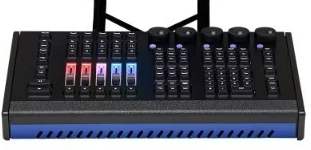

High End Systems GIG HOG Programing Wing for Hog
Overview
The Gig Hog programming wing delivers pro-level hardware performance to setups of any size. When paired with your HPU or Hog PC on your own device, it offers a compact RGB-backlit keypad and five motorized faders for smooth, hands-on control. Acting as a USB-C dock, it delivers up to 100W of power to your laptop while expanding your Ethernet and USB connectivity.
Designed for versatility, the Gig Hog can be rack-mounted in a standard 19-inch setup using optional rack ears, making it easy to integrate into existing systems while helping to minimize cable clutter and streamline your workflow.
With its portable design, intuitive interface, and customizable features, the Gig Hog is the ideal solution for on-the-go technicians—flexible enough to adapt to any production environment.
Features
- Neutrik powerCON® TRUE1 power input
- Two Neutrik EtherCON® Ethernet connections
- USB 3.0 type A (4) and type C (1) connectors
- Two DMX outputs (5-pin XLR)
- SMPTE input (3-pin XLR)
- USB C Dock functionality - 100 W power supply via USB C to laptop
Specifications
- SYSTEM CAPACITY
- Gig Hog unlocks 12 universes (6,144 addresses) when connected to Hog PC (an ETCnomad USB key is NOT necessary). When connected to HPU, the output capacity of the HPU is used (64 universes / 32,768 addresses).
- DISPLAY FUNCTIONS
- Supports two external display port monitors at 1280x1024 minimum resolution, with optional touch or multi-touch control
- User configurable displays with recordable views
- Dedicated views to access most-used items quickly
- Palette, list, views, scenes, batches, effects directories
- Programmer window
- Plot views
- Output window
- Fixture Schedule and Patch windows, sortable by fixture or by universe
- Three color schemes for daylight use, regular use or dark environment use
- PROGRAMMING
- Compact RGB backlit command keypad for quick programming
- Command-line interface
- Programmer window displays selected and adjusted fixtures
- Lists constructed with +, -, and Thru or selection softkeys, Next, Back and All commands
- Intensity set with command keypad, full key, intensity palettes
- Ordered groups
- Comprehensive fanning using segments and buddying
- Dedicated kind keys and five high-resolution parameter encoders, with two keys per encoder
- Four user “U-Keys” for user defined functions
- Media picker window
- Hog Color System
- Programmer window
- Groups for simplified fixture selection
- Palettes: intensity, position, colour, beam, effects
- Effects Engine
- Pixelmapping Effects
- Park
- Undo command
- Delete, Move and Copy commands
- Highlight, lowlight and rem dim commands
- Cue level and parameter level timing
- Record, Update and Merge commands
- Knockout and Clear commands
- Set command for text labels and data entry
- PLAYBACK CONTROLS
- 5 pageable, motorized RGB-backlit master playbacks with customizable faders, flash, go, halt, back and choose keys
- Main playback stack including GM, Restart, Assert, Release, Pig, Skip Forward, Skip Backward, Master Pause, and Master Play keys
- Master Ranges for quick reassignment of playback masters content
- Unlimited fader Pages
- Comment macros and keystroke macros
- Paging keys
- Virtual masters
- Scenes
- Batch controllers
- Group masters
- Triggering via Command keys
- Playback expansion via Tour Wing
- OSC input/output, MIDI messages, MIDI Show Conrol, MIDI/LTC timecode
- INTERFACES AND ACCESSORIES
- HPU hybrid processing unit
- Response network gateways and interfaces
- ETCnomad
- ELECTRICAL AND ENVIRONMENTAL
- ETL, CETL and CE compliance
- Mains power: 100–250 VAC, 50/60 Hz, max 80 W
- Mains connector: Neutrik PowerCON® TRUE1
- Breaker: 4 A
- Acoustical rating: TBD dbA
