Product Description

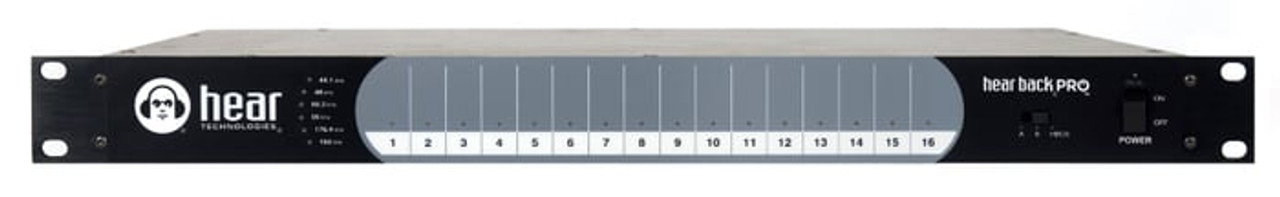

Hear Technologies PROHBHFR Hear Back PRO Hub Mainframe without Expansion Cards
Overview
The Hear Technologies PROHBHFR is the hub mainframe for the Hear Back PRO system. This modular hub consists of four card slots, which can be populated with any configuration of input and/or output cards to fit your exact needs. Each Hub has the ability to supply signal and power to as many as 32 Hear Back PRO Mixers (8 per network card), each over a single standard CAT5e/6 cable. With the built-in HBus In/Out ports, multiple hubs can be daisy-chained together, allowing for truly unlimited system expansion.
Features
- Three switch selectable 16-channel input sources:
- Input A (Slots 1 & 2)
- Input B (Slots 3 & 4)
- HBus
- 24-bit Delta-Sigma A/D converters
- Six user-selectable sample rates, indicated by LEDs:44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, and 192 kHz
- Less than .25 milliseconds total system delay (latency) from analog input to output
- 16 RGB LEDs intuitively display signal / peak levels for channel metering
- Standard CAT5e/6 cabling delivers power and signals to Mixers
- Daisy-chain via HBus for very large systems
- 1 RU chassis
- Modular I/O card-slot configurable mainframe
- Gigabit Ethernet network fabric
- 48V Power Over Ethernet supply
