Product Description

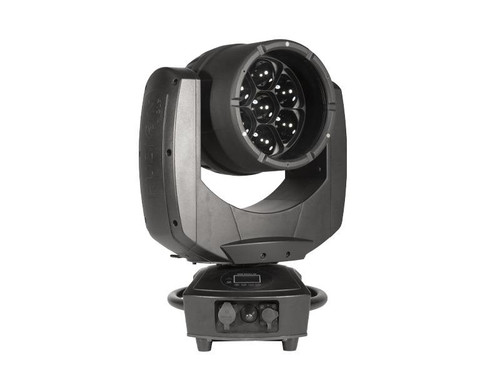

German Light Products Fusion Exo Wash 30
Overview
The Exo Wash 30 from FUSION by GLP is an IP65 rated Moving Head wash fixture with a full feature set in a compact housing.
Featuring a durable and robust die cast housing, the Exo Wash 30 is ready for the toughest of outdoor weather conditions. With 7 powerful 32 W RGBW Osram LEDs, the FUSION Exo Wash 30 delivers a solid, bright beam in a full color range from the deepest saturates to the lightest pastel shades, and offers color control over each individual pixel.
Supporting the stunning output is a zooming optical system that can vary the beam continuously from 4° to 40°.
The Exo Wash 30 incorporates True1 In/Out connectors, variable PWM control and also features easy to use magnetic head mounts, for filter holders and any other future attachments.
Specifications
Light source
- Type: RGBW
- Number: 7
- Light source power: 40 W
- Light source lifetime: 20,000 h
Optical system
- min. Zoom: 4°
- max. zoom: 54°
- Beam angle: fixed, 1°
- Diameter front lens: 160 mm / 6.3 in
Dynamic effects
- Dimmer / Shutter: 0 - 100% electronic
- Strobe effects
- Color mixing: RGBW, variable 0 - 100%
- CTC (Color Temperature Control): 2,500 - 10,000 K
- Pan: 540
- Tilt: 267°
Control & Programming
- DMX Channels: 13 / 22 / 37 / 50
- Control Modes: Pixel Mapping
- Control Modes: 4
- Protocol(s): DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20)
- Setting and addressing: RDM
- Display: self-charging backup battery, OLED display with 4 buttons
- Wireless: Lumenradio CRMX DMX/RDM (optional)
- Software update: DMX link
- Dimmer curves: linear, soft
- Fan modes: regulated, high, medium, low
Connections
- Signal connection: XLR 5-pin
- Power connection: Neutrik powerCON TRUE1
Electrical specifications
- Power supply: 100 - 240 VAC / 50 - 60Hz
- Power supply: Switching power supply
- fuse: T5A 250 V
- max. power (@ 230V): 230 W, 1 A
Thermal specifications
- cooling: combination of convection and forced cooling
- max. ambient temperature (Ta max.): 45°C / 113°F
- min. Ambient temperature (Ta min.): -20°C / -4°F
- Total heat output (calculated, +/-10%): 785 BTU/h
Installation
- Mounting: 2 pairs of 1/4 turn fasteners, rubber feet, eyelets for fuse cable
- Orientation: any
- Location: outdoor temporary
- Minimum distance from flammable materials: 0.5 m / 18.7 in
Structure
- Housing color: Black
- Material: Aluminum
- Protection class: IP 65
- Features: Pan-Tilt-Lock-System
Dimensions & Weight
- Dimensions (WxDxH): 380 x 521 x 279mm
- Weight: 19,7 kg
