Product Description
Galaxy Audio TQ8X-GTU-VSP5AB Quest 8 With Wireless Headset & Lav Mic
- Channel A lav
- Channel B headset

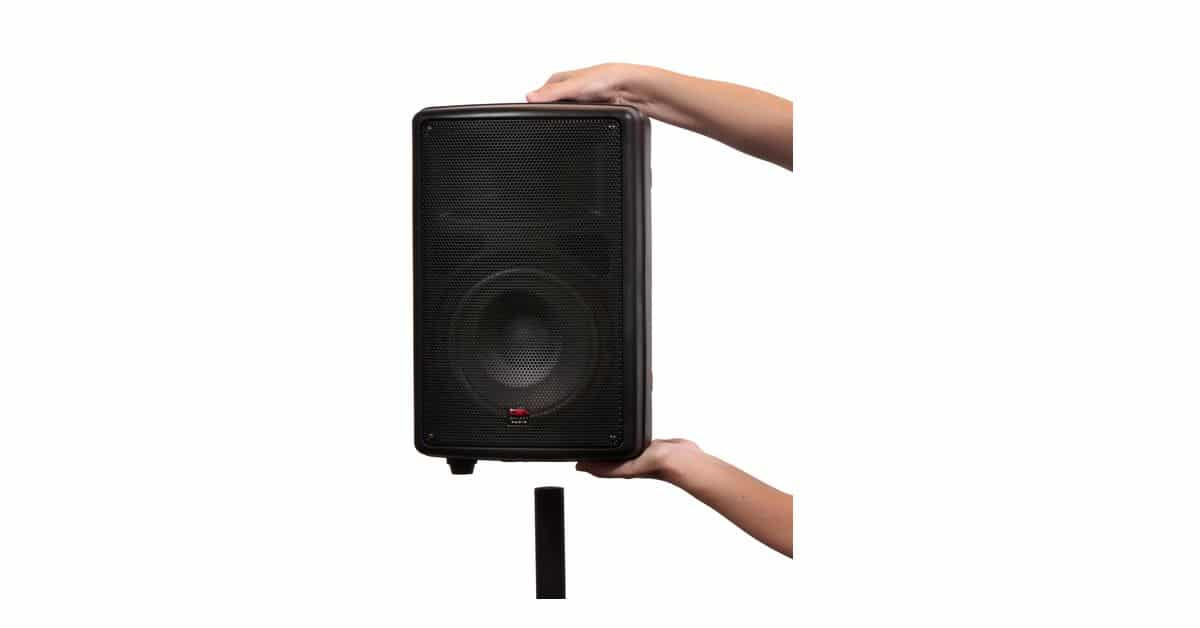

TQ8X Traveler Quest
The Traveler Quest 8X is a versatile, compact, portable lightweight, cost-effective PA system. The Galaxy Audio TQ8X is a remote battery-powered PA (Public Address) speaker system that runs on AC or battery power and comes standard with built-in batteries and a charger. The TQ8X also has the option of adding up to two UHF or 2.4 GHz wireless microphones that can be used simultaneously.
Features of the TQ8X include a built-in 150-watt amplifier with an 8″ woofer, 1″ horn, two XLR / 1/4″ combo inputs each with their own volume control, Stereo RCA inputs, and one AUX 1/8″ input with shared volume control, 3-band EQ with master volume control, and built-in media player with Bluetooth®. The built-in media player enables playing audio from a USB thumb/stick drive or from a Bluetooth® enabled device. Features also include a 5 volt USB charger port, an integrated handle for easy transportation, and a 1-3/8″ (35 mm) speaker pole socket for stand mounting.
The Galaxy Audio TQ8X remote PA speaker system will operate on AC power indefinitely, as well as battery power for about 24 hours depending on the usage. A full recharge of the batteries takes about 7-8 hours. The TQ8X may be operated while batteries are recharging. If a power failure occurs when operating on AC, audio will not be interrupted, and the unit will continue to operate until batteries are exhausted.
The Galaxy Audio TQ8X features a voice priority button, which automatically reduces the volume of the media player, Bluetooth®, and line-level input when it receives a transmission from a wireless or wired microphone. The voice priority can be switched on or off.
Whether the portable sound system is for schools, House of Worship, emergency personnel, corporate functions, fairgrounds, auctioneers, or graveside services, the TQ8X remote battery-powered PA speaker system offers superior audio quality and reliable performance, all at an affordable price.
● 150 Watt Amplifier
● Battery Powered Speaker System
● Built-In Bluetooth®
● Rechargeable
● Optional Wireless Mics (up to 2 can be used simultaneously)
● Two XLR/1/4″ Combo Mic/Line Inputs
● 5 Volt USB Power/Charger Port
● Built-in MP3 Player
● Built-in Handle
● Speaker Pole Mount
● Runs 24+ Hours
● Voice priority button (Automatically reduces music volume when speaking through a wireless or wired mic).
SPECIFICATIONS
| Output | 150 Watt |
|---|---|
| Max SPL | 105 dB |
| Battery | 12V, 2.8Ah * 2 (Lead-Acid) Rechargeable Batteries |
| Battery Operation | 24+ Hours (dependent on program) |
| Battery Charging | 7 ~ 8 Hours |
| Speaker | 8" LF Woofer / 1" Horn |
| S/N Ratio | >70dB |
| Sensitivity | Input Dependent |
| Audio Input | Two XLR/1/4" Combo Mic/Line In, RCA -1/8" Stereo-Aux Input, Bluetooth, & USB (thumb/stick drive only) |
| E.Q. | Low, Mid, High |
| Indicators | Charging, Battery Meter LEDs, Signal/Limiter, Mic On |
| Power Requirements | 32 VDC 2A (Universal 100-240VAC 50/60Hz Power Supply Included) |
| Antenna | Internal |
| Main Controls | Main Volume, Low, Mid, High, CH1 Volume, CH2 Volume, CH3 Volume, CH1 Mic/Line, CH2 Mic/Line, Voice Priority |
| MP3 Player Controls | Power/Mode, Play/Pause, Folder, Repeat, Skip Forward/Volume Up, Skip Backward/Volume Down |
| USB Power Output | 5 volt / 1 Amp |
| Bluetooth Operating Distance | Tested up to 100' (30 m) (Under Optimum Conditions) |
| UHF Wireless Operating Distance | Tested up to 200' (60 m) (Under Optimum Conditions) |
| Stand Mountable | 1 3/8" (35 mm) speaker stand |
| Dimensions | 17.25" x 10.5" x 11.5" (438 x 267 x 292 mm) |
| Weight | 18.85 lbs (8.55 kg) (batteries included) |
GTU Galaxy Trek
Galaxy Trek GTU Wireless Portable Microphone system features a 160-foot range and UHF frequency wireless transmitter options with a choice of handheld, headset, or lavalier mics. Additionally, the user-friendly compact dual mic receiver enables the use of any two of the microphone transmitter options simultaneously.
The Galaxy Trek GTU incorporates Auto Match Pairing to connect transmitters to an open channel. Simply turn on the Receiver and 1 or 2 Transmitters to seamlessly sync. Plug the Galaxy Trek Receiver into the 1/4″ input of active speakers, mixers, cameras, and more for instant wireless connectivity. The Galaxy Trek GTU system also includes a 1/4″ to 1/8″ adapter for smart devices and cameras.
Dual Mic systems are available in a variety of configurations, from handheld, headset, or lavalier microphones. Mix and match your system.
Combine the Trek GTU with a powered loudspeaker to create a versatile wireless PA system for classroom instruction, sports coaches, corporate and trade-show presenters, aerobics instructors, auctioneers, religious ceremonies, weddings, and more.
● Easy Set-Up
● Compact Light-Weight Design
● 160 ft Operating Range
● Dual Channel Wireless Receiver (Works with 2 Wireless Transmitters Simultaneously)
● Rechargeable Receiver
● UHF Wireless Transmission
● Full Range Microphone
● Volume Control On Transmitters
● 60 Selectable Channels
● 6 Hours Battery Life
SPECIFICATIONS
| GTU System | |
|---|---|
| Pairing | Auto-Match Pairing - Simply turn on the Receiver and 1 or 2 Transmitters and they will automatically sync. Plug the Receiver into a powered speaker and you’re ready to be heard. |
| Frequency Response: | 80Hz-15KHz |
| Frequency Range: | 30 channels in Handheld, 30 channels in Body Pack |
| S/N Ratio: | >60dB |
| THD | 0.5% (1khz) |
| Sensitivity | -70dbM |
| Operating Range | 160ft (50 meters)* |
| RF power | 20mW |
| Bandwidth: | 60 MHz |
| Frequency Range | 524.500 MHz - 594.500 MHz 30 channels in Handheld 30 channels in Body Pack |
| Dual Channel Receiver GTU-DREC: | |
| Controls: | On-Off Power Switch |
| Audio Output | 1/4" Output |
| Indicators: | Power and Pairing LEDs |
| Receiving Sensitivity | < 2uV |
| Spurious Rejection | > 40dB |
| Audio output Impedance | 600 Ohm |
| Audio output Level | 0-0.5V |
| Power Supplied By | Lithium Ion Battery (Included) Mini USB Charging Input |
| Input Power | 5VDC USB |
| Dimensions | 4.5" x 1.4” x 1" (114.3x35.5x25.4 mm)(HxWxD) |
| Weight | 2.8oz (79 g) with battery |
| Transmitters: | GTU-HH28 Handheld GTU-MBP28 Body Pack |
| Controls | On-Off Power Switch / Volume Control / Channel Select |
| GTU-HH28 Handheld Mic Element | Dynamic Cardioid Capsule |
| GTU-MBP28 Body Pack Mic Input | TRS 3.5mm |
| Indicators | Backlit Display Shows Battery Level, Frequency, Channel, & RF |
| Frequency Stability | +- 0.005% |
| RF power | <30mW |
| Spurious Rejection | > 40dB |
| Peak Deviation | +- 75Khz |
| Modulation | UHF |
| Power Supplied By | (2) AA Alkaline or Rechargeable Batteries (Not Included) |
| Handheld Dimensions | 9.75" x 2.06" x 2.06" (248x52x52 mm)(HxWxD) |
| Handheld Weight | 9.2 oz (261 g) (Without Batteries) |
| Body Pack Dimensions | 4.25" x 2.7" x 1.17" (108x68.5x30 mm)(HxWxD) |
| Body Pack Weight | 2.4 oz (68 g) (Without Batteries) |
| Included Accessories | 1/4 inch to 1/8 inch Adapter USB Charging Cable |
| *Actual range depends on RF signal absorption, reflection, interference, and battery characteristics. |
