Product Description

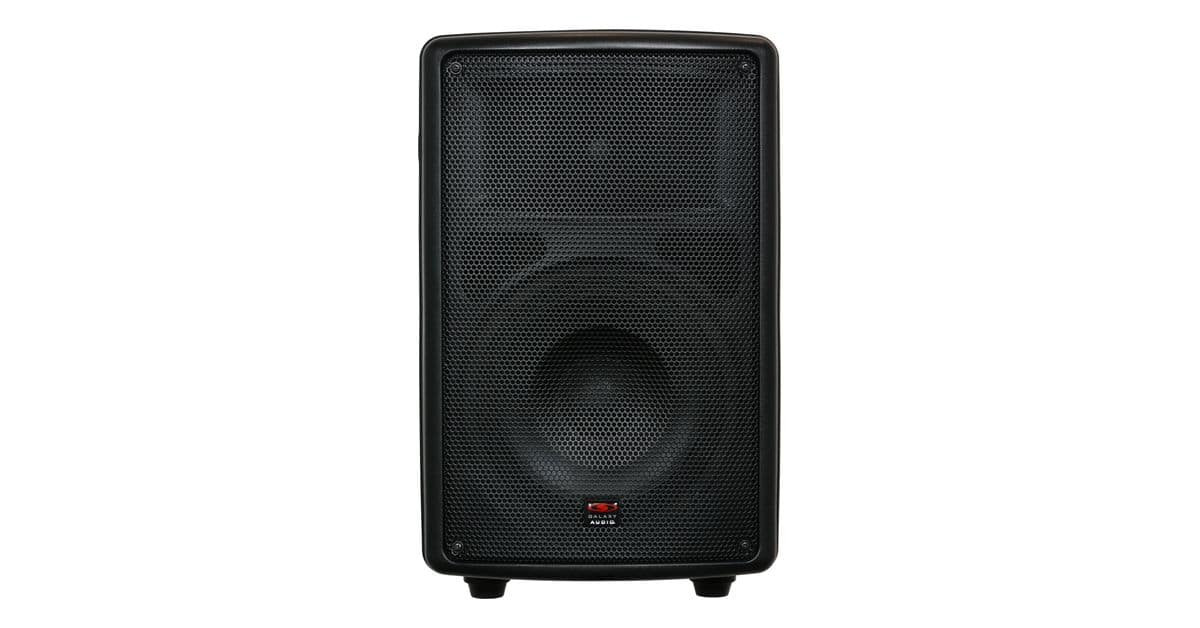

Galaxy Audio TQ8X-00 Quest 8 Speaker
The Traveler Quest 8X is a versatile, compact, portable lightweight, cost-effective PA system. The Galaxy Audio TQ8X is a remote battery-powered PA (Public Address) speaker system that runs on AC or battery power and comes standard with built-in batteries and a charger. The TQ8X also has the option of adding up to two UHF or 2.4 GHz wireless microphones that can be used simultaneously.

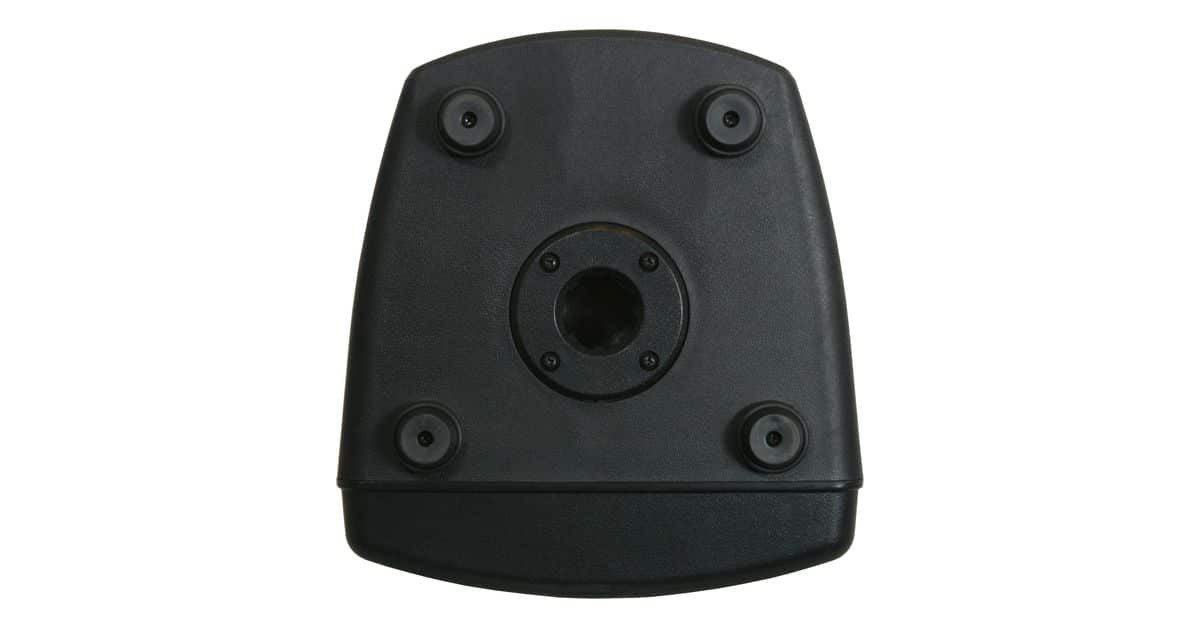

Features of the TQ8X include a built-in 150-watt amplifier with an 8″ woofer, 1″ horn, two XLR / 1/4″ combo inputs each with their own volume control, Stereo RCA inputs, and one AUX 1/8″ input with shared volume control, 3-band EQ with master volume control, and built-in media player with Bluetooth®. The built-in media player enables playing audio from a USB thumb/stick drive or from a Bluetooth® enabled device. Features also include a 5 volt USB charger port, an integrated handle for easy transportation, and a 1-3/8″ (35 mm) speaker pole socket for stand mounting.
The Galaxy Audio TQ8X remote PA speaker system will operate on AC power indefinitely, as well as battery power for about 24 hours depending on the usage. A full recharge of the batteries takes about 7-8 hours. The TQ8X may be operated while batteries are recharging. If a power failure occurs when operating on AC, audio will not be interrupted, and the unit will continue to operate until batteries are exhausted.
The Galaxy Audio TQ8X features a voice priority button, which automatically reduces the volume of the media player, Bluetooth®, and line-level input when it receives a transmission from a wireless or wired microphone. The voice priority can be switched on or off.
Whether the portable sound system is for schools, House of Worship, emergency personnel, corporate functions, fairgrounds, auctioneers, or graveside services, the TQ8X remote battery-powered PA speaker system offers superior audio quality and reliable performance, all at an affordable price.
● 150 Watt Amplifier
● Battery Powered Speaker System
● Built-In Bluetooth®
● Rechargeable
● Optional Wireless Mics (up to 2 can be used simultaneously)
● Two XLR/1/4″ Combo Mic/Line Inputs
● 5 Volt USB Power/Charger Port
● Built-in MP3 Player
● Built-in Handle
● Speaker Pole Mount
● Runs 24+ Hours
● Voice priority button (Automatically reduces music volume when speaking through a wireless or wired mic).
SPECIFICATIONS
| Output | 150 Watt |
|---|---|
| Max SPL | 105 dB |
| Battery | 12V, 2.8Ah * 2 (Lead-Acid) Rechargeable Batteries |
| Battery Operation | 24+ Hours (dependent on program) |
| Battery Charging | 7 ~ 8 Hours |
| Speaker | 8" LF Woofer / 1" Horn |
| S/N Ratio | >70dB |
| Sensitivity | Input Dependent |
| Audio Input | Two XLR/1/4" Combo Mic/Line In, RCA -1/8" Stereo-Aux Input, Bluetooth, & USB (thumb/stick drive only) |
| E.Q. | Low, Mid, High |
| Indicators | Charging, Battery Meter LEDs, Signal/Limiter, Mic On |
| Power Requirements | 32 VDC 2A (Universal 100-240VAC 50/60Hz Power Supply Included) |
| Antenna | Internal |
| Main Controls | Main Volume, Low, Mid, High, CH1 Volume, CH2 Volume, CH3 Volume, CH1 Mic/Line, CH2 Mic/Line, Voice Priority |
| MP3 Player Controls | Power/Mode, Play/Pause, Folder, Repeat, Skip Forward/Volume Up, Skip Backward/Volume Down |
| USB Power Output | 5 volt / 1 Amp |
| Bluetooth Operating Distance | Tested up to 100' (30 m) (Under Optimum Conditions) |
| UHF Wireless Operating Distance | Tested up to 200' (60 m) (Under Optimum Conditions) |
| Stand Mountable | 1 3/8" (35 mm) speaker stand |
| Dimensions | 17.25" x 10.5" x 11.5" (438 x 267 x 292 mm) |
| Weight | 18.85 lbs (8.55 kg) (batteries included) |
