Product Description

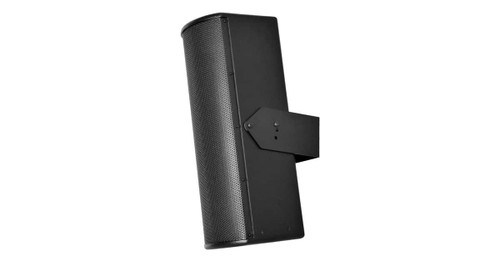

Galaxy Audio LA4DB Mountable Powered Line Array Speaker Pole
The LA4D Powered Line Array speakers are built with an integrated 100-watt amplifier, the Galaxy Audio LA4D Portable Line Array speaker is designed to take advantage of the unique sound dispersion characteristics of multiple stacked drivers. The vertical line array design allows for maximum coverage from a slim, unobtrusive speaker cabinet. The LA4D has a built-in pole mount for portable use. Self-contained and with a small footprint, the LA4D is a perfect solution for hassle-free PA installations, even in acoustically challenging rooms.
The LA4D portable line array speaker has both an XLR input with +48 volt phantom power, a balanced 1/4″ input, and a 1/8″ TRS summing input for MP3 players, etc. With a two-band EQ control and built-in Compressor/Limiter, the LA4D is perfect for live stage and portable applications.
- Internal 100 Watt Amp
- +48V Phantom Power
- XLR, 1/4″ and 1/8″ Summing Input
- Built-In Compressor/Limiter
- Pole Socket for Pole Diameter 1 3/8″ (35.30 mm)
- 2 Band EQ
- Stand or Wall Mountable
- Universal Power Supply
- Vocal Clarity
- Light Weight
- 118 dB Output
SPECIFICATIONS
Frequency Response | 150Hz - 18kHz |
---|---|
Output/Peak | 100 Watts |
Nominal Impedance | 16 Ohms |
Sensitivity | 98dB, 1 W @ 1 m (1kHz octave band) |
Max SPL | 124dB, 100 W @ 0.5 m |
Speaker Compliment | Four 4.5" Full Range Drivers |
Nominal Coverage Pattern | 120°H x 60°V |
Input Connections | One Balanced XLR with +48 Phantom Power VDC, One 1/4" Balanced/Unbalanced, One 1/8" Summing |
Controls | Level, High Frequency, Low Frequency, 20db Pad, Phantom Power |
Indicators | Input, Compression |
Protection | Compressor/Limiter |
Power Supply | 100/240 VAC 50/60 Hz, 1A |
Enclosure Material | 15 mm Plywood, Steel Grill |
Mounting/Rigging | 1-3/8" Pole Socket |
Handle | Integrated |
Color | Black |
Dimensions | 21.5" x 7.5" x 8.5" (546 x 191 x 215 mm)(HxWxD) |
Weight | 14 lbs (6.35 kg) |
