Product Description

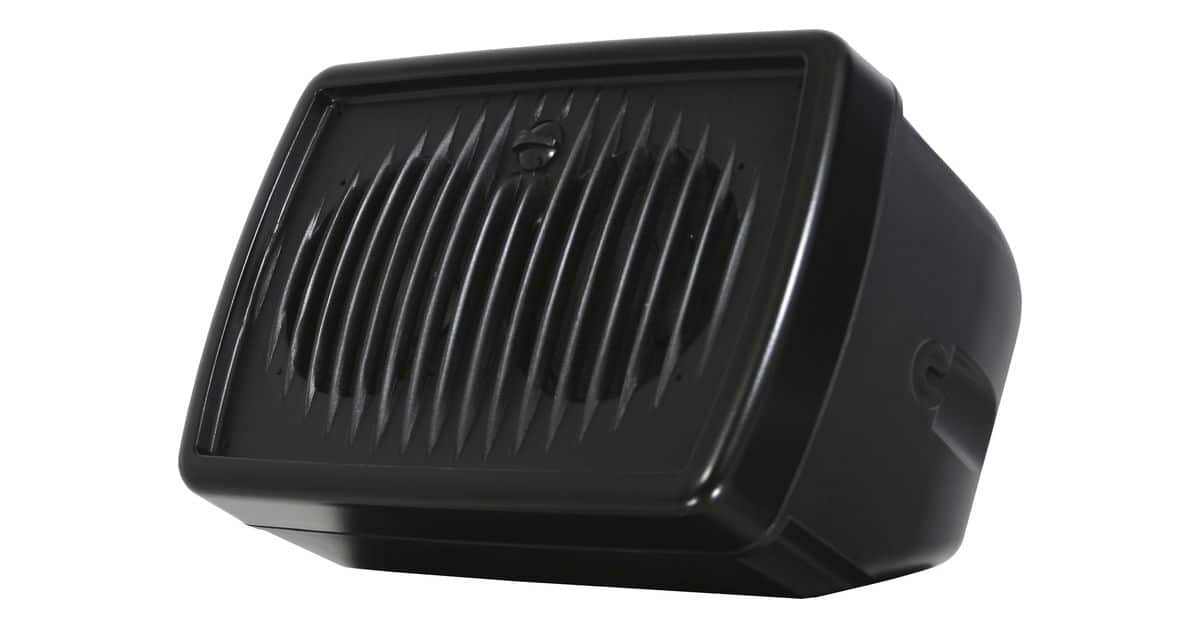

Galaxy Audio HS7 Hot Spot The Original Monitor For Live Stage Near-Field Vocal Monitoring
The HOT SPOT monitor series has been the world’s number one personal monitor since it’s invention in 1970. There are two basic concepts that have led to the continued success of the HOT SPOT. The first concept was to bring the monitor closer to the performer. Second, was to create an unpowered PA monitor speaker that projects mid/high range frequencies; a frequency tailoring that Galaxy Audio calls, controlled bandwidth.
By bringing the monitor closer, the stage volume can be reduced, which, in turn, helps clean up the front of house mix. The Galaxy Audio Hot Spot HS7 has integrated volume control that allows the performer to have more control over his/her volume and to hear the other musicians on stage.
- 200 Watt Power Handling
- Freq. Response 150Hz – 18kHz
- Sensitivity: 94dB, 1 W @ 1 m (1 kHz octave band)
- 16 Ohm Cabinet with Two NEOLITE 5″ Drivers
- Two NEOLITE Neodymium, Ferrofluid Cooled 5″ Drivers
- Input Connections: Two Twist-Lock / 1/4″ Combo Jacks (wired in parallel)
- 7 Position Volume Control Full on to -18dB in 3dB steps
- High Impact ABS Plastic
- Integrated Handle
- Mounting Points for Mic Boom Adapter and Bracket
- Mounts to Most Mic Stands
- MSA-1 Stand Adaptor Included
SPECIFICATIONS

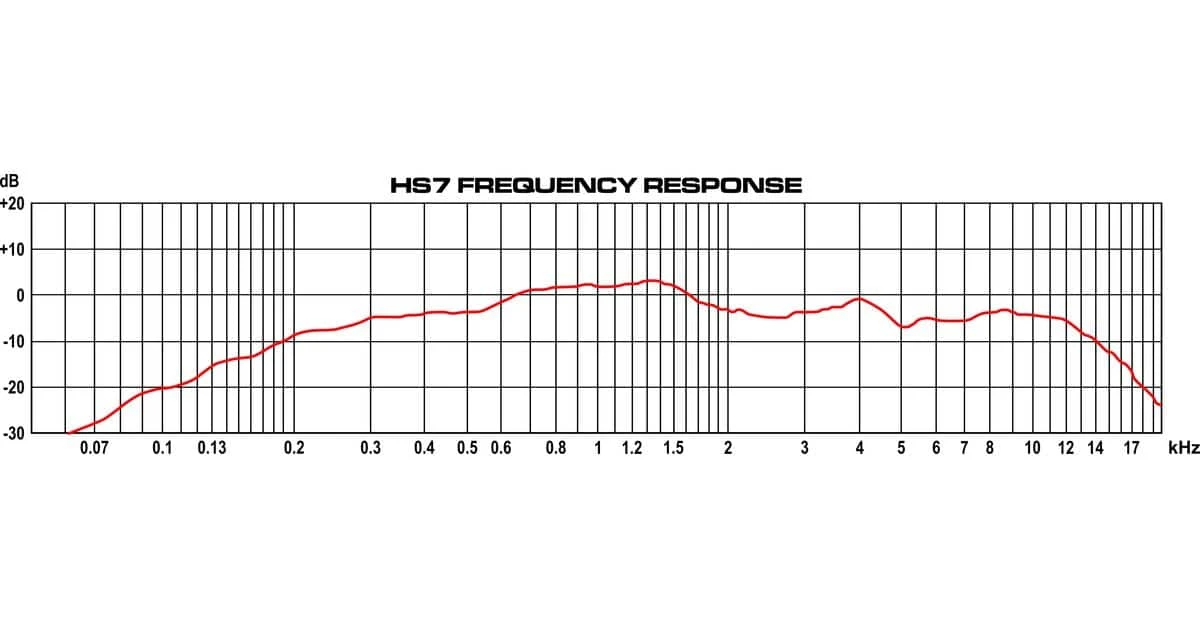

Frequency Response | 150Hz- 18kHz |
---|---|
Output/Peak | 200 Watts |
Sensitivity | 94dB, 1 W @ 1 m (1kHz Octave Band) |
Max SPL | 126dB |
Speaker Compliment | Two 5" drivers (S5N-8) NEOLITE Neodymium, Ferro Fluid cooled |
Nominal Impedance | 16 ohms |

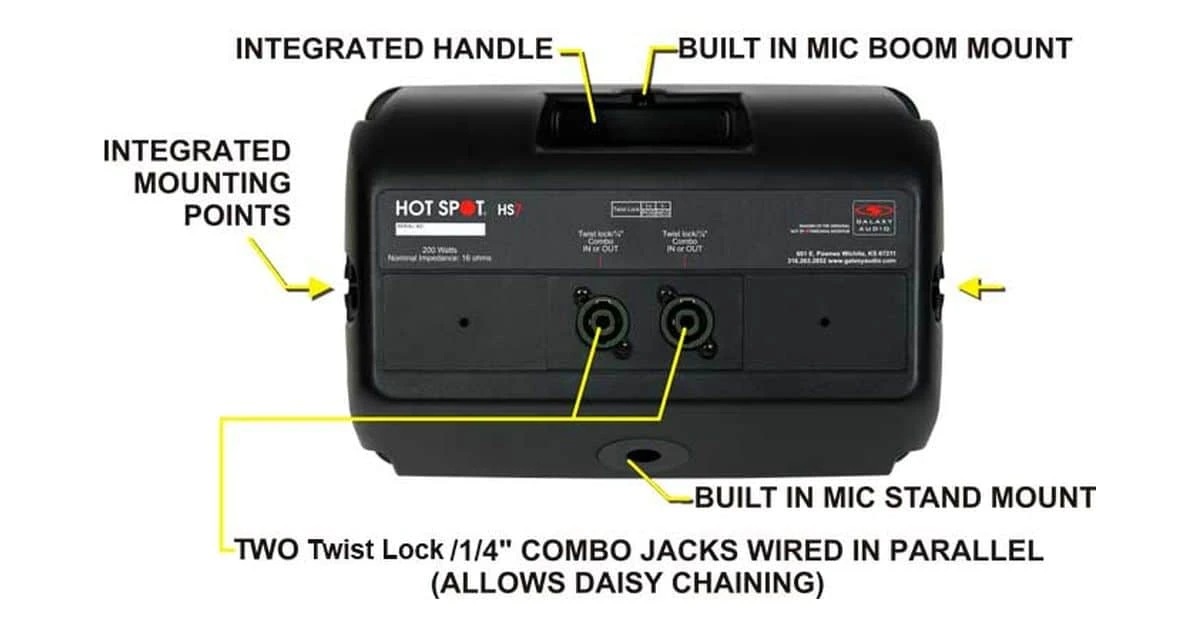

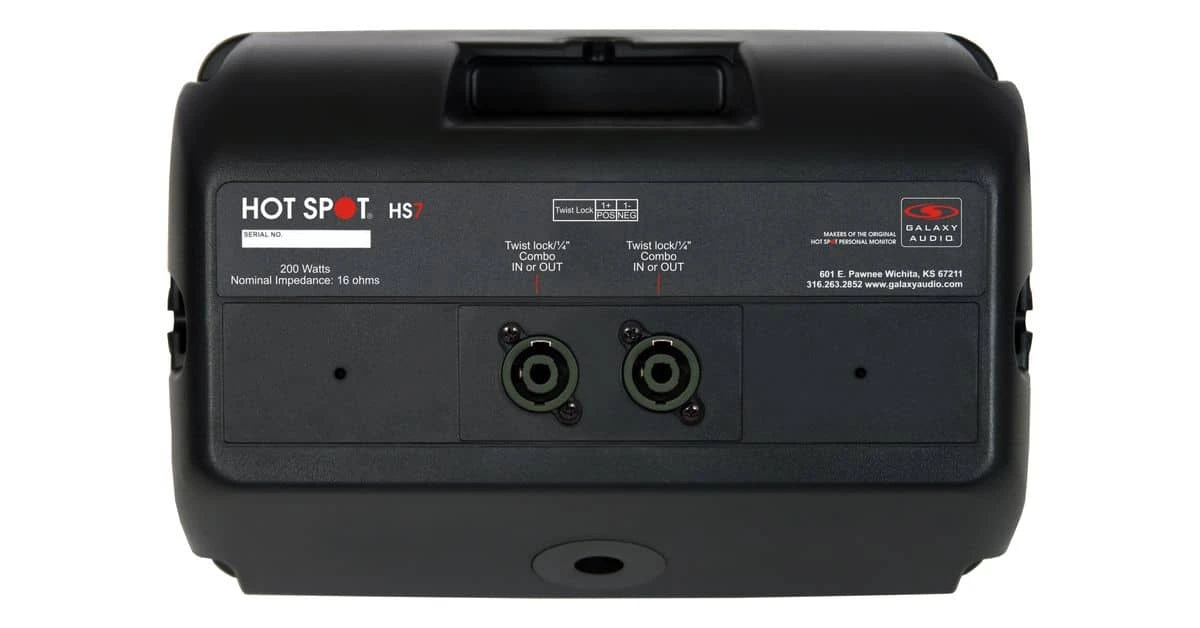

Input Connections | Two Twist Lock/1/4" combo jacks POS: +1 NEG: -1 wired in parallel |
Controls | 18dB Stepped Attenuator Volume Control |
Splowt* | 24 |
Enclosure Materials | High Impact ABS Plastic, Integrated Handle |
Mounting/Rigging | Built-in yoke bracket points, built-in mic stand insert |
Color | Black |
Accessories | MSA-1 Stand Adaptor, Rubber Feet, Quick Start Guide |
Dimensions | 7.75" x 11.75" x 6.75" (197 x 298 x 171mm)(HxWxD) |
Weight | 5.25 lbs (2.381 kg) |
*Splowt : A unit of measure, expressed as dB, that divides a speaker’s maximum SPL by its weight in pounds. Galaxy Audio’s MICRO SPOT boasts a splowt of 43 dB
