Product Description
Galaxy Audio EDXR* Dual Channel Receiver
This includes the EDXR Receiver, 1/4" to 1/4" cable, and Power Supply
The EDX Series is a professional dual channel UHF wireless microphone system. The EDX features 2 internal antennas (1 for each receiver), 16 selectable channels on each receiver, and IR Sync from receiver to transmitter. The EDX has 2 discreet male XLR outputs and 1 combined 1/4″ output on the back of the unit. The output is controlled by a volume control for each receiver, located on the front of the unit.

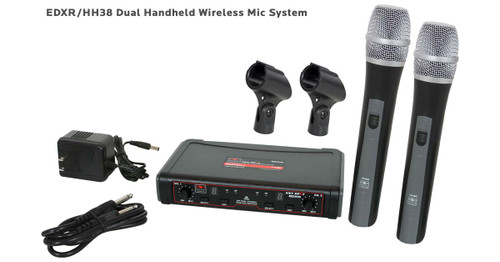

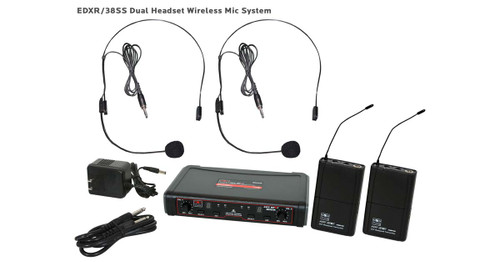

The EDXR 2 channel wireless microphone system can be used and will sync with either the HH38 handheld or the MBP38 body pack transmitters. Systems with the MBP38 body pack are available with either a lavalier, or headset. Both transmitters feature an on/off switch and are powered by two “AA” batteries. The MBP38 body pack transmitter also features a Mic/0/-10 selector switch for various input level sources.
- 200′ Range
- 16 Selectable UHF Frequencies
- Internal Antennas
EDXR Receiver
- Dual Channel Receiver
- AF & RF Indicators
- IR Sync Receiver to Transmitters
- 1 Mixed 1/4″ Output, 2 Balanced Male XLR Outputs
- 2 Internal Antennas (Non-Diversity)
- Rugged Plastic Casing
EDX SYSTEM SPECS |
|
Available Channels |
16 |
Frequency Range |
CODE D 584-607 MHz CODE N 518-542 MHz |
Transmitter Output Level |
10 mW |
Band |
UHF |
Operating Range |
Under Typical Conditions 200' (61 m), actual range depends on RF signal absorption, reflection, and interference. |
Audio Frequency Response |
(+/-3 dB) 60 Hz ~ 16 kHz |
Total Harmonic Distortion |
(+/-30 kHz deviation 1 kHz tone): <1% |
Dynamic Range |
>90 dB A-weighted |
Operating Temperature Range |
14º F to 122º F (-10º C to 50º C), battery characteristics may limit this range. |
|
|
EDXR RECEIVER |
|
Audio Output Level |
XLR Connector (into 600 Ohms load) -12 dBV 1/4" Connector (into 3 k Ohms load) -18 dBV |
Output Impedance |
XLR Connector 200 Ohms 1/4" Connector 1 k Ohms |
Sensitivity |
-92 dBm |
Image Rejection |
>92 dB |
Dimensions |
1.7" x 8.3" x 5" (42 x 210 x 127 mm) (HxWxD) |
Weight |
13.6 oz (390 g) |
Power Requirements |
12-18 V dc at 300mA, supplied by external power supply |
Other Details
A RETURN AUTHORIZATION (RA) NUMBER MUST BE OBTAINED FROM GALAXY AUDIO PRIOR TO ANY ITEMS BEING RETURNED TO GALAXY AUDIO FOR RETURN OR REPAIR. CONTACT CUSTOMER SERVICE @ (800)369-7768 OR HTTPS://WWW.GALAXYAUDIO.COM/SUPPORT
Galaxy Audio warrants the materials and workmanship of its products as follows:
WARRANTY CONDITIONS
A RETURN AUTHORIZATION (RA) NUMBER MUST BE OBTAINED from Galaxy Audio prior to any items being returned to Galaxy Audio for return or repair. Contact customer service at https://www.galaxyaudio.com/support
Galaxy Audio warrants the materials and workmanship of its products as follows:
A limited FIVE YEAR Warranty applies to the following products:
CONNECT-IT Series Cables, Connectors, & Adaptors
A limited THREE YEAR Warranty applies to the following products:
HOT SPOT Series speakers and accessories
MICRO SPOT Series speakers and accessories
CRICKET Polarity Test Set
JACKS IN THE BOX Series
LINE ARRAY Series speakers and accessories
ANY SPOT WIRELESS PERSONAL MONITORS & accessories (excludes ear buds or ear cups that have a 1 yr. warranty)
ANY SPOT WIRELESS MICROPHONES & accessories (excludes headset or lapel mics that have a 1 yr. warranty)
ANY SPOT TOUR GUIDE/TRANSLATOR SYSTEMS (excludes ear buds or ear cups that have a 1 yr. warranty)
ANY SPOT WIRELESS CAMERA KITS
ANY SPOT WIRELESS SPEAKER SYSTEMS
ANY SPOT TRAVELER Series Portable PA Systems & components (excludes player options; 1 year & batteries; 90 days)
CHECKMATE Series SPL meters and accessories
CYCLONE Series Rack Cases
CORE Series speakers and accessories
A limited ONE YEAR Warranty applies to the following products:
ANY SPOT Headset, Earset, or Lapel Microphones & their cables
Galaxy Audio Ear Buds & Ear Cups
Galaxy Audio Wired Instrument or Test Microphones
Galaxy Audio Studio Microphones and their accessories
Galaxy Audio Installation Microphones
Galaxy Audio Wired Handheld Microphones
Galaxy Audio Studio Headphones
Galaxy Audio Carbon Boom Microphones
RM Series Chassis & Modules
The following are not covered by the warranty:
Damage to or deterioration of the exterior of the item, which occurs after delivery
Damage after initial delivery resulting from accident, misuse or neglect
Damage resulting from failure to follow instructions contained in the owner’s manual
Damage resulting from the performance of repairs by someone other than the Galaxy Audio repair department
Damage occurring during the shipment or delivery of any Galaxy Audio product to Galaxy Audio after initial delivery of the product to you.
Damage to any Galaxy Audio product which has been altered or on which the serial number has been effaced or removed (where applicable)
Galaxy Audio does not authorize any third party including any dealer or Service Center to assume any liability on behalf of Galaxy Audio or to make any warranty for Galaxy Audio.
DEFECTIVE MERCHANDISE POLICY-WARRANTY
A RETURN AUTHORIZATION (RA) NUMBER MUST BE OBTAINED from Galaxy Audio prior to any items being returned to Galaxy Audio for repair or return. Contact customer service at https://www.galaxyaudio.com/support
The Galaxy Audio warranty policy is to repair and return defective merchandise. Items under warranty may be replaced at no charge if deemed un-repairable by the Galaxy Audio technician.
Proof of purchase may be required to verify warranty status.
Customer will be responsible for shipping charges to the repair facility, repaired product will be returned shipping prepaid by Galaxy Audio.
Freight charges will not be reimbursed.
DEFECTIVE MERCHANDISE POLICY-NON WARRANTY
A RETURN AUTHORIZATION (RA) NUMBER MUST BE OBTAINED from Galaxy Audio prior to any items being returned to Galaxy Audio for repair or return. Contact customer service at https://www.galaxyaudio.com/support
Repair charges are $60.00 per hour ($30 minimum) plus parts.
Customer will be responsible for all shipping charges.
Prepayment is expected if customer is not set up with open account terms in advance. Discounts are not applicable on repairs. Open account terms for repairs will be Net Thirty (30) days.
