Product Description

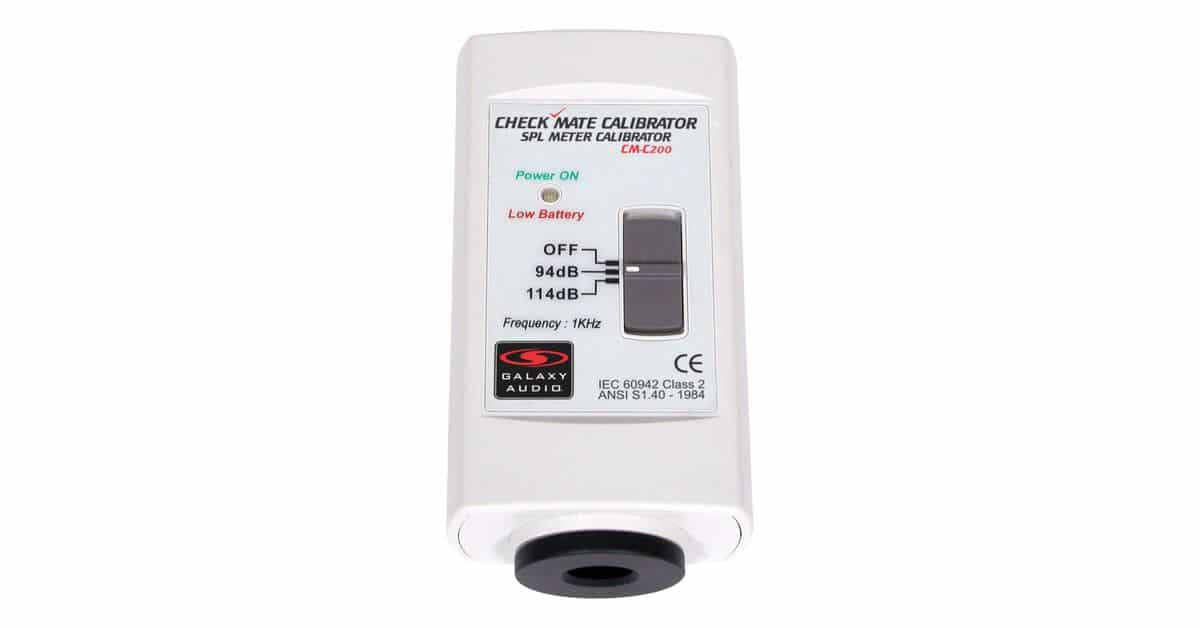

Galaxy Audio CM-C200 Check Mate Sound Pressure Level Meter Calibrator
Over time, all SPL meters lose their calibration. The Galaxy Audio CM-C200 is a sound pressure level (SPL) meter calibrator. The CM-C200 meets IEC 60942 2003 Class 2 and ANSI S1.40-1984 standards. The CM-C200 can calibrate 1″, 1/2″, and 1/4″ diameter microphone capsules at 94dB and 114dB.

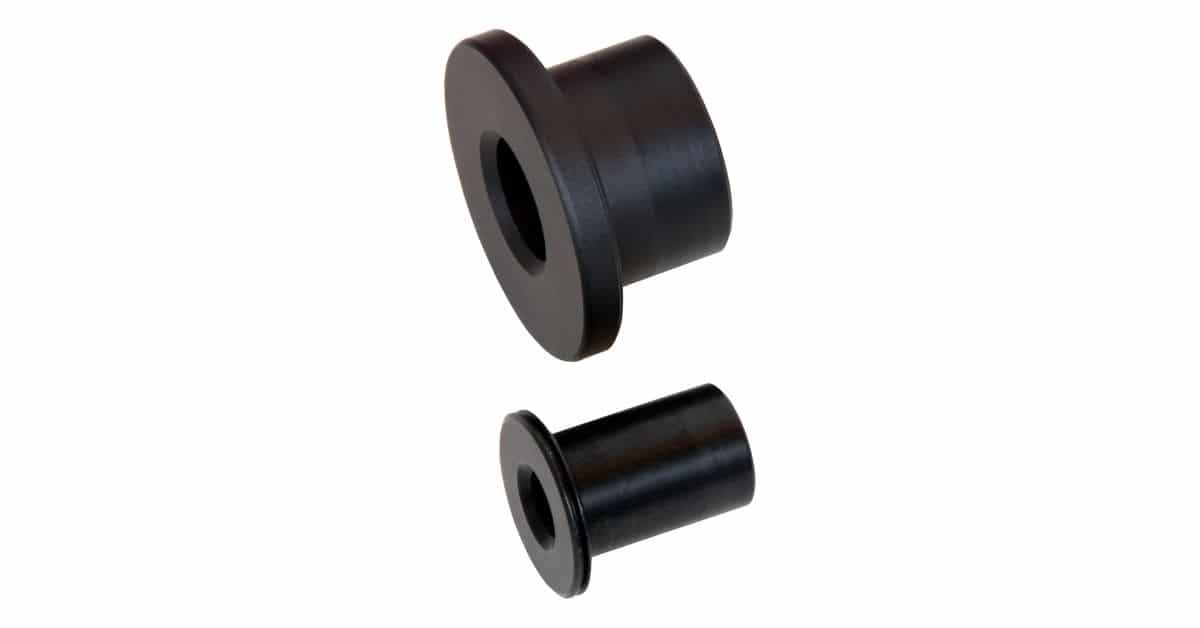

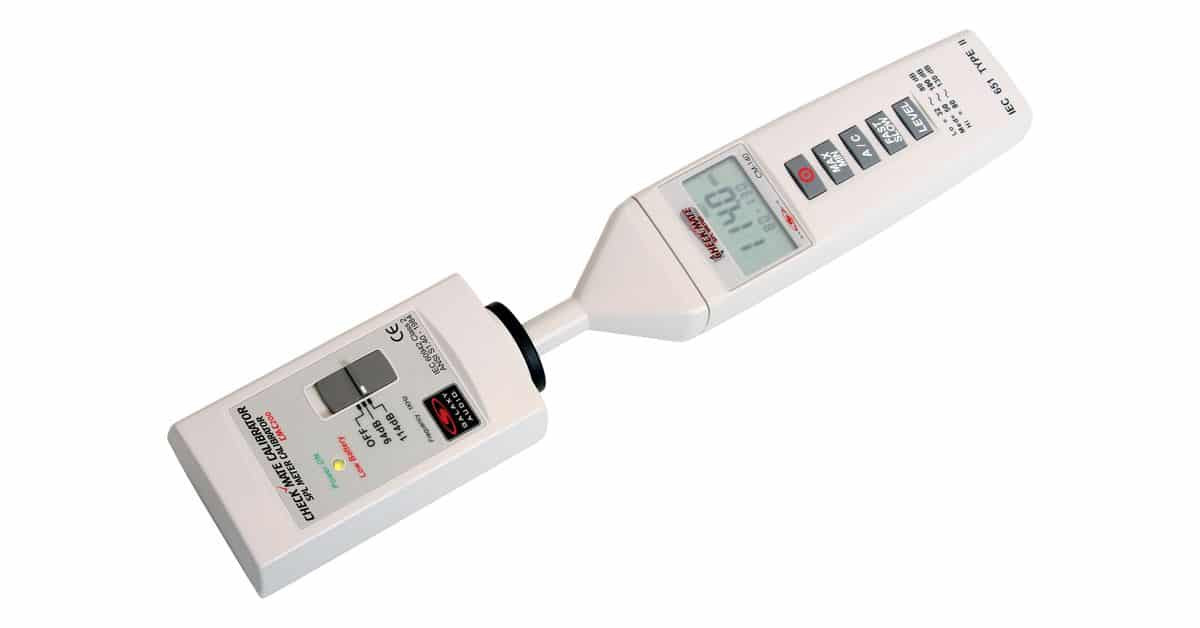

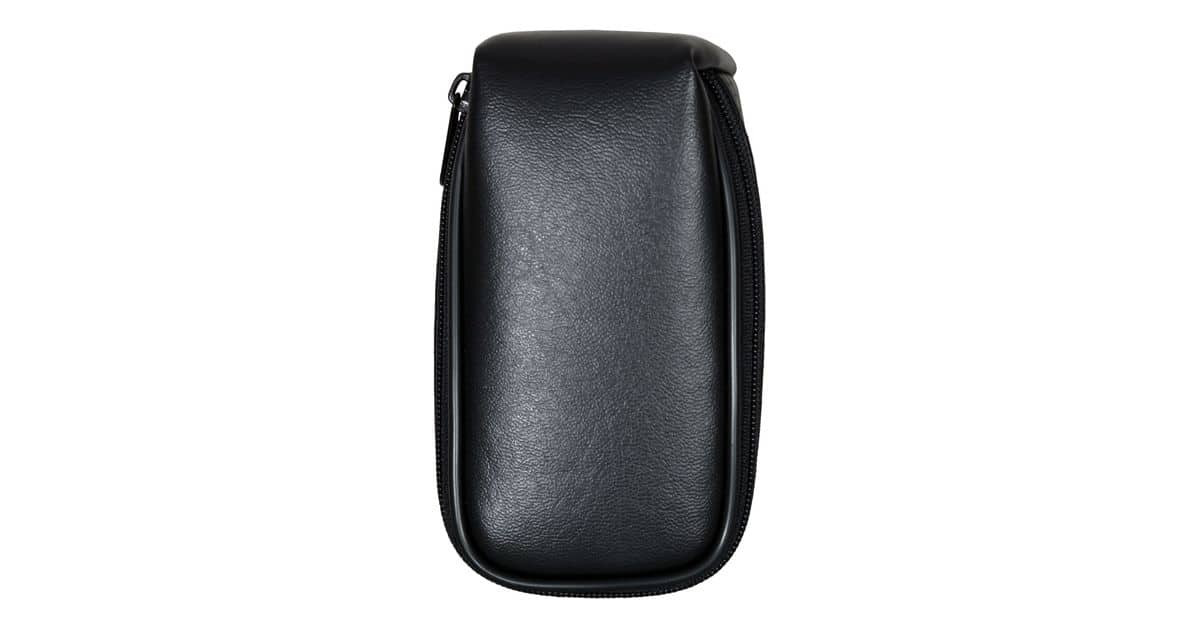

The CM-C200 will work with any of the CheckMate SPL Meters and many other brands. The CM-C200 has a test tone at 1kHz at both 94dB and 114dB. The CM-C200 includes 2 adaptors a protective zipper pouch and manual.
- Accurate and simple to use
- Calibration levels of 94dB and 114dB at 1kHz
- Fits 1″, 1/2″, and 1/4″ diameter microphones
- Conforms to IEC 60942 2003 Class 2 and ANSI S1.40-1984
- Weight: 0.41lbs (186.4g) (including battery)
SPECIFICATIONS
| Standard | IEC 60942 2003 Class 2, ANSI S1.40-1984 |
|---|---|
| Accuracy (under reference conditions 94dB @1kHz) | ±0.5dB |
| Output Sound Pressure Levels | 94dB and 114dB at 1kHz, re 20 uPa (under reference conditions) |
| Output Frequency | 1000Hz ±4% |
| Indicators | Power/Low Battery LED |
| Microphone Cavity Size | 1" (1/2" and 1/4" Adapters included) |
| Power Supplied By | One 9V battery, 006P or IEC 6F22 or NEDA 1604 (not included) |
| Operation Temp. | 0°C to 40°C (32°F to 104°F) (<90% R.H.) |
| Storage Temp. | -10°C to 50°C (14°F to 122°F) (<70% R.H.) |
| Dimensions | 4.62" x 2.47" x 1.72" (117.36 x 62.75 x 43.73mm) (HxWxD) |
| Weight (with battery) | 6.6 oz (186.4 g) |
