Product Description

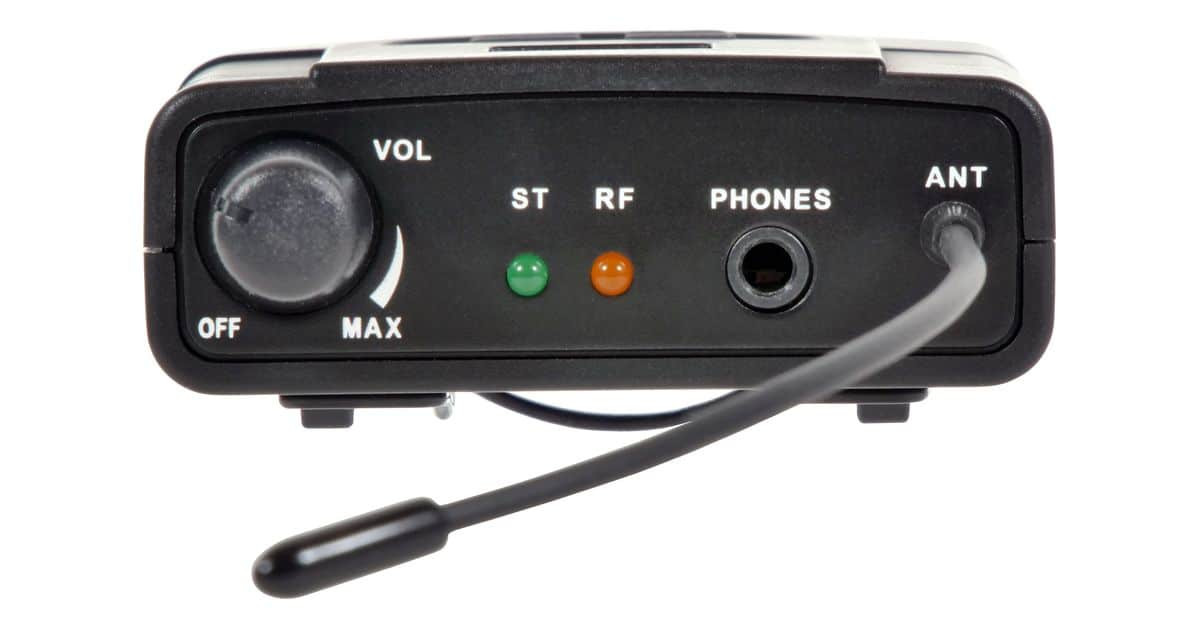

Galaxy Audio AS-950R* Receiver For 950 Series With EB4
- Built-in Limiter
- 50mW x 2 Earphone Out w/ Volume Control
- Channel LCD Display
- Up/Down Channel Select
- Operates on 2 AA Batteries (Alkaline or Rechargeable)
- 3.35 oz (95 g)
| AS-950R RECEIVER | |
|---|---|
| Audio Output Level | 50 mW x 2 Earphone Out with Volume Control |
| Sensitivity | -94dBm for 30dB |
| Stereo Separation | 40dB (at 1kHz) |
| Output Connector | 1/8" (3.5 mm) Stereo Earphone Connector |
| Controls | Volume, Channel Up/Down |
| Indicators | LCD Display, Stereo LED, RF LED |
| Dimensions | 3.54" x 2.51" x 0.9" (90 x 64 x 23 mm)(HxWxD) |
| Weight | 3.35 oz (95 g) without batteries |
| Power Requirements | 2 "AA" size alkaline or rechargeable batteries |
| Battery Life | About 12 hours (alkaline) |

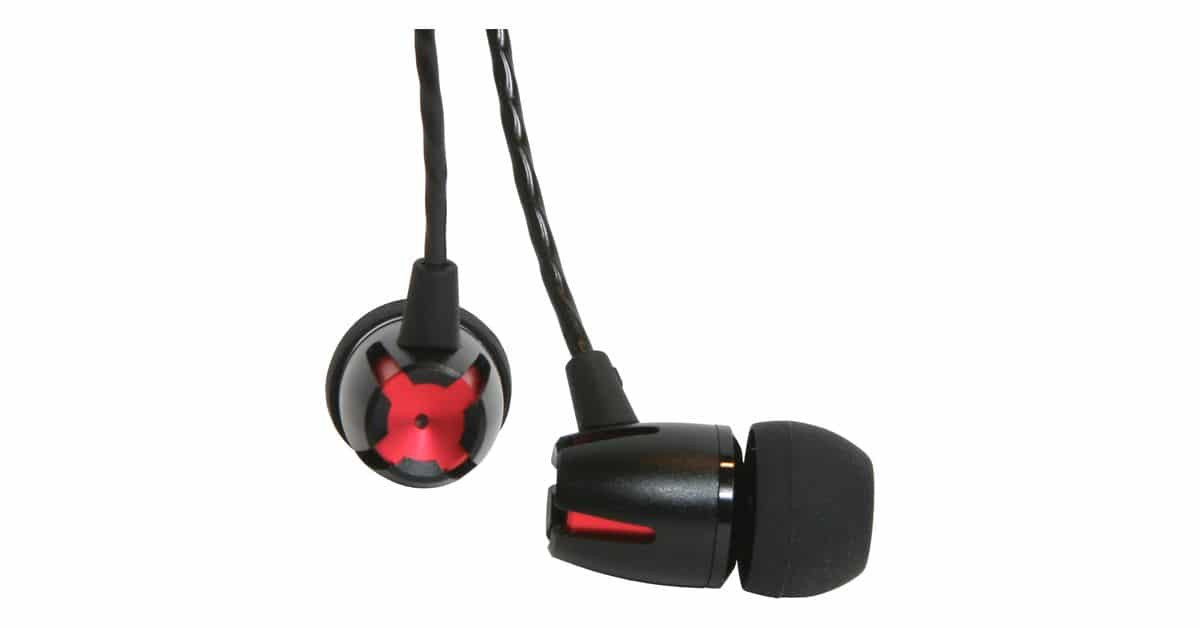

EB4 Specifications
| Driver | Single Titanium |
|---|---|
| Frequency Response | 20Hz~20 kHz - ± 3dB |
| Impedance | 16 Ohms |
| Sensitivity | 102dB @ 1 kHz 126mV |
| Max Input Power | 5mW |
| Transducer Type | Dynamic |
| Plug | 3.5mm TRS |
| Cord Length | 51" |
| Accessories | Small, Medium and Large Silicone Gel Sleeves |
