Product Description

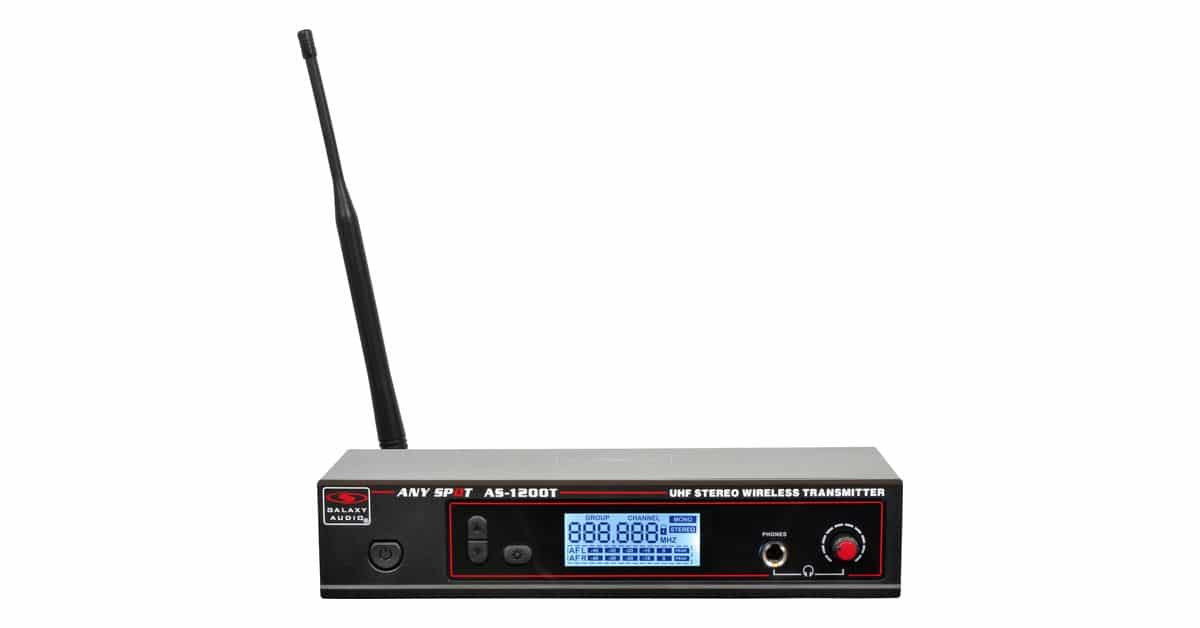

Galaxy Audio AS-1200T* 1200 Series Transmitter
- 210 Selectable UHF Frequencies
- Transmits in Stereo or Mono
- Backlit LCD Display (Displays Group, Channel, Frequency, Stereo, Mono, Right/Left AF Level, and Lock)
- Line Level x 2-XLR/¼” Combo Jacks
- AF L/R Indicator
- RF Output 10 mW
- Detachable BNC Antenna Included
SPECIFICATIONS
| Main Frame Size | EIA STANDARD 1/2 U |
|---|---|
| Modulation Mode | FM Stereo Modulation |
| RF Output | 10 mW |
| Max Audio Input Level | +6dBV |
| Gain Adjustment Range | 40dB |
| Input Impedance | 100kΩ |
| Controls | Headphone Volume, Up/Down, Settings, and Power Button |
| Audio Input | Line Level X 2, XLR / 1/4" Combo Jack |
| Audio Output | 1/4" Headphone Out |
| XLR Input | Impedance balanced Pin 1: Ground (cable shield) Pin 2: Audio + Pin 3: No Audio - |
| Transmitter Antenna | Detachable 1/2 Wave BNC Antenna |
| Dimensions | 1.5" x 8.3" x 3.78" (38 x 212 x 96 mm) (HxWxD) |
| Weight | 22 oz. (635 g) |
| Power Requirements | 12-18 V dc at 300mA supplied by external power supply |
