Product Description

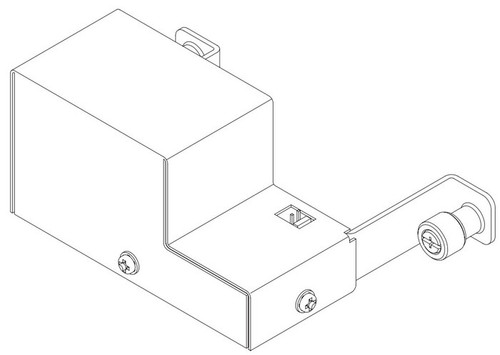

ETC URTO Unison Ride-Thru Option Kit
The Unison RideThru option is one of two PowerSupport options designed for use in the ERn Control Enclosure and the DRd Dimming Enclosure when used with a Paradigm Architectural Control Processor. The RideThru option will provide power to the Paradigm Control Processor for at least 12 seconds during brief power outages or dropouts.
APPLICATIONS
• Houses of Worship
• Hotels • Convention Centers
• Theaters
• Meeting Rooms
• Schools
• Museums
• Restaurants
• Themed Entertainment
FEATURES
• Designed for use in all Unison DRd and ERn Enclosures
• Compatible with Paradigm Architectural Control Processors.
• Provides a minimum of 12 seconds of back-up power for a single Paradigm Architectural Control Processor
• Automatically engages when power is lost
• Recharges during normal power operation
GENERAL
• UL and cUL LISTED
• CE marked
SPECS
GENERAL
• Provides power for a single Architectural Control Processor for at least 12 seconds
• UL and cUL LISTED
• CE Marked
FUNCTIONAL
• Designed for use in all Unison DRd and ERn Rack Enclosures
• Compatible with the Paradigm Architectural Control Processor
• Seamless transfer from charge to power output without user intervention
• Recharges during normal power operation
• Prevents the Architectural Control Processor from rebooting when power returns
- Allows for immediate control of the full system as soon as normal power is present
MECHANICAL
• Mounts inside the Unison DRd or ERn Rack Enclosure
• Required connections made using included two-wire harness with no additional wiring required
ELECTRICAL
• Seamless transfer to battery power upon loss of incoming line power
• Provides 24vDC power for control processor during power loss
• Provides backup power for at least 12 seconds during power loss
• Automatically recharges from power feed
• Charging voltage 10.6V +/- 0.5 volts
• Factory provided connectors for wiring terminations
• UL and cUL LISTED, CE Marked
THERMAL
• Ambient room temperature: 0-40°C / 32-104°F
• Ambient humidity: 30-90% non-condensing.
