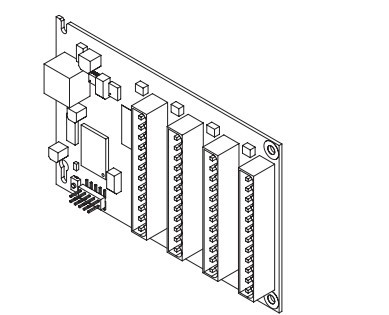

ETC Unison DRD-FLO DRd 4 Wire Fluorescent Option Kit, Refurbished

Refurbished ETC DRd 4-Wire Fluorescent Option Kit - Supports 24 loops of 4 wire (0-10V) ballasts. Cannot be used in the same enclosure as DRd-DALI.

Part #7183a1069

The Unison DRd Fluorescent Option provides 0-10 vDC control output for up to 24 individual control circuits for use with 4-wire fluorescent ballasts. The Fluorescent Option provides 0-10 volt control and requires no additional configuration during the dimming enclosure set-up. APPLICATIONS • Houses of Worship • Hotels • Convention Centers • Meeting Rooms • Schools • Museums • Themed Entertainment Features • Designed for use in Unison DRd Enclosures • Compatible with SmartLink and Paradigm Architectural Control Processors • 0-10 volt DC control for 4-wire ballasts • Up to 24 circuits of control, functionally coupled to the dimmer outputs General • UL and cUL LISTED • CE marked

Ordering Information

Unison DRd Fluorescent Option Model Description

DRd-FLO Unison DRd Fluorescent Option Kit

Note: The DRd-FLO option fits inside Unison DRd Rack Enclosures

S p e ci f ic a t i o n s

GENERAL

• UL and cUL LISTED • CE Marked Functional

FUNCTIONAL

• Number of available outputs dependant on Rack Enclosure - Support for up to 24 individual outputs when used in a DRd12 Rack Enclosure - Support for up to 12 individual outputs when used in a DRd6 Rack Enclosure • Outputs functionally coupled one-to-one with the dimming outputs Mechanical

MECHANICAL

• Designed to mount inside of Unison DRd dimming enclosures • Wiring connections made using removable screw terminal connections Electrical •

ELECTRICAL

Output connections are optically isolated • Provides 0-10VDC control signal, up to 400mA per channel • Support for up to 50 ballasts on each output channel • Terminals provided for all wiring connections • Support for 12-24 AWG wiring

THERMAL • Ambient room temperature: 0-40°C / 32-104°F • Ambient humidity: 30-90% non-condensing
