Product Description
ETC TAP-41-U Echoflex Correlated Color Temperature Photo Sensor TAP-41
Overview
The TAP-41 (Task Ambient Photo) sensor incorporates correlated color temperature (CCT) with light intensity monitoring. Facilities can now have a superior office experience that responds dynamically throughout the day. The TAP-41 automates white color temperature and dimming level for LED fixtures.
A lighting control system that includes a TAP-41 sensor, combined with an Echoflex ELED2 Tunable White Dimming controller, is a reliable and simple way to enhance the work environment and increase energy savings.
The sensor provides light level monitoring, up to 100,000 lux (9,290 foot candles), making it suitable for both closed and open loop daylighting applications. Its broad color temperature range, from 2,000 to 7,500 kelvin, provides feedback of the combined natural and artificial light color temperature.
Advanced solar energy harvesting and power management features eliminate battery needs. After installation, the sensor can operate with light exposure as low as 50 lux (5 fc) for 5 minutes. When fully charged, the TAP-41 sensor can operate for more than 72 hours in darkness.
The sensor incorporates diagnostic and configuration features to ensure reliable communications and solar harvesting capability. Solar energy harvesting under existing light levels is provided on demand through LED indication. An accelerated transmission mode is available when energy code compliance inspectors need to verify system operation.

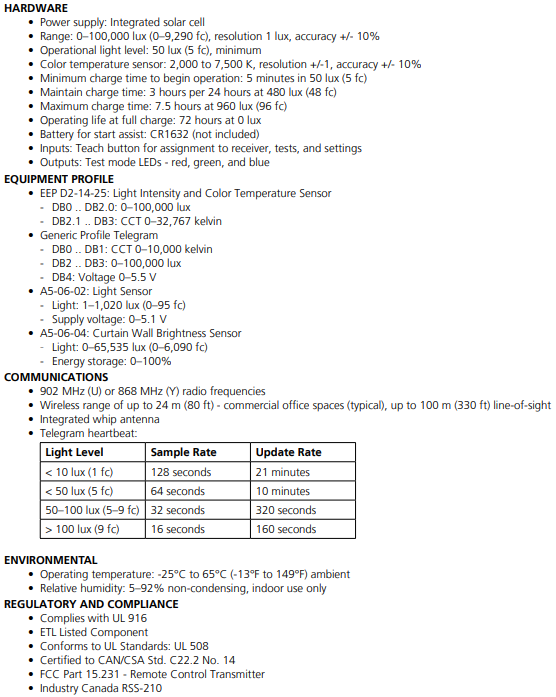

Features
- Solar powered wireless photo sensor for daylight harvesting applications
- Measures 0–100,000 lux and color temperature within a range of 2,000 to 7,500 kelvin
- Available in white and black finishes
- Solar harvesting light level indicated via tricolored LEDs
- Reliable radio reception range of 24 m (80 ft) - commercial office spaces (typical), up to 100 m (330 ft) line of sight
- Simple Tap configuration of daylighting settings
- Up to 72 hours operation in complete darkness
- Quick start operation at low light level with minimal charging time
- Batteries not required, assisted start option available
- Mounting options include integrated magnets for T-Bar or wire strap for ceiling tile. Provisions for screw mounting and double-sided tape (not included)
- Energy code compliance test mode
