    • ETC SELD40XTI-D-5 D40XTI Studio Daylight IP66 Wash Lighting Fixture, Silver

    MSRP: $2,040.00
    $1,972.00
    (You save $68.00 )
    SKU:
    SELD40XTI-D-5
    UPC:
    7410A1107-5
    Condition:
    New
    Availability:
    Typically ships in 1-2 business days
    Shipping:
    Calculated at Checkout
    Adding to cart… category.add_cart_announcement

    Product Description

    ETC D40XTI Studio Daylight IP66 Wash Lighting Fixture, Silver

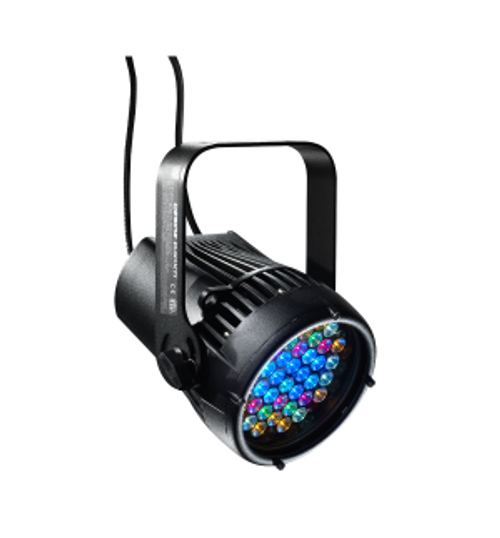

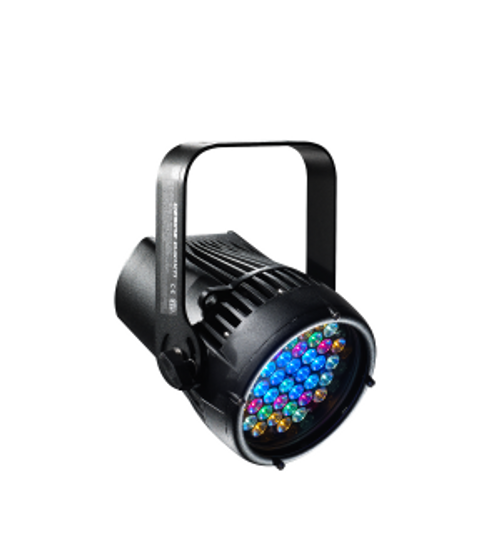

    (Photo is for illustrative purposes only; fixture is silver in color).

    The Selador® Desire D40XTI brings the amazing control of the sevencolor x7 Color System™ to your permanent application. With its IP66 rating, this fixture is ready for installation inside or outside - wherever you need it. The Selador x7 Color System produces the widest range of spectrally-balanced saturated and tinted color choices available. The D40XTI offers a rugged die-cast enclosure, noiseless fan-free operation, and multiple lens options that can be changed on site.

    D40XTI LED ARRAYS The D40XTI luminaire is available with any one of the following color arrays to best suit the intended application.

    • D40XTI Vivid™: Best all-around use as a color-changing wash fixture

    • D40XTI Lustr+™: Optimized with six colors plus high-intensity white LEDs to create an ideal frontlight wash fixture; fullrange color, with an emphasis on lighter colors and white

    •D40XTI Studio HD: Combines warm-white and cool-white LEDs with five carefully-chosen x7 LED colors, to fill in white LED spectral apps with variable color-temperature mixing for the richest variable white light possible in an LED fixture

    Also available in the following static-white arrays:

    • D40XTI Studio Daylight – Contains forty 5600K LEDs for high-intensity, non-variable cool-white output

    • D40XTI Studio Tungsten – Contains forty 3000K LEDs for high-intensity, non-variable warm-white output

    ORDERING INFORMATION

    Selador Desire D40XTI

    MODEL DESCRIPTION

    • SELD40XTI-V D40 Vivid wash fixture
    • SELD40XTI-L D40 Lustr+ frontlight wash fixture
    • SELD40XTI-H D40 Studio HD wash fixture
    • SELD40XTI-D D40 Studio Daylight wash fixture
    • SELD40XTI-T D40 Studio Tungsten wash fixture
    • Note: D40XTI luminaires ship with a hanging yoke, attached leads and a data termination board. C-clamp, lenses or other accessories are not included.

    SPECIFICATIONS

    GENERAL • Easy setup via any RDM device, such as ETC Gateways and Gadget • Color-mixing arrays have 40 LEDs for variable-color washes • Static-color arrays have 40 LEDs for white-light washes • ETL Listed to UL1598 • IP66-rated for exterior, wet-location use • Data-termination board for easy installation (included) • Meets 3G ANSI C136.31 Vibration standard for bridge applications

    PHYSICAL • Rugged die-cast, all-metal housing • Accessory ring for installation of secondary lenses • Available in black (standard), white, silver (optional) or custom colors (contact factory) • Hanging yoke standard • Cable diameter: Power 0.36”/ Data 0.34” • Effective Projected Area (EPA): 0.74

    ELECTRICAL • 100VAC to 240VAC 50/60Hz universal power input • Waterproof, 72” outdoor-rated power lead • Up to 10 fixtures (15A max) may be fed on the same circuit • Requires power from a non-dim source • Inrush - 120V: 15A (First half-cycle) - 240V: 40A (First half-cycle)

    LED* • 50,000-hour-LED life (50,000 hours to 70% intensity) • 40 Luxeon® Rebel LED emitters • Studio Daylight and Studio Tungsten use Rebel ES white-light emitters for higher output *See additional LED notes on page three

    COLOR • Exclusive x7 Color System™ seven-color LED array • Broad-spectrum color interacts seamlessly with conventional sources • Beautifully illuminates skin tones and objects for natural appearance and high color-rendering • Exclusive red-shift option emulates tungsten dimming performance (not available on static-white fixtures) • Studio HD array uses warm- and cool-white light emitters with additional deep-color emitters to allow variable color temperature from 2700K-6500K • Studio Tungsten and Studio Daylight provide good color rendering at very high brightness

    OPTICAL • Primary field angle of 17° and beam angle of 8° • Secondary lenses available for multiple beam-spread options • Lenses must be ordered separately • Refer to accessories chart for available lenses

    CONTROL • DMX512 In and Thru via termination board (included) • See DMX control table for operation modes • 15-bit virtual dimming engine provides smooth, high-quality theatrical fades and minimizes color-shift during dimming • RDM functionality for address and setting changes

    THERMAL • Ambient operating temperature of -4° to 104°F (-20° to 40°C) • Active electronic thermal management for droop-free operation • Noiseless, fan-free convection-cooling for acoustically sensitive installations • Fixture is designed for continuous operation up to 104°F (40°C) ambient temperature and requires free flow of air around fixture housing

    ADDITIONAL ORDERING INFORMATION

    Fixture Accessories

    MODEL DESCRIPTION

    • D40XTIWM Wall-Mount Kit (black)
    • D40XTIWM-1 Wall-Mount Kit (white)
    • D40XTISPM Single Pole-Mount Kit (black)
    • D40XTISPM-1 Single Pole-Mount Kit (white)
    • D40XTIDPM Double Pole-Mount Kit (black)
    • D40XTIDPM-1 Double Pole-Mount Kit (white)
    • D40XTIL Egg Crate (black)
    • D40XTIL-1 Egg Crate (white)
    • D40XTIHH Half Shield (black)
    • D40XTIHH-1 Half Shield (white)
    • 400CC C-Clamp (does not ship with fixture)
    • 400SC Safety Cable (32”)

    ADDITIONAL ORDERING INFORMATION

    Secondary Lens Options

    MODEL DESCRIPTION: The following lenses are cut for D40XTI fixtures and create round, linear or oblong field patterns as described below. These lenses are not for use in Selador Classic™ fixtures.

    Narrow Linear Field Note: This is the same material as Selador Classic lenses

    • D40XTI-LVN Very Narrow lens Linear lenses may be combined to create desired field size
    • D40XTI-LN Narrow lens
    • D40XTI-LM Medium lens
    • D40XTI-LW Wide lens
    • D40XTI-LXW Extra Wide lens

    Round Field Any one of the following round lenses may be installed permanently in the fixture at the factory as a special order

    • D40XTI-RVN Very Narrow lens (round field)
    • D40XTI-RN Narrow lens (round field)
    • D40XTI-RM Medium lens (round field)
    • D40XTI-RW Wide lens (round field)
    • D40XTI-RXW Extra Wide lens (round field)

    Oblong Field

    • D40XTI-ON Narrow lens (oblong field)
    • D40XTI-OM Medium lens (oblong field)
    • D40XTI-OW Wide lens (oblong field)

    NOTES ABOUT LED LUMINAIRES All LED sources experience some reduction of light output and some color shift over time. LED output will vary with thermal conditions. Thermal conditions can be affected by ambient temperatures and orientation. See the D40 Ambient Temperature and Power Budgeting Guide for more details. Based on the LED manufacturer’s B50 L70 specification, a Selador luminaire will achieve ~70% of its initial output after 50,000 hours of typical usage. In individual situations, LEDs will be used for different durations and at different levels. This can eventually lead to minor alterations in color performance, necessitating slight adjustments to presets, cues or programs.

    CRI AND CQS RATINGS Desire fixtures were evaluated for CRI and CQS performance using measured output spectrum and optimized mix solutions for a best spectral match to black body sources at 3200K and 5600K.

    All D40XTI Studio luminaire versions provide excellent color rendering to the eye, particularly at higher color-temperature settings, such as 5600K. In most cases, the Duv is 0.000. A Duv rating of 0.000 indicates that the color mix used is exactly on the black body line, with no green or magenta tint.

    Notes to videographers:

    • All Desire fixtures use Luxeon Rebel ES emitters specified by the strictest binning standards. However, on-camera LED response varies with different cameras and settings. Daylight LEDs can appear slightly greener than other 5600K sources on camera.

    • Fixtures with non-variable, single-color daylight arrays, such as Studio Daylight, may use standard color-correction filters (Rosco 3314, Rosco 3316 or similar) to achieve the desired on-camera result.

    • Camera tests using your specific setup are recommended to determine the best configuration.

    CONTROL OPTIONS User settings on D40XTI fixtures allow multiple operational modes and settings for either console operation via DMX protocol or standalone operation. The expanded LCD display provides easy navigation to all possible settings and choices. Some of the setting options are: • Multiple DMX options, ranging from a simple RGB profile – which effectively controls all seven LED colors via three channels – to nine-channel ‘direct’ color and intensity control • Multiple dimming curve options • Preset colors and sequences for standalone (no console required) operation • White-point selection: white light and color behavior based on a specific color-temperature white light, such as 3200K or 5600K • Loss of data behavior options: instant off, hold last look for two minutes, etc. • Output modes: Three output options that offer the user a choice between maximum output and maximum consistency See the user manual for a complete explanation of all of the control settings and options for the D40XTI

    Other Details

    Warranty Coverage. ETC WILL ONLY BE OBLIGATED TO HONOR THE WARRANTY SET OUT BELOW UPON RECEIPT OF FULL PAYMENT OF THE ORDER. Electronic Theatre Controls, Inc. (“ETC”) warrants to the original owner or retail customer (“Customer”) that during the warranty period defined below, ETC will repair or replace its Products that are defective in materials or workmanship which cause the Product to fail to operate in accordance with ETC’s published specifications for the Product in effect as of the date of shipment, subject to the terms of this limited warranty. The warranty period of box Products shall begin on the date of shipment (“Warranty Start Date”), except the Warranty State Date shall begin on the date of energization for Orders which include energization performed by ETC or an authorized service provider acting on ETC’s behalf. If no energization date is recorded, however, the Warranty State Date shall begin on the date of shipment. The controlling warranty, terms and conditions, and product warranty periods is available at the time of order acknowledgment, either by hard copy or by the PDF document found via the internet link listed on the order acknowledgment as of the date of the order acknowledgment. If ETC shall fail to repair or replace defective Products within a reasonable time after they are returned to ETC, or if ETC shall wrongfully fail to make delivery or shall wrongfully repudiate this contract, then Customer shall be entitled to recover from ETC such part of the purchase price as has been paid by Customer to ETC. The remedy stated in the preceding sentence shall be Customer’s exclusive remedy for any breach, non-delivery, or repudiation by ETC or for any other liability of ETC to Customer. This exclusive remedy shall not be deemed to have failed its essential purpose so long as ETC is willing and able to repair or replace defective Products in the prescribed manner. Warranty Exclusions. This Warranty does not impose any liability or duty upon ETC for: (i) any Product or part of a Product damaged by or subject to accident, negligence, alteration, abuse or misuse by Customer, or any accessories or parts not supplied by ETC; (ii) any damage caused by the unauthorized adjustment, repair or service of the Products by anyone other than ETC or its authorized repair agents; (iii) any damage, to any Product, or part of a Product caused by or due to an act of God, any catastrophe resulting from earthquake, fire, flood, explosion, inability to obtain materials or utilities, or any other cause beyond the reasonable control of ETC. This warranty also does not cover “consumable” parts such as fuses, lamps, color media or components which may be warranted directly to the Customer by the original manufacturer. This Warranty does not extend to items not manufactured by ETC. Freight terms on warranty repairs are FOB ETC factory or designated repair facility. Collect shipments or freight allowances will not be accepted. ELECTRONIC THEATRE CONTROLS, INC.’S STANDARD TERMS AND CONDITIONS OF SALE AND WARRANTY Rev. 6/25/2019 Page 3 of 3 ETC’s sole responsibility under this Warranty shall be to repair or replace at ETC’s option such Products or parts of Products as shall be determined to be defective on ETC’s inspection. ETC, at its option, may perform on-site warranty repairs. If ETC chooses to replace the Product and is not able to do so because it has been discontinued or is not available, ETC may replace it with a comparable product. ETC reserves the right to use new, re-worked, repaired, or refurbished parts in the repair or replacement of any Product covered by this Warranty. ETC will not assume any responsibility for any labor expended or materials used to repair any Products without ETC’s prior written authorization. ETC SHALL NOT BE RESPONSIBLE FOR ANY INCIDENTAL, GENERAL OR CONSEQUENTIAL DAMAGES, DAMAGES TO PROPERTY, DAMAGES FOR LOSS OF USE, TIME, PROFITS OR INCOME, OR ANY OTHER DAMAGES. The Customer’s obligations during the warranty period under this Warranty are to notify ETC within one week of any suspected defect and to return the Products prepaid to ETC at ETC’s factory or authorized service center. The one week notice period does not apply to claims for shortage or damaged Products. This written Warranty is intended as a complete and exclusive statement of the terms thereof. Prior dealings or trade usage shall not be relevant to modify, explain or vary this Warranty. Acceptance of, or acquiescing in, a course of performance under this Warranty shall not modify the meaning of this Warranty even though either party has knowledge of the performance and a chance to object. THIS LIMITED WARRANTY IS THE ONLY WARRANTY APPLICABLE TO THE EQUIPMENT AND REPLACES ALL OTHER WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. SPECIFICALLY, EXCEPT AS PROVIDED HEREIN, ETC UNDERTAKES NO RESPONSIBILITY FOR THE QUALITY OF THE PRODUCT OR THAT THE PRODUCT WILL BE FIT FOR ANY PARTICULAR PURPOSE FOR WHICH CUSTOMER MAY BE BUYING THE PRODUCT. ANY IMPLIED WARRANTY IS LIMITED IN DURATION TO THE WARRANTY PERIOD. NO ORAL OR WRITTEN INFORMATION, OR ADVICE GIVEN BY ETC, IT’S AGENTS OR EMPLOYEES, SHALL CREATE A WARRANTY OR IN ANY WAY INCREASE THE SCOPE OF THIS LIMITED WARRANTY. United States, Latin American, and Canadian Dealers: ETC Products forwarded outside of the United States, Latin America and/or Canada will only be covered by the Warranty Statement applicable to the region in question, and therefore this Warranty may or may not apply. Please contact ETC for the applicable warranty statement.
