Product Description
ETC RSN-OPTO-16R Response Opto-Splitter - 16 Port RJ45 Rack-mount
ETC Part #4267A1033
From small stage productions to large architectural installations, ETC provides the systems, expertise, and equipment for data distribution. ETC’s aim is to provide seamless service and integration for those systems backed by our core competencies and development expertise. Response Opto-Splitters provide DMX distribution with integrated RDM capability, giving our users a true, fully-integrated ETC system with data communication that meets all your needs.
Infrastructure that embraces change
ETC fixtures keep getting smarter. With a fully integrated setup, users can utilize our update tool, UpdaterAtor, to access the latest firmware for their system. With ETC gateways, opto-splitters, and fixtures, users don’t have to fight infrastructure to update easily.
The ins and outs of power and data
You want your system to be tamperproof, but accessible. On the Response Opto-Splitter, the mounting configurations are completely customizable to the user. On tour? You might want all your ports on the front. Permanent installation? Try the back.
Data where you need it
DIN rail and wall-mount splitters are a contractor’s best friend. The included 48 VDC power supply makes installation straightforward.
UL 924 Listed
The Response Opto-Splitter is approved for the U.S. emergency controls standard UL 924 when DIN Rail mounted in the OPTO-BOX or OPTO-DBOX configurations. This means the Opto-Splitter is a safe and reliable way to distribute control bypass instructions as part of your emergency lighting system.
GENERAL INFORMATION
The ETC Response Opto-Splitter provides quality and reliable DMX data distribution. Using industry-standard DMX and RDM, the Response Opto-Splitter unlocks the power of your DMX system.
FEATURES
• Multi-port DMX splitter with DMX-in and DMX-thru
• Optically isolated DMX512 ports
• Supports Remote Device Management (RDM) Protocol

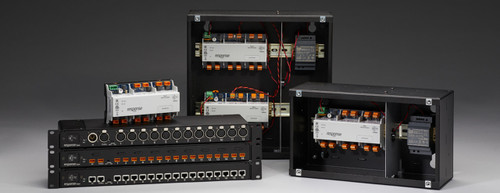

• DIN rail and rack-mount versions
• Power and DMX presence status indicators
• Supports update of connected ETC fixtures
• DIN enclosures variants available for UL 924 Emergency Control Bypass applications
APPLICATIONS
• Road houses and touring
• University/professional theatres
• Hotels and Convention halls
• System integration
• Houses of worship
• House lighting
• Museums
• Themed environments
SPECIFICATIONS
FUNCTIONAL
• No configuration required
• Supports DMX512, DMX512 (1990), and DMX512-A
• Supports ANSI E1.20 Remote Device Management (RDM)
• Supports up to 256 total RDM devices
MECHANICAL
• Rack-mount form factor: - Fabricated from aluminum - Black, Fine-textured, powder-coat finish - Full 19” equipment rack width - Front or rear facing mounting options
• DIN rail form factor: - Molded plastic enclosure - Mounting complies with DIN43880 (35/7.5 rail) - Unit is 9 DIN units wide - DIN installation enclosure available
• Power and data activity LED indicators - Blue power indicator - Green DMX activity indicator
ENVIRONMENTAL
• Ambient operating temperature: 0°–40° C (32°–104° F)
• Operating humidity: 5–95% non-condensing
• Storage temperature: -40°–70° C (-40°–158° F)
ELECTRICAL
• Supports DMX input and DMX thru
• Provides optically isolated DMX/RDM outputs
• Rack-mount form factor: - 100–240 VAC 50/60 Hz power input - User configurable front or rear IEC C13 power connector position - 35 W max power draw - XLR, RJ45 and Terminal connector options
• DIN rail form factor: - 12–48 VDC power input - 8 W max power draw - Wiring connections use plugable rising clamp terminals
REGULATORY AND COMPLIANCE
• cETLus Listed
• cETLus Listed to UL 924 (Emergency DIN Boxes Only)
• CE compliant
• EAC certified
• RoHS compliant
• WEEE
ADDITIONAL INFORMATION
DMX512
Often shortened to DMX (Digital Multiplex), this communication protocol is used mainly to control dimmers and multi-parameter fixtures. A universe of DMX is defined as 512 channels. DMX sends a nearly continuous stream of level information for each control channel. It is a form of RS-485 digital serial communication.
RDM
Remote Device Management (ANSI E1.20) is a protocol enhancement to DMX512 that allows low-speed bidirectional communication between a system controller and attached RDM devices over a standard DMX line. This protocol allows remote configuration, status monitoring, and management of devices.
