Product Description
ETC RSN-MIDI-RM Response MIDI Gateway - Rack-mount Style
The Response Show Control Gateways are a family of reliable, portable devices that let your Eos family console communicate with MIDI, SMPTE or Serial devices.
The Response MIDI Gateway can send and receive info in all flavors of MIDI: Note, Show Control (MSC), and Time Code (MTC). The Gateway also translates MIDI to and from UDP for ultimate integration with ETC and third-party products. The Response SMPTE Gateway brings SMPTE LTC timecode signal to your Eosfamily console reliably to make sure everything stays on track. The Response Serial Gateway ensures reliable bi-directional RS-232 data communication for system integration.

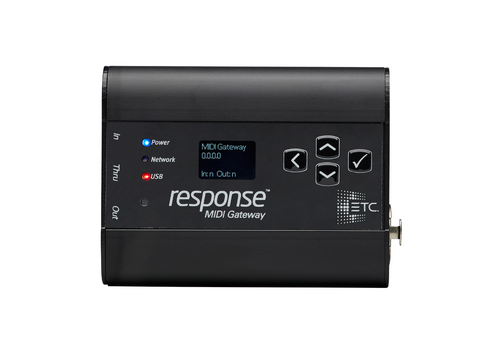

Please note picture is for illustrative purposes only.
APPLICATIONS
• Houses of worship
• High schools
• Community theaters
• Academic theaters
• Touring
• Tech table
• System integration
• Ideal for venues and applications with portable show control
FEATURES
• MIDI:
- Supports Note, Show Control (MSC), and Time Code (MTC)
• SMPTE:
- Supports SMPTE LTC
- 3.5 mm (1/8 in) headphone jack adapter to XLR converter included with Backpack Style units
• Serial:
- Supports bi-directional RS-232
• Supports ACN or UDP for network communication
• Onboard configuration using four-button interface.
• Power and network status indicators
• Power over Ethernet (PoE) or USB power
• Compatible with Concert software
• Compatible with Eos and ETCnomad software
• Compatible with UpdaterAtor software
SPECS
FUNCTIONAL
- MIDI
• Distributes MIDI over USB or Ethernet
• Supports Standard MIDI over USB device class
• Supports Net3/ACN (ANSI E1.17)
• Supports MIDI over UDP
FUNCTIONAL
- SMPTE
• Distributes SMPTE over USB or Ethernet
• Supports Net3/ACN (ANSI E1.17)
• Supports SMPTE over UDP
FUNCTIONAL
- SERIAL
• Distributes Serial over USB or Ethernet
• Supports Net3/ACN (ANSI E1.17)
• Supports Serial over UDP
• Supports standard USB Serial Port Emulation Class
MECHANICAL
• Finished in fine-textured, powder-coat paint with matching overlay
• SMPTE
- 3-pin Female XLR Connector
• MIDI
- In/Out/Thru ports
• Serial
- 9 Pin D-sub Connector
• RJ45 Port for connection to lighting network
- Configurable on rack-mount units
• Type B USB female connection
• Intuitive four-button interface
• Onboard display for identification, status and configuration
• Status and activity indicators
- Blue power indicator
- Green network activity indicator
- Red USB activity indicator
ELECTRICAL
• 5 V USB power
• RJ45 connector compliant with IEEE 802.3i for 10BASE-T, 802.3u for 100BASE-TX and 802.3af for Power over Ethernet
THERMAL
• Ambient temperature: 0°–40° C (32°–104° F)
• Ambient humidity: 5–95% non-condensing
REGULATORY AND COMPLIANCE
• cETLus Listed
• CE compliant
• RoHS compliant
• WEEE
