Product Description
ETC RSN-LV R3 Response 0-10V Gateway R3, DIN Rail Mounted
Overview
The Response 0-10V Gateway accepts streaming ACN (sACN) and DMX control input to provide 24 outputs of 0–10 V control. It is ideal for both retrofit and new power control system installations that require four-wire LED drivers and fluorescent ballasts. The gateway also accepts a contact input to set each channel’s output to a programmed level for use in UL 924 emergency lighting applications with UL 924 Listed Directly Controlled Emergency Luminaires (DCEL).
Features
- 24 independent 0–10 V control outputs
- DMX and/or sACN control input
- Configurable dimming curve per output
- Contact input for emergency lighting with local test button
- Onboard configuration using four-button interface
- Remote configurable using Concert software
- Onboard display for status and configuration
- Power, network, and emergency status indicators
- 12–24 VDC power input
- Power over Ethernet (PoE) power input for non-emergency applications
- UL 924 Listed for emergency lighting applications with UL 924 Listed Directly Controlled Emergency Luminaires (DCEL)

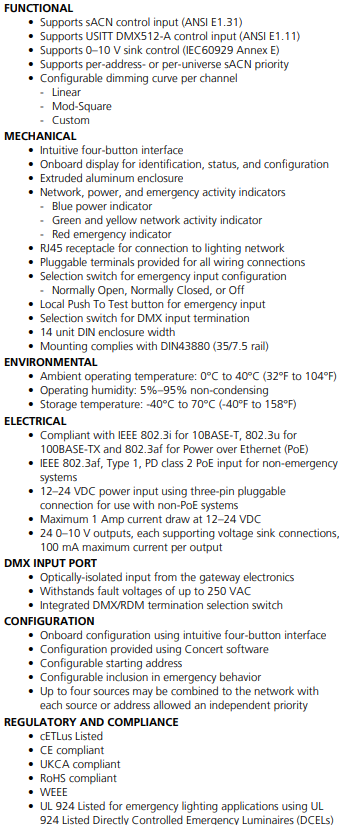

Specifications
