Product Description
ETC P-REP Paradigm Station Repeater Module, Repair
Part# 7182A1003
| 1. This is for the repair of an existing item. |
| 2. Once you place your order, then we will email you with an RMA# and shipping instructions so that you can ship your item out for repair. |
| 3. Please note that it may take up to 1-business day for us to send you the RMA# and shipping instructions. |
| 4. You will pay for the cost of outbound shipping on the repair. You can also decide the speed at which you want to ship the item out for repair. |
| 5. Please provide us with any technical notes about the issues that you are having with this product, so that they can be address during the repair of the unit. |
| 6. The repair will take approximately 1-2 weeks from the date of receipt of the item. |
| 7. The repaired unit will then be shipped back to you via the outbound shipping method that you select with this order. (Free, Ground, 2-Day, Overnight). |
| 8. Please call us at 1-866-457-5937 for any technical support questions. |
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
A member of ETC’s Paradigm family of lighting control the Paradigm Station Repeater Module was designed for use with the Unison ERn control enclosures with Paradigm control. The Paradigm Station Repeater Module offers support for longer wire runs to Paradigm stations and touchscreens when added to a Station Power Module.

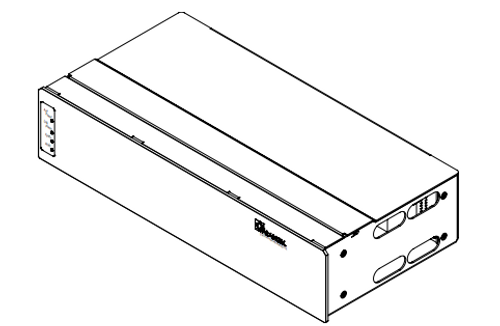

Please note the picture is for illustrative purposes only.
APPLICATIONS
• Houses of worship
• Schools
• Restaurants
• Hotels
• Museums
• Casinos
• Ballrooms
FEATURES
• Designed for use in Unison ERn control enclosures
• Plug and Play – ready to go out of the box, no software or external programming required
• LinkConnect – Echelon’s LonTalk protocol with LinkPower, the two wire topology-free system gives you the freedom to put station where you need them
- One additional 500 m segment of wiring per system with Repeater
- Two additional 500 m segments of wiring per system with Dual Repeat
• Auxiliary power – 24 VDC power to support Unison interface stations Paradigm Touchscreens
- Up to 4 touchscreen stations may be used per P-REP or P-DREP
REGULATORY AND COMPLIANCE
• cULus Listed
• CE Compliant
SPECS
FUNCTIONAL
• Repeater module provides an additional 1,640 ft (500 m) of station bus from the ERn enclosure
• Dual Repeater module provides two additional 1,640 ft (500 m) station bus segments from the ERn enclosure
• Provides 24 V auxiliary power for interface and touchscreen stations
MECHANICAL
• Designed for use in the Unison Control Series (ERn) Enclosures
• 18-gauge formed steel construction
• Fine-texture, scratch resistant, epoxy paint
• Wall-mount and 19 in rack-mount variants available
• Convection Cooled
• Fully contained plug in module with no discrete wire connections
• Tool free installation
• Front panel status indicators
ELECTRICAL
• No discrete wiring connections required for use in an ERn control enclosure
• Echelon LonTalk with LinkPower communications with remote devices, including button stations, button/fader stations, touchscreen stations, sensors, and third party LonMARK compliant products
• 24 V Auxiliary power for interface and touchscreen stations
THERMAL
• Ambient room temperature: 0°–40° C / 32°–104° F
• Ambient humidity: 10–90% non-condensing
