Product Description
ETC FD-SBOX-T S-Box Serial Output Repeater
Overview
The F-Drive S-Box is an accessory that greatly expands the connection capabilities of the F-Drive LED driver system. With the S-Box, system designers can utliize a single channel of F-Drive output to control up to three Navis 50 luminaires or other constant-current loads. S-Box is available with RJ45 or two-pin terminal outputs.
The S-Box is compatible with constant-current output cards including the F-Drive RX CC 8 Card and FTW 8 Card, F-Drive R12 CC-150 Card, and W1 CC drivers. Installations using third-party luminaires will benefit from the increased compatability options S-Box adds to the centralized F-Drive system. The F-Drive S-Box allows more constant-current luminaires to be utilized on a single output channel, increasing luminaire capacity.
Features
- Converts a single channel into connections for up to three constant-current luminaires
- Receives an RJ45 input from an F-Drive constant-current card
- Includes a thru to pass on additional, unused channels from the output card
- Terminal model (FD-SBOX-T) supports constant-current loads requiring 200–700 mA
- RJ45 model (FD-SBOX-R) supports ArcSystem Navis 50 White or Fade to Warm luminaires

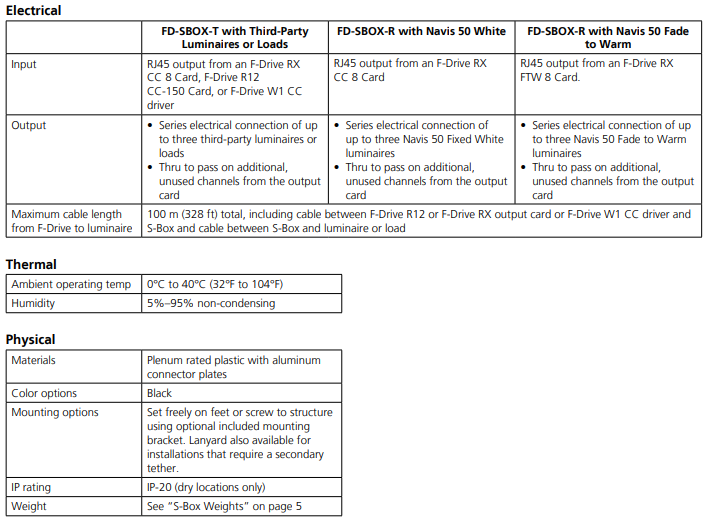

Specifications
