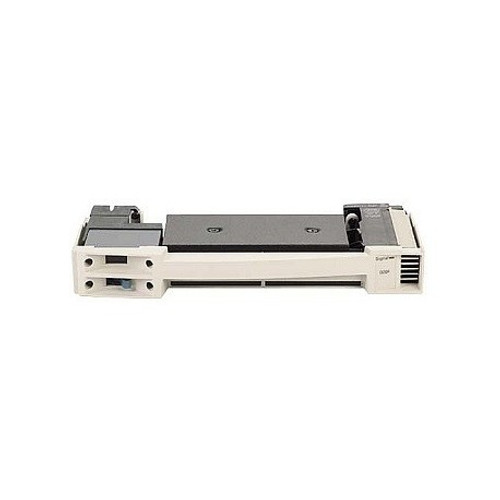

ETC ELV10 Dual 10A Electronic Reverse Phase Module
The Electronic Reverse Phase Control Dimmer Module is a dual, plug-in dimmer for use in the Unison Dimming Series rack enclosures. The Electronic Reverse Phase Control Module provides cost effective, reverse phase angle dimming, of electronic transformer circuits. The design features high-density modular assembly, fully magnetic and fully rated circuit breakers, and electronic low-end set controls via control module
APPLICATIONS
• Designed for use in 100-120V Unison DRd rack enclosures
• Electronic low voltage transformers
• Electronic LED power supplies requiring reverse phase control
FEATURES
• Two 1.2kW dimmers per module
• High-density modular assembly
• Die-cast aluminum chassis
• Fully magnetic circuit breaker
• Electronic low-end set controls
GENERAL
• 100,000A Short Circuit Current Rating (SCCR)
• UL and cUL LISTED
SPECS
GENERAL
• Dual density, plug in modules, for use in Unison Dimming Series rack enclosures
• Provides Reverse Phase Control dimming for electronic low voltage transformers
• UL and cUL Listed for continuous duty at 100% of rated load
- ELV10 – 1.2kW
PHYSICAL
• Modular plug-in assemblies
• Cast aluminum chassis, finished with textured epoxy paint
CIRCUIT BREAKERS
• Fully magnetic to eliminate nuisance tripping
• 20x inrush current rating
• 125%, 10-120 seconds, must-trip rating
• Rated for 100% switching duty applications
ELECTRICAL RATINGS
• 100,000A Short Circuit Current Rating (SCCR)
• UL and cUL LISTED
• 1W minimum load
POWER DEVICE
• One control and one output LED per circuit
• 4000V isolation between control and power components
• Integral temperature sensor
EFFICIENCY
• Efficiency is 96.9%
