Product Description
ETC ELED1-EUN 120-277 LED Controller, 11.5A Relay Output
Overview
The ELED1 is a wireless power pack style lighting controller designed to operate with today’s dimmable luminaires. Combining a 120–277 VAC input, 0–10 V dimming capability and a rugged load relay, the ELED1 is ideal for individual fixture or single zone lighting control. The controller provides fixture intensity and control based on occupancy state, manual switch action, ambient light levels, and gateway commands. The ELED1 meets industry needs for performance, savings, and easy installation.
Provides intuitive lighting control based on the occupancy state monitored by linked sensors. Detection on the dimming interface adjusts the operation to switching or dimming automatically. Daylighting control sequences satisfy both open-ceiling atrium areas or traditional office spaces. Energy code support is defined within factory default settings, ensuring out-of-the-box, nationwide compliance.
Echoflex ELED products include preset functionality that allows spaces to be lit with lighting scenes. Presets can be activated from scene stations, wireless time clocks or gateways. A lockout feature allows time clocks to schedule a controller’s response to specific sensor types or stations based on time-of-day.
Echoflex offers pre-commissioning on all products sold as a system through Echoflex. Simple Tap technology allows installers and facility operators to configure settings without any special tools.
Features
- Provides open-plan shared occupancy control to maximize energy savings
- Individual fixture or single zone control with 0–10 V dimming
- Integrated daylight harvesting control with photo inhibit mode
- Occupancy control with auto ON/OFF or vacancy control with manual-ON/auto-OFF
- Automatically detects dimming loads to easily adapt to switching or dimming functions
- Built-in preset values can be used to create lighting scenes driven by wall station, time clock or gateway command
- Lockout control allows scheduling of linked responsive devices
- Pre-linking and pre-configuration available when sold as a system
- Easy installation on electrical junction boxes with 1/2 in nipple mounting bracket
- Easy commissioning options include embedded Simple Tap technology plus Garibaldi Pro, Echoflex’s in-field commissioning software
- Meets the latest revisions of California Title 24, IECC and ASHRAE 90.1 requirements

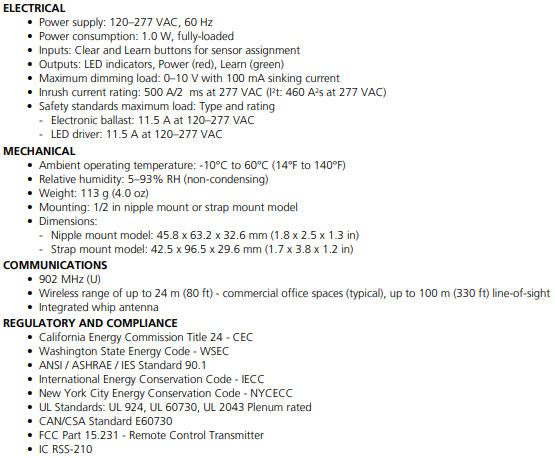

Specifications
