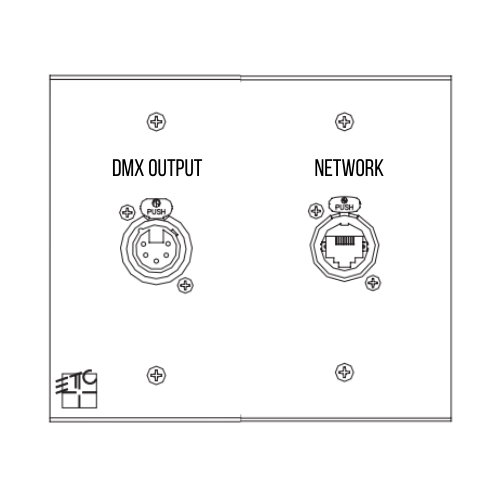

ETC ECPB UNISON/NET Plug-In Station - 2 Gang
Electronic Control Plug-in Boxes or ECPBs allow lighting controls to connect to and operate lighting and other equipment. Connections vary from industry standard DMX512 and Ethernet to portable houselight control, remote control devices and outlets.
APPLICATIONS
• An integral part of any complete lighting system installation:
- Theaters and auditoriums
- Television studios
- Houses of worship
- Museums
- Casinos
- Hospitality
FEATURES
• Surface or flush mount
• Fits in most standard back boxes depending on variation
• Data options include:
- DMX512 Input
- DMX512 Output
- Remote Focus Unit (RFU)
- Ethernet Network
- Portable Unison station
- Serial or computer interface
• AC power outlet
• Standard and custom configurations available
• DMX inputs and outputs support Belden 9729 (or equivalent) and Catagory5 cable
- Cat5 IDC termination kits provided by manufacturer upon request (ETC P/N 4100A1013)
REGULATORY AND COMPLIANCE
• UL and cUL 508A Listed
Specs
GENERAL
• Consist of the appropriate connectors required for the functional intent of the system
• Available with DMX input or output, Network, architectural control connectors and AC outlets
PHYSICAL • Faceplates made from .80” aluminum
• Finished in fine texture, scratch-resistant black powder coat
• White labels standard
- Engraving or custom legends available
• Mounts in an industry standard flush mount back box (supplied by others)
- Surface mount back boxes available from ETC
• Optional U-Bolt Kit for pipe mounting
ELECTRICAL
• Low voltage class 2 wiring for data connections
• Voltage barriers provided when line-voltage and Class 2 controls are included in the same faceplate
• Terminal block(s) supplied for contractor terminations
CONNECTOR OPTIONS
• Following standard connectors available for Plug-in Stations:
- 5-Pin male XLR connectors for DMX input
- 5-Pin female XLR connectors for DMX output
- RJ45 connectors for Network connections
- Twisted Pair
- 6-Pin female DIN connectors for Unison portable stations
• Custom combinations and custom control connections available, Contact ETC
• When using Category cable for DMX wiring request Insulation displacement connectors (IDC) at time of order.
