Product Description
ETC DRd6-12-277 240-277V Rack Enclosure
Overview
ETC’s Unison DRd Series Rack Enclosures are the workhorses behind the scenes, supporting two processor options and a variety of dimming, switching and option modules. DRd Rack Enclosures are trusted for their reliability and versatility.
Features
- All-On – clearly marked switch allows for all loads to be turned on to full, without the need for a control processor
- HighFault – protection from power spikes and surges with short circuit current ratings from 22,000 amps, up to 65,000 amps
- Regulation – monitoring and adjustment of incoming line voltage with min and max scale voltages
- Bypass – UL924-listed emergency lighting bypass input with load shedding
- Hold Last Look – dimming engine holds the last output during any loss of control
- QuickBoot – dimming engine boot time of less than 4 seconds
- HiRes Dimming – support for 16 bit DMX and over 65,000 steps of dimming
- Electronic Low Voltage Dimming – reverse phase dimming control for electronic low-voltage transformers when used with the AELV module

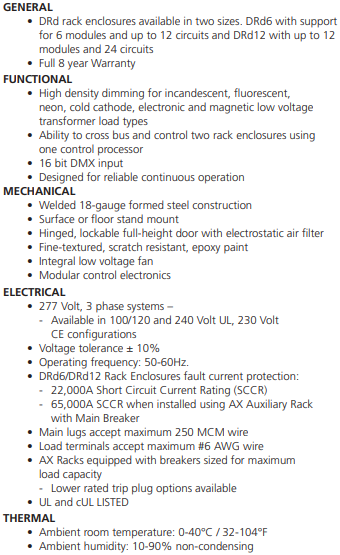

Specifications
