Product Description
ETC DRd6-12-120 DRd6 100-120V Rack Enclosure
Overview
Unison DRd Series Rack Enclosures are the workhorses behind the scenes, supporting two processor options and a variety of dimming, switching, and option modules. DRd Rack Enclosures are trusted for their reliability and versatility
Features
- All-On – clearly marked switch allows for all loads to be turned on to full, without the need for a control processor
- High Fault – protection from power spikes and surges with short-circuit current ratings from 22,000 amps
- Regulation – monitoring and adjustment of incoming line voltage with min and max scale voltages
- Bypass – emergency lighting control bypass input with load shedding
- Hold Last Look – dimming engine holds the last output during any loss of control
- Quick Boot – dimming engine boot time of less than four seconds
- HiRes Dimming – support for 16‑bit DMX and over 65,000 steps of dimming
Includes
- DRd6 100-120V Rack Enclosure

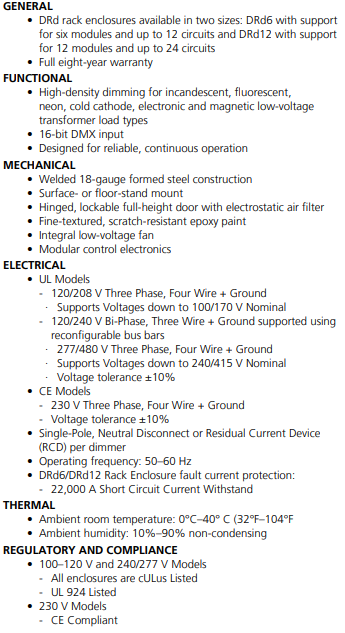

Specifications
