Product Description

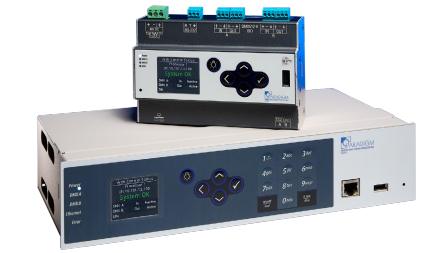

ETC DIN14-P-ACP/SPS DIN14 Enclosure with P-ACP-D and P-SPS
Overview
Paradigm Architectural Control Processor Mk2 is designed for easy interaction and rapid response. The built-in memory and processing power works with vast amounts of lighting control data and is fast enough to process 2,048 simultaneous fades over any of its native protocols
The Paradigm Processor is available in an enclosure-mount form factor (P-ACP-E) for centralized dimming and control installations and is available in a DIN rail mounted form factor (P-ACP-D) to accommodate a distributed control system.
Features
- The enclosure-mounted processor is designed for tool-free installation in Unison DRd with a Mk2 CPU2 dimming engine and ERn Mk2 Control Enclosures
- The DIN mounted processor is designed for tool-free installation to 35 mm DIN rail (TS-35/7.5 and TS-35/15)
- Point of Control Interface: easy-to-read system display shows the user pertinent system information
- Supports Calculated Energy Reporting for configured loads when used in a Central Control Server System
- LinkConnect: using Echelon® LonTalk® protocol with LinkPower, the two-wire topology-free system gives you the freedom to put stations where you need them
- Web browser interface for easy modification, activation and monitoring of your system configuration and status
- Local access: user control and system status at the interface
- Secure access: multiple levels of secure user interface access
Includes
- DIN14 Enclosure
- P-ACP-D
- P-SPS

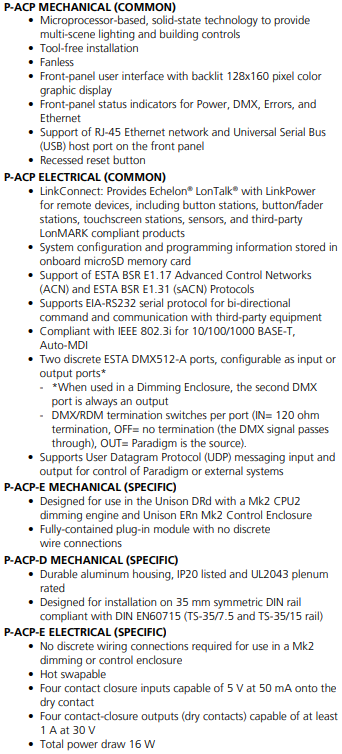

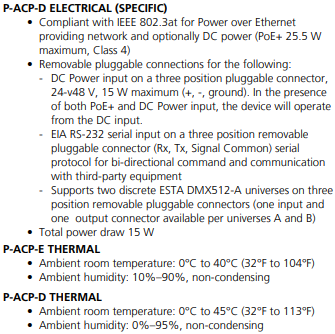

Specifications
