  • ETC D40 Studio HD Washlight Fixture
  • ETC SELD40HI-5 D40 Studio HD Washlight Fixture, Silver
  • ETC D40 Studio HD Washlight Fixture

    • ETC SELD40HI-5 D40 Studio HD Washlight Fixture, Silver

    MSRP: $2,040.00
    $1,972.00
    (You save $68.00 )
    SKU:
    SELD40HI-5
    UPC:
    7410A1402-5
    Condition:
    New
    Availability:
    Typically ships in 1-2 business days
    Shipping:
    Calculated at Checkout
    Adding to cart… category.add_cart_announcement

    Product Description

    ETC D40 Studio HD Washlight Fixture, Silver

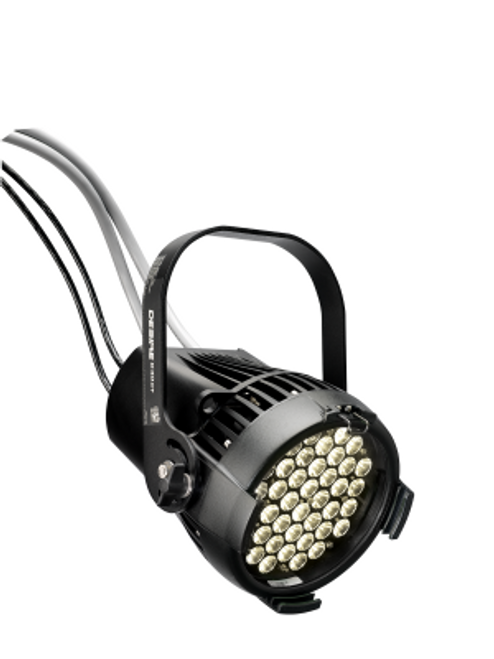

    (Photo is for illustrative purposes only; fixture is silver).

    The ETC Selador ® Desire D40 fixture puts the seven-color x7 system into a round theatrical washlight. Highly efficient primary lenses and careful color choices make the D40 fixture ideal for stage, studio and anywhere strong color and high-intensity are requirements. The Selador x7 Color System™ produces the widest range of spectrallybalanced saturated and tinted color choices available. D40’s rugged die-cast enclosure, noiseless fan-free operation, multiple lens options and advanced user interface make it ideal for multiple applications.

    D40 LED ARRAY OPTIONS D40 fixtures are based on the x7 Color System which uses seven different LED colors to achieve true, usable broad-spectrum color. The D40 luminaire is available with any one of the following x7 color arrays (not interchangeable) to best suit the intended application:

    • D40 Vivid – the x7 Color System array balanced for best all-around use as a high-intensity color-changing wash fixture

    • D40 Lustr+ – optimized array with six colors plus highintensity white LEDs to create an ideal frontlight wash fixture for full-range color, with an emphasis on lighter colors and white. It naturally lights skin tones

    ORDERING INFORMATION

    Selador D40

    MODEL DESCRIPTION

    • SELD40VI D40 Vivid
    • SELD40LI D40 Lustr+
    • Note: D40 luminaires ship with a hanging yoke and an input lead with connector of choice. See page 2 for connector options. C-clamps are not included.

    SPECIFICATIONS

    GENERAL • 40-LED color-mixing wash fixture • ETL Listed to UL1573 – the standard for stage and studio lighting units • IP20-rated for indoor use • Power and DMX in/thru connections for easy setup • User-friendly control interface with multiple modes and fixture settings

    PHYSICAL • Rugged die-cast all-metal housing • Easy access slots for secondary lenses and standard 7.5” PAR accessories • Available in black (standard), white or silver (optional) or custom colors (contact factory) • Hanging yoke standard. Optional yoke/floor stand available

    ELECTRICAL • 100VAC to 240VAC 50/60Hz universal power input • Neutrik power in and thru connections • Up to nine fixtures (15A max) may be linked via power thru connector (10 fixtures total per circuit) when used with R20 Relay Module or Unison Echo Relay Panel. Consult breaker trip curves when used with other equipment • Requires power from a non-dim source • Inrush - 120V / 15A (First half-cycle) - 240V / 40A (First half-cycle)

    LED* • 50,000-hour LED life (50,000 hours to 70% intensity) • 40 Luxeon® Rebel LED emitters *See additional LED notes on page three

    COLOR • Exclusive x7 Color System™ seven-color LED array • Beautifully illuminates skin tones and other objects for natural appearance and high color rendering • Broad-spectrum color interacts seamlessly with conventional sources • Exclusive optional red-shift option emulates tungsten dimming performance • Variable color temperature from 2700K-6500K

    OPTICAL • Primary field angle of 22° and beam angle of 10.5° • Secondary lenses available for multiple beam-spread options • Additional lenses must be ordered separately • Refer to accessories charts for lenses available

    CONTROL • DMX512 in and thru via five-pin XLR connectors • Multiple control options including RGB, strobe, and consolefree Master/Slave mode • See DMX control table for additional information • 15-bit virtual dimming engine provides smooth, high-quality theatrical fades and minimizes color shift during dimming • RDM functionality for address and setting changes

    THERMAL • Ambient operating temperature of -4° to 104°F (-20° to 40°C) • Active electronic thermal management for droop-free operation • Noiseless, fan-free convection cooling for acoustically sensitive installations • Fixture is designed for continuous operation up to 104°F (40°C) ambient temperature and requires free flow of air around fixture housing

    ADDITIONAL ORDERING INFORMATION

    Power Input Cables

    Use information below to order 5’ power input leads with factory-fitted connectors

    MODEL DESCRIPTION

    • DPA-A 5’ PowerCon™ to parallel blade U-ground (Edison) connector
    • DPA-B 5’ PowerCon to 20A two-pin and ground (stage pin) connector
    • DPA-C 5’ PowerCon to grounded 20A twistlock connector
    • DPA-X 5’ PowerCon to bare-end power input lead

    Power Thru Jumpers

    Note: Power thru jumpers connect to fixture’s output (thru) connector to provide link to successive fixtures

    MODEL DESCRIPTION

    • DPJ-5 5’ PowerCon to PowerCon™ fixture to fixture jumper
    • DPJ-10 10’ PowerCon to PowerCon fixture to fixture jumper

    Fixtures Accessories

    MODEL DESCRIPTION

    • SELD40FSY Yoke with floor-stand attachment
    • 400BD Barn door (Use only as a flexible top hat to diminish aperture glare. Not for beam shaping)
    • 407CF Color Frame (use for round and oblong lenses)
    • 400L Egg Crate Louver
    • 400PTH3 Top Hat 3” Tube
    • 400PTH6 Top Hat 6” Tube
    • 400PHH Half Hat 6” Tube
    • 400CC C-Clamp (does not ship with fixture)
    • 400SC Safety Cable (32”)
    • DPSJ-25 25’ PowerCon to Edison input power cable with inline switch

    ADDITIONAL ORDERING INFORMATION

    Secondary Lens Options MODEL DESCRIPTION: The following lenses are cut for D40 fixtures and create round, linear or oblong field patterns as described below. These lenses are not sized for use in Selador Classic™ fixtures.

    Narrow Linear Field Note: This is the same material as SeladorClassic lenses

    • SELLVN-7.5 7.5” Very Narrow lens Linear lenses may be combined to create desired field size
    • SELLN-7.5 7.5” Narrow lens
    • SELLM-7.5 7.5” Medium lens
    • SELLW-7.5 7.5” Wide lens
    • SELLEW-7.5 7.5” Extra Wide lens

    Round Field

    • SELRVN-7.5 7.5” Very Narrow lens (round field)
    • SELRN-7.5 7.5” Narrow lens (round field)
    • SELRM-7.5 7.5” Medium lens (round field)
    • SELRW-7.5 7.5” Wide lens (round field)

    Oblong Field

    • SELON-7.5 7.5” Narrow lens (oblong field)
    • SELOM-7.5 7.5” Medium lens (oblong field)
    • SELOW-7.5 7.5” Wide lens (oblong field)

    NOTES ABOUT LED LUMINAIRES All LED sources experience some lessening of light output and some color shift over time. LED output will vary with thermal conditions. Thermal conditions can be affected by ambient temperatures and orientation. See the D40 Ambient Temperature and Power Budgeting Guide for more details. Based on the LED manufacturer’s B50 L70 specification, a Selador luminaire will achieve ~70% of its initial output after 50,000 hours of typical usage. In individual situations, LEDs will be used for different durations and at different levels. This can eventually lead to minor alterations in color performance, necessitating slight adjustments to presets, cues or programs.

    CRI AND CQS RATINGS Desire fixtures were evaluated for CRI and CQS performance using measured output spectrum and optimized mix solutions for a best spectral match to black body sources at 3200K and 5600K.

    All D40 luminaire versions provide excellent color rendering to the eye, particularly at higher color-temperature settings, such as 5600K. In most cases, the Duv is 0.000. A Duv rating of 0.000 indicates that the color mix used is exactly on the black body line, with no green or magenta tint.

    CONTROL OPTIONS User settings on D40 fixtures allow multiple operational modes and settings for either console operation via DMX protocol or stand-alone operation. The expanded LCD display provides easy navigation to all possible settings and options. Some of the setting options are: • Multiple DMX choices ranging from a simple RGB profile – which effectively controls all seven LED colors via three channels – to nine-channel ‘direct’ color and intensity control • Multiple dimming curve options • Preset colors and sequences for stand-alone (no console required) operation • White point selection – white light and color behavior based on a specific color-temperature white light, i.e. 3200K, 5600K, etc. • Loss of data behavior options – instant off, hold last look for two minutes, etc. • Output modes – three output options that offer the user a choice between maximum output and maximum consistency See the user manual for a complete explanation of all of the control settings and options for the D40.

    Other Details

    Warranty Coverage. ETC WILL ONLY BE OBLIGATED TO HONOR THE WARRANTY SET OUT BELOW UPON RECEIPT OF FULL PAYMENT OF THE ORDER. Electronic Theatre Controls, Inc. (“ETC”) warrants to the original owner or retail customer (“Customer”) that during the warranty period defined below, ETC will repair or replace its Products that are defective in materials or workmanship which cause the Product to fail to operate in accordance with ETC’s published specifications for the Product in effect as of the date of shipment, subject to the terms of this limited warranty. The warranty period of box Products shall begin on the date of shipment (“Warranty Start Date”), except the Warranty State Date shall begin on the date of energization for Orders which include energization performed by ETC or an authorized service provider acting on ETC’s behalf. If no energization date is recorded, however, the Warranty State Date shall begin on the date of shipment. The controlling warranty, terms and conditions, and product warranty periods is available at the time of order acknowledgment, either by hard copy or by the PDF document found via the internet link listed on the order acknowledgment as of the date of the order acknowledgment. If ETC shall fail to repair or replace defective Products within a reasonable time after they are returned to ETC, or if ETC shall wrongfully fail to make delivery or shall wrongfully repudiate this contract, then Customer shall be entitled to recover from ETC such part of the purchase price as has been paid by Customer to ETC. The remedy stated in the preceding sentence shall be Customer’s exclusive remedy for any breach, non-delivery, or repudiation by ETC or for any other liability of ETC to Customer. This exclusive remedy shall not be deemed to have failed its essential purpose so long as ETC is willing and able to repair or replace defective Products in the prescribed manner. Warranty Exclusions. This Warranty does not impose any liability or duty upon ETC for: (i) any Product or part of a Product damaged by or subject to accident, negligence, alteration, abuse or misuse by Customer, or any accessories or parts not supplied by ETC; (ii) any damage caused by the unauthorized adjustment, repair or service of the Products by anyone other than ETC or its authorized repair agents; (iii) any damage, to any Product, or part of a Product caused by or due to an act of God, any catastrophe resulting from earthquake, fire, flood, explosion, inability to obtain materials or utilities, or any other cause beyond the reasonable control of ETC. This warranty also does not cover “consumable” parts such as fuses, lamps, color media or components which may be warranted directly to the Customer by the original manufacturer. This Warranty does not extend to items not manufactured by ETC. Freight terms on warranty repairs are FOB ETC factory or designated repair facility. Collect shipments or freight allowances will not be accepted. ELECTRONIC THEATRE CONTROLS, INC.’S STANDARD TERMS AND CONDITIONS OF SALE AND WARRANTY Rev. 6/25/2019 Page 3 of 3 ETC’s sole responsibility under this Warranty shall be to repair or replace at ETC’s option such Products or parts of Products as shall be determined to be defective on ETC’s inspection. ETC, at its option, may perform on-site warranty repairs. If ETC chooses to replace the Product and is not able to do so because it has been discontinued or is not available, ETC may replace it with a comparable product. ETC reserves the right to use new, re-worked, repaired, or refurbished parts in the repair or replacement of any Product covered by this Warranty. ETC will not assume any responsibility for any labor expended or materials used to repair any Products without ETC’s prior written authorization. ETC SHALL NOT BE RESPONSIBLE FOR ANY INCIDENTAL, GENERAL OR CONSEQUENTIAL DAMAGES, DAMAGES TO PROPERTY, DAMAGES FOR LOSS OF USE, TIME, PROFITS OR INCOME, OR ANY OTHER DAMAGES. The Customer’s obligations during the warranty period under this Warranty are to notify ETC within one week of any suspected defect and to return the Products prepaid to ETC at ETC’s factory or authorized service center. The one week notice period does not apply to claims for shortage or damaged Products. This written Warranty is intended as a complete and exclusive statement of the terms thereof. Prior dealings or trade usage shall not be relevant to modify, explain or vary this Warranty. Acceptance of, or acquiescing in, a course of performance under this Warranty shall not modify the meaning of this Warranty even though either party has knowledge of the performance and a chance to object. THIS LIMITED WARRANTY IS THE ONLY WARRANTY APPLICABLE TO THE EQUIPMENT AND REPLACES ALL OTHER WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. SPECIFICALLY, EXCEPT AS PROVIDED HEREIN, ETC UNDERTAKES NO RESPONSIBILITY FOR THE QUALITY OF THE PRODUCT OR THAT THE PRODUCT WILL BE FIT FOR ANY PARTICULAR PURPOSE FOR WHICH CUSTOMER MAY BE BUYING THE PRODUCT. ANY IMPLIED WARRANTY IS LIMITED IN DURATION TO THE WARRANTY PERIOD. NO ORAL OR WRITTEN INFORMATION, OR ADVICE GIVEN BY ETC, IT’S AGENTS OR EMPLOYEES, SHALL CREATE A WARRANTY OR IN ANY WAY INCREASE THE SCOPE OF THIS LIMITED WARRANTY. United States, Latin American, and Canadian Dealers: ETC Products forwarded outside of the United States, Latin America and/or Canada will only be covered by the Warranty Statement applicable to the region in question, and therefore this Warranty may or may not apply. Please contact ETC for the applicable warranty statement.
