Product Description
ETC D15A Dual 15A Dimmer Module, 500μS, Advanced Features, Repair
Part# 7050A1002
| 1. This is for the repair of an existing item. |
| 2. Once you place your order, then we will email you with an RMA# and shipping instructions so that you can ship your item out for repair. |
| 3. Please note that it may take up to 1-business day for us to send you the RMA# and shipping instructions. |
| 4. You will pay for the cost of outbound shipping on the repair. You can also decide the speed at which you want to ship the item out for repair. |
| 5. Please provide us with any technical notes about the issues that you are having with this product, so that they can be address during the repair of the unit. |
| 6. The repair will take approximately 1-2 weeks from the date of receipt of the item. |
| 7. The repaired unit will then be shipped back to you via the outbound shipping method that you select with this order. (Free, Ground, 2-Day, Overnight). |
| 8. Please call us at 1-866-457-5937 for any technical support questions. |
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

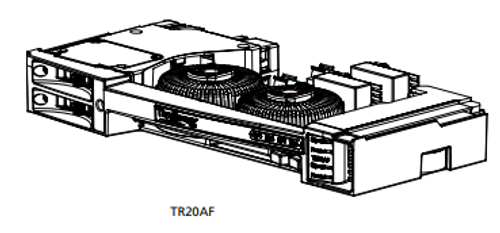

The Advanced Features (AF) Dimmer Module is designed for use in Sensor®+ Dimming Series modular rack enclosures. Advanced Features Dimmer Modules enable dimmer-specific feedback of load circuit data while performing digital phase angle dimming in AF-capable Sensor+ dimmer enclosures. The high-density, dimmer modules feature modular installation and removal, fully magnetic circuit breakers and enhanced risetime toroidal filters.
APPLICATIONS
• Incandescent lighting
• Low voltage lighting
• Quartz lighting
• Neon lighting
• Cold Cathode lighting
• 2-wire Fluorescent ballast
• 4-wire Fluorescent ballast
FEATURES
• Voltage, current, and temperature sensors in each dimmer
• D15AF and D20AF modules are dual density
• D50AF modules are single density
• D100AF modules are half density
• Dual back-to-back SCRs for each circuit
• 500μS risetime toroidal filters
• High-density modular assembly
• Die-cast aluminum chassis
• Fully magnetic circuit breakers
General
• 100,000A Short Circuit Current Rating (SCCR)
• UL and cUL LISTED
SPECS
GENERAL
• UL and cUL Listed for continuous duty at 100% of rated load
• D15AF – 1.8kW
• D20AF – 2.4kW
• D50AF – 6.0kW
• D100AF – 12.0kW
PHYSICAL
• Modular plug-in assemblies
• Cast aluminum chassis, finished with textured epoxy paint
• Keyed to prevent insertion in inappropriately rated rack positions
CIRCUIT BREAKERS
• Fully magnetic to eliminate nuisance tripping
• 20x inrush current rating
• 125%, 10-120 seconds, must-trip rating
• Rated for 100% switching duty applications
RATINGS
• 100,000A Short Circuit Current Rating (SCCR)
• Modules withstand hot-patching of cold loads up to full rating Power Device
• Sealed, patented assembly
• Field replaceable with screwdriver
• Two back-to-back SCRs per circuit
• One control LED and one output LED per circuit
• Integral bonded heatsink
• Integral temperature sensor
• Built-in voltage and current sensors
FILTERING
• High quality 500μS risetime* toroidal filters
* Risetime measured at full load, at worst case firing angle (90 degrees), from 10-90% of output wave form
DIMMER RANGE
• Incandescent, low voltage dimming range 100-0%
• Dimming range of 2 and 4-wire fluorescent ballast is dependent on lamp ballast combination. Contact ETC for range verification
• Sizing of Neon transformer used in dimming applications should be 1.5x greater than size used in non-dimming application
Advanced Features**
• Advanced Features error messages:
- Load dropped below recorded value
- Load increased over recorded value
- DC on dimmer output
- SCR failed on/off
- Circuit breaker tripped
- Dimmer module removed
- Dimmer load absent
** All AF modules support ETC’s Advanced Features (AF) dimmer specific load reporting features when used in AF-equipped racks or packs
