Product Description

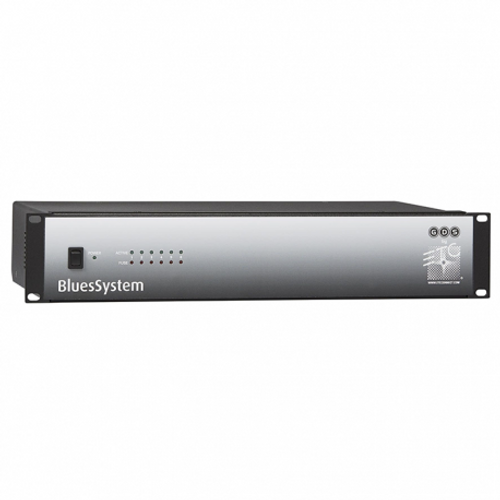

ETC BSPS6RD 6 Zone, Rack mount, DMX Control Input
LV Power Supplies BluesSystem LV power supplies provide precision power and control for BlueBeam and BlueDome fixtures. Available in a one-zone and six-zone version (up to 10 luminaires per zone) with wall-mount and rack-mount options, BluesSystem LV power supplies allow for maximum flexibility when designing your venue.
APPLICATIONS • For use with BluesSystem LV Fixtures
FEATURES • Configurable options for minimum light level and DMX loss behavior • One-zone version (up to 10 luminaires) available with: - Wall-mounting enclosure - Switched (dry contact) or DMX control input options • Six-zone version (up to 60 luminaires) available with: - Wall- or rack-mounting enclosure - Switched (dry contact), 0-10 V Analog or DMX control - input options
GENERAL • Three-year warranty • Ambient operating temperature 0–40° C / 32–104° F
REGULATORY AND COMPLIANCE • cETLus Listed • Conforms to ANSI/UL STD. 2108 • Certified to CSA STD. C22.2 No. 250.0 • CE Compliant
ORDERING INFORMATION
MODEL: BS FOR BLUDESSYSTEM
TYPE: PS FOR POWER SUPPLY
ZONES: 1 FOR 1-ZONE; 6 FOR 6-ZONE
MOUNT: W FOR WALLMOUNT; R FOR RACKMOUNT
CONTROL: S FOR SWITCHED; A FOR 0-10V ANALOG; D FOR DMX
SPECIFICATIONS
CONTROL • Each zone supports up to ten luminaires • One-zone power supply available with switched (LV dry contact) or DMX input • Six-zone power supply available with switched (LV dry contact), 0–10 V analog, or DMX input • Six-zone 0–10 V version features user selectable sink or source operation • Configurable minimum light level and DMX loss behavior options • Three-conductor screw terminal for DMX in/thru.
ELECTRICAL • Power supply input operating voltage: 100–240 VAC 50/60 Hz • One-zone power supplies provide 24 VDC output • Six-zone power supplies provide 36 VDC output • 3 W luminaire consumes 85 mA @ 36 V (130 mA @ 24 V) • Three conductor screw terminals for output zones accepting 30-12 AWG / 0.05–4.0 mm2 gauge cable

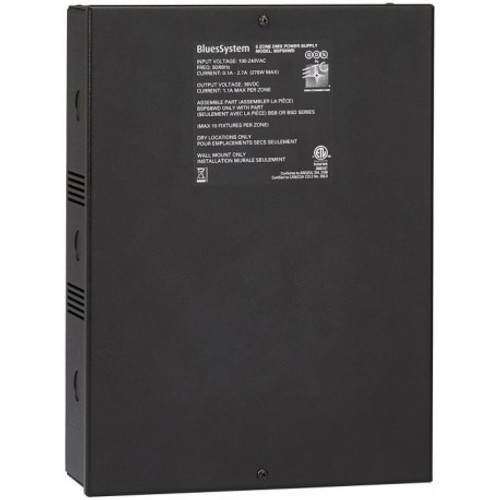

MECHANICAL • One-zone power supply available as wall-mount only • Six-zone available in wall-mount or 19” 2U rack-mount • Suitable for dry locations only
THERMAL • Low heat generation
ACCESSORIES - DSDM1 - DIMMING MODULE
The DM1 dimming module allows basic instensity control of up to 40 BlueBeam or BlueDome LV fixtures. The module is designed to be installed into an electrical faceplate or panel of your choosing and features the same three terminal connections as the fixtures (power, ground, control) for ease of commissioning. See BluesSystem installation guide for further information on wiring configuration options.
MAXIMUM CABLE DISTANCES BluesSystem LV beams and domes can be wired using standard, three conductor cable. The maximum distance from power supply to fixture varies based on the gauge of cable used. The following charts provide information on the maximum distance for a variety of common cable sizes. It is possible to increase perminssable cable distance by running a double ground conductor - e.g. A four-conductor 18AWG cable such as Belden 8489 could be installed with two of the conductors used for the ground termination. This ‘double ground’ connection allows for a greatly increased cable distance
24v ONE-ZONE POWER SUPPLY
AWG | MAX FT USING SINGLE GROUND | MAX FT USING DOUBLE GROUND |
12 | 396 | 792 |
2.5 mm2 | 307 | 614 |
14 | 249 | 498 |
16 | 157 | 313 |
18 | 99 | 197 |
36V SIX-ZONE POWER SUPPLY
AWG | MAX FT USING SINGLE GROUND | MAX FT USING DOUBLE GROUND |
12 | 594 | 1,188 |
2.5 mm2 | 460 | 920 |
14 | 374 | 747 |
16 | 235 | 470 |
18 | 147 | 296 |
