Product Description

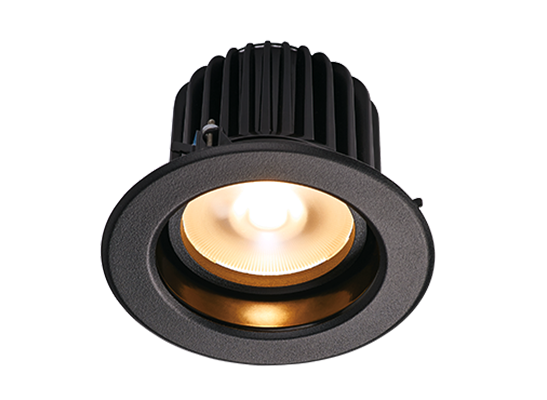

ETC ARCN100W215PBA Navis 100 Luminaire 2700 K 15 Degree Pinhole Black
Overview
The compact Navis 100 Adjustable luminaire is ideally suited for recessed installations in areas that require short- to medium-throw illumination.
The Navis 100 accepts a low voltage DC connection and is designed for a direct connection to an external F-Drive LED driver, see separate datasheet for more details. In conjunction with the driver unit, the luminaire can be dimmed using a DMX/RDM input.
Navis has been specifically developed for architectural lighting applications where high-quality optics and extremely accurate and smooth dimming are required.
Installation couldn’t be easier. With simple, wind-down clamps, Navis 100 can be installed in ceiling thicknesses of 0.5–20 mm (0.02–0.78 in).
Features
- High-grade, field-changeable TIR optics and accessories
- Stepless smooth dimming
- Convection cooled
- Fan-free, silent operation
- Multiple color-temperatures
- RGBW color-mixing option
- Remote power-supply for improved accessibility
- Variable ceiling-thickness mounting mechanism
- Locking 360° rotation and 30° tilt

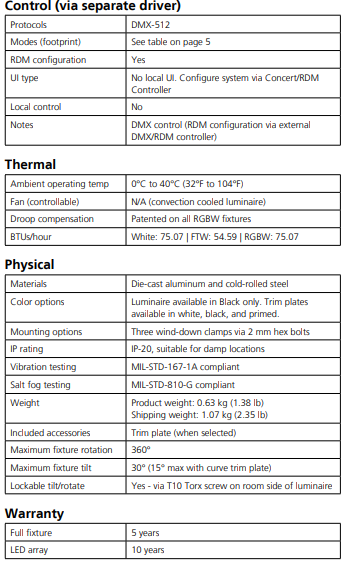

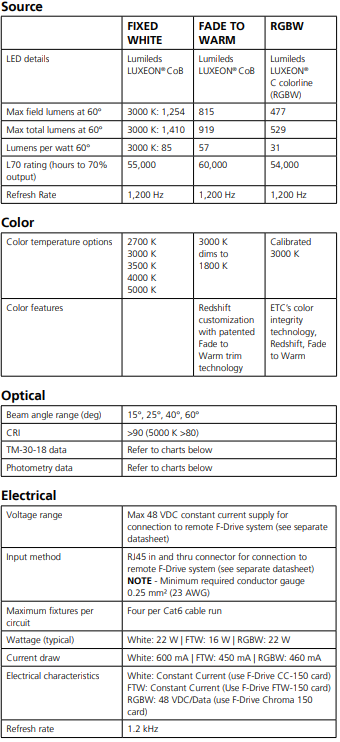

Specifications
