Product Description

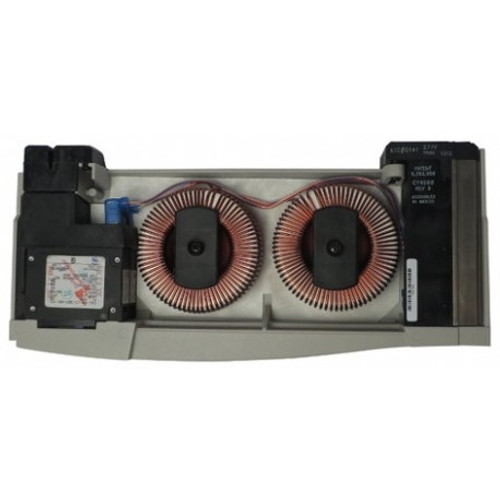

ETC AR20 Dual 20A 5.5KW Relay Module - 277V, Repair
Part# 7083A1083
| 1. This is for the repair of an existing item. |
| 2. Once you place your order, then we will email you with an RMA# and shipping instructions so that you can ship your item out for repair. |
| 3. Please note that it may take up to 1-business day for us to send you the RMA# and shipping instructions. |
| 4. You will pay for the cost of outbound shipping on the repair. You can also decide the speed at which you want to ship the item out for repair. |
| 5. Please provide us with any technical notes about the issues that you are having with this product, so that they can be address during the repair of the unit. |
| 6. The repair will take approximately 1-2 weeks from the date of receipt of the item. |
| 7. The repaired unit will then be shipped back to you via the outbound shipping method that you select with this order. (Free, Ground, 2-Day, Overnight). |
| 8. Please call us at 1-866-457-5937 for any technical support questions. |
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

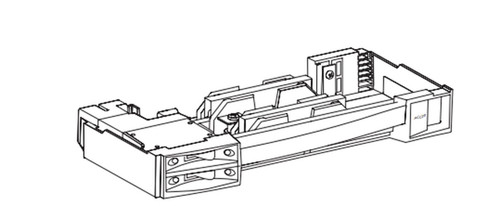

The Relay Module is a dual, plug-in mechanical relay assembly for use in the Unison Dimming Series rack enclosures. Each Relay Module provides two electrically held relays, in the same form factor as standard dimmer modules. This enables designers to mix and match dimmer and relays for control of diverse loads. Ideal for control of non-dimmable load types such as HID lamps.
APPLICATIONS
• Designed for use in Unison 277V Unison DRd rack enclosures
• High Intensity Discharge ballasts (Metal Halide and High Pressure Sodium)
• Non-dimmed On/Off loads
• Motors
• Power for fans and standard outlets
• Moving lights, fog machines and other powered effects
FEATURES
• Level-activated mechanical relays
• Two circuits per module
• High-density modular assembly
• Die-cast aluminum chassis
• Fully magnetic circuit breakers
GENERAL
• 65,000A Short Circuit Current Rating (SCCR)
• UL and cUL LISTED
SPECIFICATIONS
GENERAL
• Dual density, plug in assemblies, for use in Unison Dimming Series rack enclosures
• UL and cUL Listed for continuous duty at 100% of rated load
- AR15 – 4.1kW
- AR20 – 5.5kW
PHYSICAL
• Cast aluminum chassis, finished with textured epoxy paint
CIRCUIT BREAKERS
• Fully magnetic to eliminate nuisance tripping
• 20x inrush current rating
• 125%, 10-120 seconds, must-trip rating
• Rated for 100% switching duty applications
ELECTRICAL RATINGS
• 65,000A Short Circuit Current Rating (SCCR)
• Modules withstand hot-patching of cold loads up to full rating
• UL and cUL LISTED
RELAYS
• 15 or 20 amp, level-activated mechanical relay
- Rated for 200,000 full load activations
- Rated for 5 million no load activations
• AR15 rated for 1.73HP at 13.8A
• AR20 rated for 3.46HP at 20.0A
• Rated for 20A General Purpose, 10A Tungsten and 1.5 HP Motor Maximum
POWER DEVICE
• Sealed, patented assembly
• 4000V isolation between control and power components
• Integral bonded heatsink
