Product Description

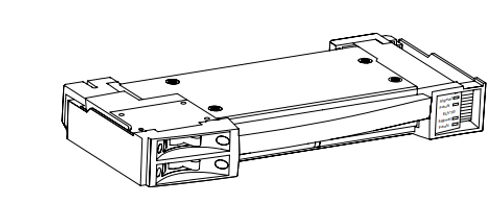

ETC AELV5 Dual 5A 1.4KW Electronic Low Voltage Module - 277V, Repair
Part# 7183A1028
| 1. This is for the repair of an existing item. |
| 2. Once you place your order, then we will email you with an RMA# and shipping instructions so that you can ship your item out for repair. |
| 3. Please note that it may take up to 1-business day for us to send you the RMA# and shipping instructions. |
| 4. You will pay for the cost of outbound shipping on the repair. You can also decide the speed at which you want to ship the item out for repair. |
| 5. Please provide us with any technical notes about the issues that you are having with this product, so that they can be address during the repair of the unit. |
| 6. The repair will take approximately 1-2 weeks from the date of receipt of the item. |
| 7. The repaired unit will then be shipped back to you via the outbound shipping method that you select with this order. (Free, Ground, 2-Day, Overnight). |
| 8. Please call us at 1-866-457-5937 for any technical support questions. |
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
The Electronic Reverse Phase Control Dimmer Module is a dual, plug-in dimmer for use in the Unison Dimming Series rack enclosures. The Electronic Reverse Phase Control Module provides cost effective, reverse phase angle dimming, of electronic transformer circuits. The design features high-density modular assembly, fully magnetic and fully rated circuit breakers, and electronic low-end set controls via control module.
APPLICATIONS
• Designed for use in 277V Unison DRd rack enclosures
• Electronic low voltage transformers
• Electronic LED power supplies requiring reverse phase control
FEATURES
• Two 1.4kW dimmers per module
• High-density modular assembly
• Die-cast aluminum chassis
• Fully magnetic circuit breaker
• Electronic low-end set controls
GENERAL
• 65,000A Short Circuit Current Rating (SCCR)
• UL and cUL Listed
SPECS
GENERAL
• Dual density, plug in modules, for use in Unison Dimming Series rack enclosures
• Provides Reverse Phase Control dimming for electronic low voltage transformers
• UL and cUL Listed for continuous duty at 100% of rated load
- AELV5 – 1.4kW
PHYSICAL
• Modular plug-in assemblies
• Cast aluminum chassis, finished with textured epoxy paint
CIRCUIT BREAKERS
• Fully magnetic to eliminate nuisance tripping
• 20x inrush current rating
• 125%, 10-120 seconds, must-trip rating
• Rated for 100% switching duty applications
ELECTRICAL RATINGS
• 65,000A Short Circuit Current Rating (SCCR)
• UL and cUL Listed
POWER DEVICE
• One control and one output LED per circuit
• 4000V isolation between control and power components
• Integral temperature sensor.
EFFICIENCY
• Efficiency is 99%
