Product Description
ETC ACC15 Dual 4.1KW Constant Module - 277V, Repair
Part# 7183A1048
| 1. This is for the repair of an existing item. |
| 2. Once you place your order, then we will email you with an RMA# and shipping instructions so that you can ship your item out for repair. |
| 3. Please note that it may take up to 1-business day for us to send you the RMA# and shipping instructions. |
| 4. You will pay for the cost of outbound shipping on the repair. You can also decide the speed at which you want to ship the item out for repair. |
| 5. Please provide us with any technical notes about the issues that you are having with this product, so that they can be address during the repair of the unit. |
| 6. The repair will take approximately 1-2 weeks from the date of receipt of the item. |
| 7. The repaired unit will then be shipped back to you via the outbound shipping method that you select with this order. (Free, Ground, 2-Day, Overnight). |
| 8. Please call us at 1-866-457-5937 for any technical support questions. |
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

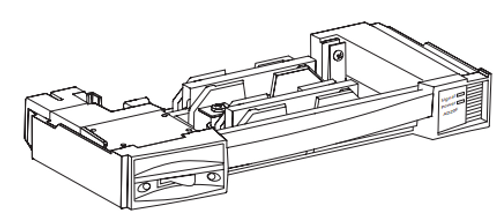

The Constant Current Module is a dual, plug-in assembly for use in Unison Dimming Series enclosures. The Constant Current module distributes power with overcurrent protection from the dimmer rack enclosure to non-dimmed loads, typically motors, backup and emergency systems or auxiliary power distribution panels.
Features:
- Two circuits per module
- High-density modular assembly
- Die-cast aluminum chassis
- Fully magnetic circuit breakers
Specifications:
- General:
- Dual density, plug in modules, for use in Unison Dimming Series rack enclosures
- UL and cUL Listed for continuous duty at 100% of rated load
- ACC15 – 4.1kW
- ACC20 – 5.5kW
- Circuit Breakers:
- Fully magnetic to eliminate nuisance tripping
- 20x inrush current rating
- 125%, 10-120 seconds, must-trip rating
- Rated for 100% switching duty applications
- Electrical Ratings:
- 65,000A Short Circuit Current Rating (SCCR)
- Replaceable fuse for short circuit protection and fault current coordination
- UL and cUL LISTED
