Product Description
ETC 7083A1084 Dual 15A 120V Relay Module, Repair
Part# 7083A1084
| 1. This is for the repair of an existing item. |
| 2. Once you place your order, then we will email you with an RMA# and shipping instructions so that you can ship your item out for repair. |
| 3. Please note that it may take up to 1-business day for us to send you the RMA# and shipping instructions. |
| 4. You will pay for the cost of outbound shipping on the repair. You can also decide the speed at which you want to ship the item out for repair. |
| 5. Please provide us with any technical notes about the issues that you are having with this product, so that they can be address during the repair of the unit. |
| 6. The repair will take approximately 1-2 weeks from the date of receipt of the item. |
| 7. The repaired unit will then be shipped back to you via the outbound shipping method that you select with this order. (Free, Ground, 2-Day, Overnight). |
| 8. Please call us at 1-866-457-5937 for any technical support questions. |
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

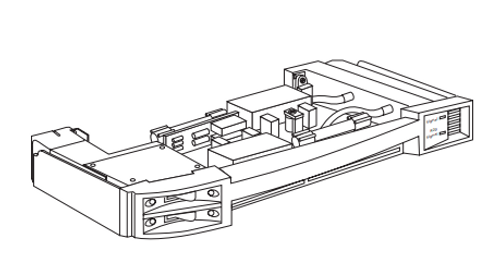

The ETC 7083A1084 R15AF Dual 15 A Relay Module (120 V) is a dual plug-in mechanical relay assembly for use with both Sensor+ and Unison modular dimmer rack enclosures. The module provides 2 electrically held relays in the same form factor as standard dimmer modules. This enables designers to mix and match dimmers and relays for controlling diverse loads. This relay module is ideal for controlling non-dimmable load types such as HID lamps. The module allows for cost-effective switching. On the other hand, its advanced features enable dimmer-specific feedback of load circuit data while performing switching in AF-capable sensor+ dimmer enclosures.
FEATURES
- High-density, sealed, patented, modular plug-in assembly
- Level-activated mechanical relays
- Two circuits per module
- Fully magnetic circuit breakers
- Cast aluminum chassis finished with textured epoxy paint
- Keyed to prevent insertion in inappropriately rated rack positions
- R15AF rated for 0.75HP at 13.8 A
- Rated for 20 A general purpose, 10 A tungsten, and 1.5 HP motor maximum
- Has 1 control LED and 1 output LED per circuit
- Integral bonded heat sink
- Features built-in voltage and current sensors
| AC Input Power | 120 VAC, 60 Hz |
| Maximum Wattage | 1800 W |
| SCCR Rating | 100 A |
| Dimensions | 1.5 x 11.8 x 4.9" / 38 x 300 x 127 mm |
| Weight | 2.6 lb / 1.2 kg |
| Certifications | UL, cUL, as per Manufacturer |
| Box Dimensions (LxWxH) | 23 x 13.5 x 13.5" |
