Product Description

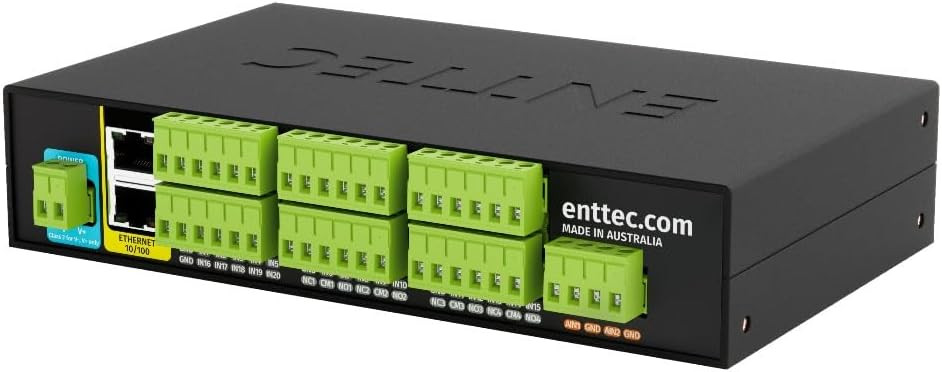

Enttec 70096 I/O Extender for S-PLAY
Overview
Compatible with the S-PLAY SP1, ENTTEC’s I/O Extender enhances your system’s input/output capabilities, integrating with setups for advanced smart lighting control.
Boost your system with an additional 20 digital inputs, 4 relays, and 2 analog inputs, making it ideal for both simple and complex installations – all easily managed via your existing S-PLAY interface.
With Ethernet In and Through ports, reliable network integration is effortless, while screw terminal and pluggable terminal blocks ensure a streamlined wiring process.
Specifications
| Connectors | 1 x Power (Screw terminal), 2 x Ethernet (RJ45), 20 x Digital input (Screw terminal), 4 x Relay (Screw terminal), 2 x Analog Input (Screw terminal) |
| Analog range | 0-10V |
| Relay | Max Power Throughput 60W (Current Limit 2A, Voltage Limit 50V AC or DC) |
| LED indicator | Forward-facing LED indicator, Network link/activity Integrated into RJ45 ports) |
| IP rating | IP20 |
| Control input | S-PLAY SP1-1 (Firmware V3 above) |
| Power input | 12~24V DC |
| Max. power draw | 3.35W |
| Max. current draw | 280mA |
| Max. power throughput | 60W (Max. Current 2 Amp) |
| Network speed | 10/100Base-T |
| Network discovery | ENTTEC’s EMU Software |
| Network configuration | DHCP (Default) Static (192.168.0.10) |
| Cooling method | Convection |
| Environmental operating temperature | 0°C to 50°C 32°F to 122°F |
| Environmental operating humidity | 0 to 95% (non-condensing) |
| Body material | ABS Plastic & Anodized Aluminium |
| Unit dimensions | 200mm x 120mm x 42mm |
| Unit Weight | 0.50kg / 1.10lbs |
