Product Description
Eliminator Lighting Dotz Tpar Sys Plus Portable Stage Lighting Wash System
Overview
The Eliminator Lighting Dotz TPar Sys Plus is a portable stage lighting wash system designed for smaller live stages, nightclubs and events. The system includes four adjustable LED pars, a lighting stand, foot controller, RF remote control and transport bags
Features
• COB Technology (Chip On Board) produces powerful, smooth RGB color mixing with rich palettes of color and no color shadows
• Smooth RGB Color Mixing (fast or slow color change operation)
• Great for Stage Lighting, Bands, Night Clubs & Mobile Entertainers
• Emits less heat on performers on stage as opposed to conventional stage lighting
• RF Remote Control control up to 25 meters
• Refresh Rate: 3.6KHz
System Includes

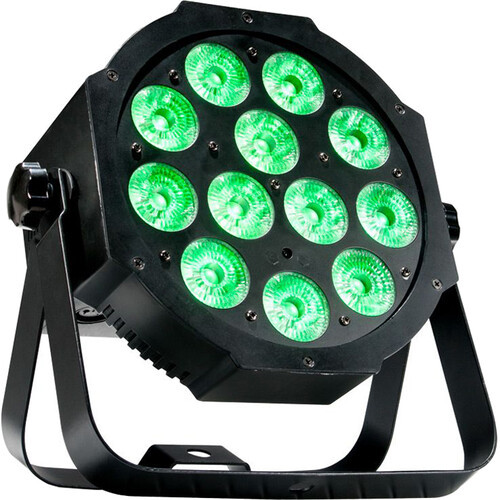

• 4x COB LED Par Wash Fixtures
• 1x Foot Controller
• 1x Lighting Stand

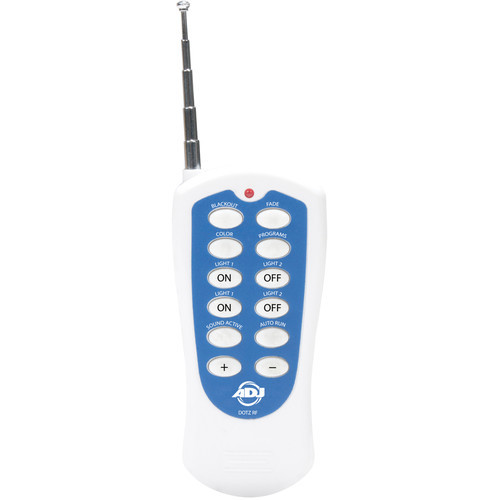

• 1x RF Remote Control
• 1x Stand Bag
• 1x Soft case for lighting system
Specifications
Source:
• Light Source: Each fixture has 1x 30-Watt TRI Color COB LEDs
• LUX @ 3M: 1345
• Long Life LEDs (Rated at approximately 50,000 hrs.)
• Beam angle: 90-degree
Control:
• Digital DMX Display with 4-button menu for easy navigation
• 4 Operational modes: Sound Active, Auto Run, Built-In Programs, & DMX-512
• Stand Alone or Primary/Secondary Configuration
• Pixel Flip option changes pixel orientation
• 14 Built-in Programs
• 5 DMX Channel modes: 3, 5, 9, 12 and 18 channels
• Strobe & Pulse LED Effect
• Electronic Dimming: 0-100%
• 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
• Foot Controller Features: Mode, Black Out and Program Change
• With Wired Digital Communication Network
Connections:
• 3-Pin DMX In/Out
• IEC In and IEC out to daisy chain power
• 2x power plugs on rear to plug in other lighting fixtures (120V = Edison, 230V = Shuko)
• 5-pin DMX In to connect the foot controller
Electrical:
• Multi-voltage operation: AC 100V-240V 50/60Hz (IEC Input)
• Power Draw: 144W Max (entire system)
Dimensions & Weight:
• Dimensions (LxWxH): 39.5” x 12.75”x 3.25”/ 1000 x 320 x 82mm
• Weight: 35 lbs./ 16 kg. (Fixture Bar, Stand & Controller)
• Maximum stand height: 9 feet
What’s Included:
• Includes 25-degree beam angle lens kit
• Includes hardware to mount two lighting fixtures on top of the light bar
• 5-pin DMX cable to connect the foot controller to rear of the light bar
• Power Cord
Approvals / Ratings:
• CE Certified
