Product Description

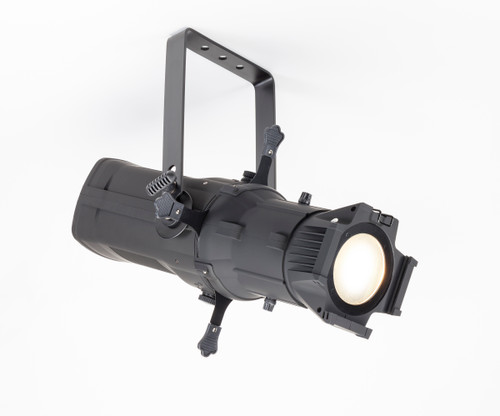

elektraLite SRAYM WW ENG-19 20w Warm White (3,200K)  LED Ellipsoidal Mini Spot with DMX

Overview

The elektraLite Stingray Mini brings a choice of Warm White, Cool White, and Variable White in an incomparable level of intensity for its range.

At the heart of the Stingray Mini is a newly designed 20 watt COB LED. The ellipsoidal provides clean, rich, beautiful white light making the Stingray Mini perfect for any show, event or for displays in a museum or gallery. The built-in accessory clip allows for diffusion and color media to be used.

The Stingray Mini’s sophisticated, proprietary diffraction lensing system provides a packed punch of light in a variety of beam spreads. The interchangeable lens tube give the user 19°, 26°, 36°, or 50° beam spreads. Four independent shutter blades give perfect in-focus cuts to the beam.

A powerful, well‐rounded LED lighting fixture with a rugged all-metal design, the Stingray Mini is a perfect feature fixture, ready to bring rich, bright white light to a wide variety of public spaces. The Stingray Mini is controlled via DMX or manually. The DMX module is mounted to the yoke but the fixture comes with an extension cable to remotely locate the module.

A quick rotating and release of the barrel allows lens and shutter to be easily cleaned.  Housing features rotating barrel assembly, pattern holder slot, and four shutter blades for perfect in-focus beam cuts.

Each fixture includes the following accessories:

• (1) single yoke
• (1) adjustable lens tube (19°, 26°, 36°, or 50°)

Features

• Single COB 20 watt LED with three choices : 3200K (warm white), 5600K (daylight), or variable white (from 3000K to 6000k).
• 0‐100% dimming using DMX version
• Available 19, 26, 36 and 50 lens tubes with no chromatic aberration.
• Double slot gel/color frame holder with safety clip and Gobo Holder (22mm image size, 35mm gobo size) both accessories sold separately
• Housing features rotating barrel assembly, pattern holder slot, and four shutter blades for perfect in‐focus beam cuts

Specifications

Power Consumption – 25 watts (0.21A)

Electrical ‐ multi‐voltage; AC 100‐250V – 50/60Hz

Housing ‐ aluminum monocoque design

Materials ‐ corrosion resistant hardware

Yoke ‐ rigid flat steel

Light Engine ‐ single 20W COB LED emitter

Refresh Rate ‐ variable

Optics / Lensing(s) ‐ Variable PC lensing.

Certifications – ETL listed
