Product Description

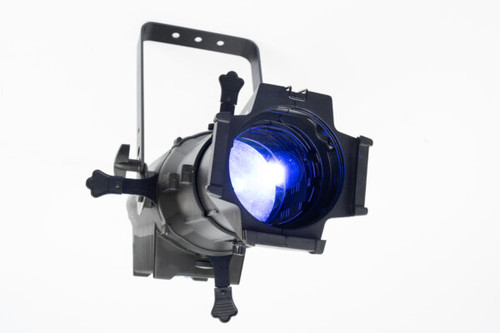

elektraLite SRAY VW ENG 600w Variable White LED Ellipsoidal Light Engine & Barrel
Overview
The elektraLite Stingray 600w Variable White brings the latest led technology incorporating a 600watt COB led and a CRI of 95.
The COB single source led is far superior to any multi source led, because of its power, efficacy and flat field. No need to optimize or add frost filtering for multiple leds.
The choice of a 600w COB source allows the fixture to blend with either the Stingray 300w Warm White or Cool White fixtures. Great importance is taken to make sure color temperatures are even across the entire beam
The fixture sophisticated proprietary diffraction lensing system has interchangeable lenses with 5°, 10°, 19°, 26°, 36° and 50° beam spreads.
There is also available two zoom lens tubes : 12-30 degrees and 25-50 degrees. Apart from perfect flat field, the Stingray 600w Variable White has four independent shutter blades which render perfect in‐focus cuts to the beam.
A quick 360° rotating barrel allows for the shutters to be in any position. The barrel’s quick release allows for easy cleaning of lenses.
The importance of dimming is paramount to any lighting designer and elektraLite Stingray Variable White has no step dimming.
Added to this is the no pop at the beginning or end of the dimming curve.
So that annoying flash at the beginning of the dimming curve is never there.
The Stingray 600w Variable White’s all aluminum rugged design and 600w output makes it ideal for use in a wide variety of venues, galleries, worship spaces, event spaces, industrial presentations, broadcast, and film studios.
The display is an LCD touch screen for quick and easy changes to all the fixture’s features.
The Stingray 600w Variable White has 5pin XLR connectors for both in and thru control using DMX/RDM.
A single yoke, safety eye bolt and safety cable are included. Industry standard Powercon in and out connectors allow quick connection and daisy chaining of fixtures.
Each fixture includes the following accessories:
- (1) Safety cable
- (1) Yoke
- (1) Powercon input cable to edison connector. Powercon output connector.
Features
- Single Source COB 600w LED
- 100% no step dimming and no pop at the beginning or end of the dimming curve
- All aluminum monocoque design
- Easy to use display menus for DMX/RDM or manual static control
- Interchangeable lens and 4-way shutter system
- Powercon in and out, 5pin XLRs in and out
- New LCD touch screen for manual control
- Exclusive “cool to touch” housing
- PWM frequency adjustment from 500hz to 25KHz
Specifications
Power Consumption -750 watts (6.25A)
Electrical ‐ multi‐voltage; AC 100‐250V – 50/60Hz
Housing ‐ aluminum monocoque design
Materials ‐ corrosion resistant hardware
Yoke ‐ rigid flat steel
Light Engine ‐ single 600W COB LED emitter (2-in-1)
Refresh Rate ‐ variable
CRI ‐ 95
Optics / Lensing(s) ‐ Variable PC lensing.
Control ‐ Manual from back of fixture or via DMX-512 (in and thru) via 5pin XLR connector
Certifications – ETL listed
Physical -L 24″ (611mm) W 7″ (173mm) H 12.5″(315mm)
Weight – 23.1 lbs/10.5 kgs
