Product Description

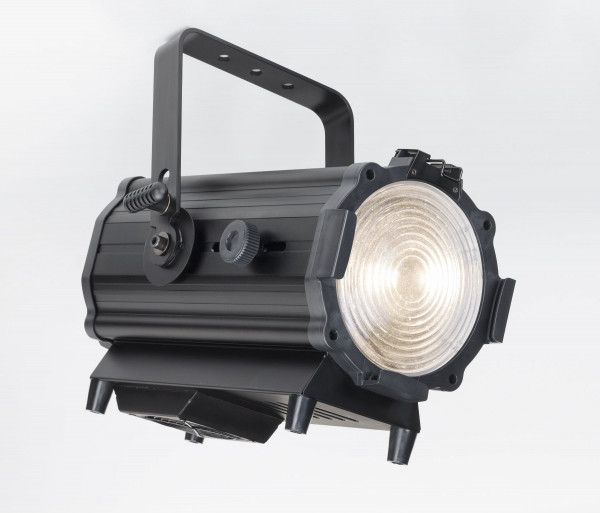

elektraLite SRAY FRSNL WW 300w Warm White (3,200K) LED Fresnel
Overview
The elektraLite Fresnel brings clean, warm white light in an incomparable level of intensity for its range.
At the heart of the elektraLite Fresnel is a newly designed 300 watt COB LED. With a balanced 3,200K or 5,600K color temperature, and a CRI of 95, the fresnel provides the same clean, rich, beautiful white light audiences have grown accustomed to, making the elektraLite Fresnel perfect for any show or event.
The efficiency and power of a single source COB led far exceeds the output of multiple source small leds and also that of the conventional discharge lamp sources. No more ballasts to carry around. No more waiting for the source to cool down before restriking. No more non-dim fixtures. No more fixtures running at extreme temperatures. The elektraLite fresnel uses our exclusive “cool to touch” housing. The fixture can be turned off and back on again with no wait time and dimming is smooth from zero to maximum without any ‘pops’ or steps.
The elektraLite Fresnel is supplied with 4 way barn doors so that perfect cuts can be easily achieved thanks to the single source COB led.
The elektraLite Fresnel features manual (or electronic auto control through DMX on the latest version of the fixture) from 15 to 50 degree zoom. A powerful, well‐rounded LED lighting fixture with a rugged design, the elektraLite Fresnel is a workhorse, ready to bring rich, bright white light to a wide variety of public spaces including stages, classrooms, galleries, worship spaces, studios, event spaces, live event, and production environments.
A very simple to use onboard control interface allows for easy control by either DMX or console‐free static operation. The elektraLite Fresnel has 5‐pin XLR DMX connectors (both in and thru). Barn doors, a single yoke, safety eye bolt and safety cable are included. Power is via industry standard Powercon in and out connectors allowing for quick daisy chaining of the fixtures.
Each fixture includes the following accessories:
- single yoke
- safety cable
- 24” Edison male to Powercon female power cable
- Powercon male power connector
- 4way barn doors
Features
- Single COB 300 watt led either 3200K or 5600K
- 100% no step dimming and no pop at the beginning or end of the dimming curve
- Electronic zoom 15 to 50 degrees now fitted to the latest version.
- Easy to use display Menus for DMX or manual static control.
- On/off switch, powercon in and out, 5pin XLRs in and out.
- 4 way barn doors for perfect cuts
- Exclusive “cool to touch housing
Specifications
Power Consumption – 400 watts (3.3A)
Electrical ‐ multi‐voltage; AC 100‐250V – 50/60Hz
Housing ‐ aluminum monocoque design
Materials ‐ corrosion resistant hardware
Yoke ‐ rigid flat steel
Light Engine ‐ single 300W COB LED emitter (WW/CW)
Refresh Rate ‐ variable
CRI ‐ 95
Optics / Lensing(s) ‐ Variable PC lensing.
Control ‐ DMX‐512 (in and thru) via 5‐pin XLR connector
Certifications – ETL listed
Physical – L 17″ W 11.5″ H 10″
Weight – 19.0 lbs / 8.5 Kgs
