Product Description

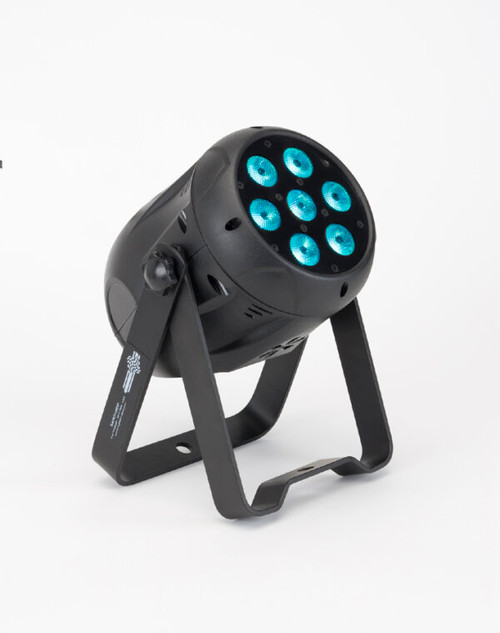

elektraLite eyeBall Outdoor IP65 7-12w Quad RGBW LEDs Light Fixture
Overview
A powerful fixture in a compact body, the elektraLite eyeBall outdoor is ready to solve your solutions both big and small, indoor and out.
At the heart of the elektraLite eyeBall outdoor are seven 12-watt quad LED’s, consisting of a red, green, blue, and white component. The quad LED uses diffraction lensing, eliminating “rainbow” color spots which are typical when individual LED’s are exposed in lighting a cyc or similar background. By mixing color internally, the eyeBall outdoor’s sophisticated diffraction lensing system provide true, blended, single-color output. Because of this, the white is perfectly blended and balanced, so as not to emit a blue-white so often seen in LED fixtures.
The elektraLite eyeBall outdoor is ideal for a wide variety of entertainment spaces including outdoor stages, outdoor galleries and gardens, exterior architecture features, and location shooting. It can also be used indoor where total silent operation is required.
At the center of the elektraLite eyeBall outdoor’s design is attention to detail. Leds are chosen both for reliability and color consistence. Robust power supplies are used which pass the rigors of ETL certification. DMX input/output protection is inbuilt.
A user-friendly onboard control interface allows for multiple control options in addition to DMX, including RGB, strobe, and console-free master/slave operation. Plug-and-play functionality is built right in. Static control capability can be superseded by DMX control at any time for a show presentation with static control resuming afterwards.
The eyeBall outdoor has both in and thru power and data connectors on 24” tails for easy “daisy chaining”. With a convenient, strong double yoke included standard, mounting options are limitless.
Features
- Quad LED technology; utilizing seven 12‐watt quad LEDs
- Compact design fits perfectly in 12” box truss
- Strong double yoke allows for floor mount or hanging, with low‐profile adjustment handles for a slim, tight contour
- Variable adjustable speed strobe effect, from 0.3 to 25 FPS
- IP65 housing allows for outdoor use in direct harsh environment conditions, including rain and snow
- RGBW quad LED’s, including 5600K white, for crisp, bright, balanced white light
- Compact, lightweight design ideal for a variety of locations, including small spaces and portable applications
- Up to eight fixtures can be connected on one 20A circuit, and can be run in stand‐alone or master/slave configuration, all with or without a control source, for fast,effective, and efficient operation
Specifications
Power Consumption – 100 watts (0.9A) at 120V
Electrical – multi-voltage; AC 100-240V – 50/60Hz, IEC power (in and thru) connectors
Housing – black anodized aluminum
Materials – corrosion resistant hardware
Yoke – rigid flat steel
Light Engine – seven 12-watt quad LED emitters
Refresh Rate – >1,200Hz
CRI – 92
Optics / Lensing(s) – Diffraction Lensing
Control – DMX-512A (in and thru) via 5-pin XLR
Certifications – ETL listed
Physical – L 8.5″ W 24″ H 6.3″
Weight – 12.0 lbs / 5.5 Kgs
