Product Description

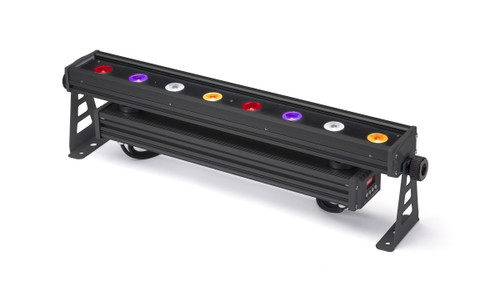

elektraLite ELBAR 25D 18-12w RGBWAI 25 LED Linear Strip
Overview
A powerful, full-featured linear strip fixture, the elektraLite ElektraBar is ready to bring rich vibrant color at a professional level. At the heart of the elektraLite ElektraBar are eighteen powerful 12-watt 6-in-1 LED’s, consisting of a red, green, blue, white, amber, and indigo component.
The elektraLite ElektraBar is designed to deliver rich, vibrant colors you expect from an LED fixture, while still providing true, brilliant, tunable white. By mixing color internally, the ElektraBar’s sophisticated diffraction lensing system provide true, blended, single-color output. Because of this, the white is tunable with the amber and white LED components, and the color range for pastel and deep blues and purples is intensified with the indigo component. Ideal for all large surfaces, the ElektraBar is ready for action and performance reliability in any environment.
Each fixture includes the following accessories:
- (2) 120° swivel trunnion / mounting foot / wall bracket
- (1) 12” power in cable
Features
- LED technology; utilizing eighteen 12‐watt 6‐IN‐1 LED’s
- Rich, vivid red, blue, green and white, with added amber for true white color toning, and indigo for pastel blending and well‐rounded color saturation
- Flicker-free on camera operation
- Trunions allow for floor mount as well as surface mounting with adjustable 120 degree swivel
- Sophisticated diffraction lensing system provide true, blended, single‐color output
- Variable speed strobe effect from 1 to 25 fps
- Up to six fixtures can be connected on one 20A circuit, and can be run in stand-alone or master/slave configuration, all with or without a control source, for fast,effective, and efficient operation
- Available glare shield for beam control and rough focusing
Specifications
Power Consumption – 260 watts (2.0A)
Electrical – multi-voltage; AC 100-240V – 50/60Hz
Housing – gloss gray aluminum
Materials – corrosion resistant hardware
Yoke – rigid flat steel
Light Engine – eighteen 12-watt LED emitters
Refresh Rate – >800Hz
CRI – 92
Optics / Lensing(s) – Diffraction Lensing
Control – DMX-512A (in and thru) via 5-pin XLR
Physical – L 39″ W 4″ H 6″
Weight – 17.0 lbs / 7.7Kgs
